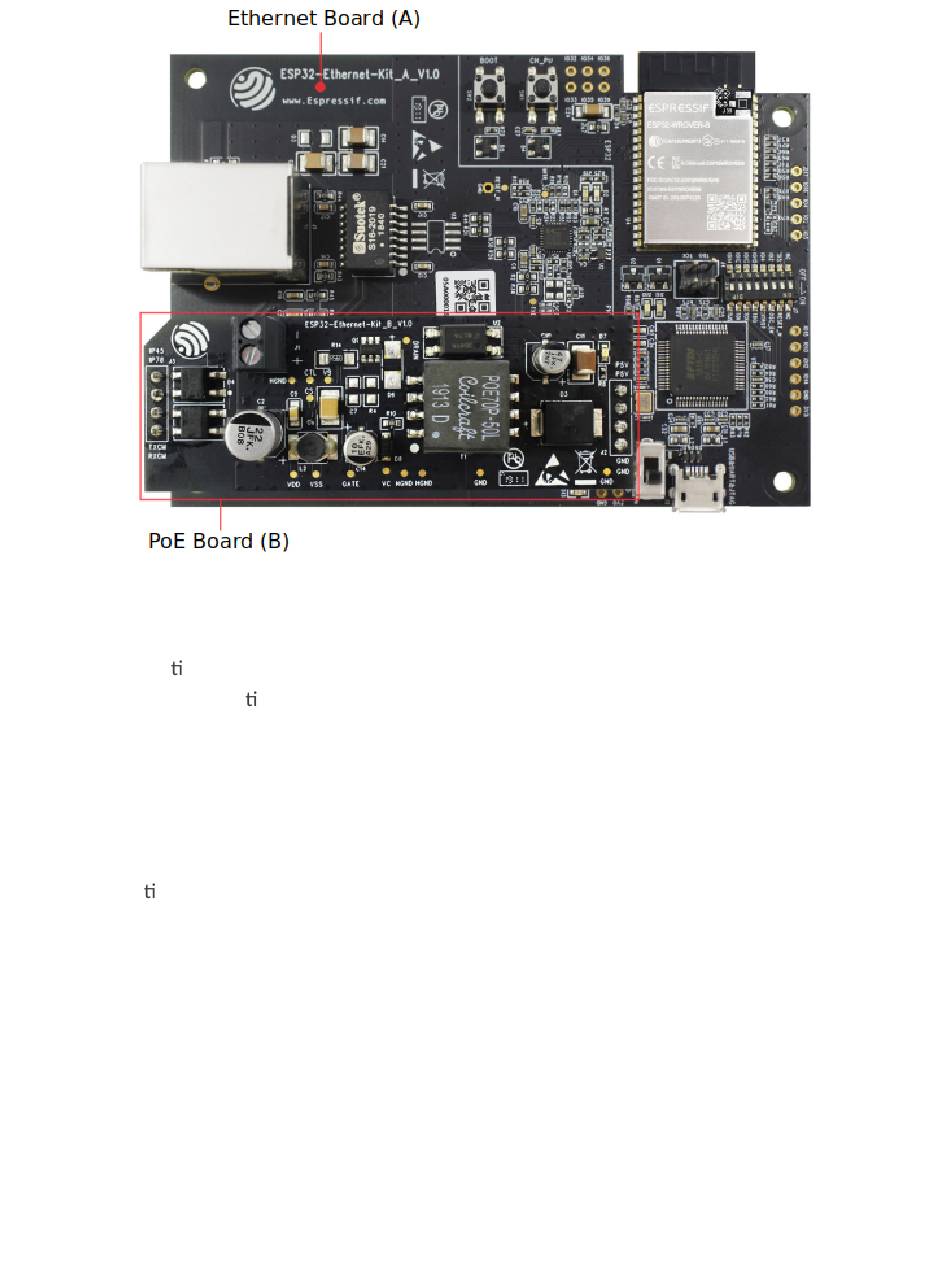

ESP32-Ethernet-Kit V1.0
For the applica on loading and monitoring the Ethernet board (A) also features FTDI FT2232HL
chip - an advanced mul -interface USB bridge. This chip enables to use JTAG for direct
debugging of ESP32 through the USB interface without a separate JTAG debugger.
Functionality Overview
The block diagram below shows the main components of ESP32-Ethernet-Kit and their
interconnec ons.
