Espressif ESP-EYE V2.1 Getting Started Manual

ESP-EYE Getting Started Guide

[中文]

What You Need

1 × ESP-EYE V2.1 board

•

1 × Micro USB cable

•

1 × PC with Windows, Linux or Mac OS

•

ESP-EYE is an ESP32-based development board that integrates a digital microphone, an

8 MB PSRAM and a 4 MB flash, while also providing an external 2-Megapixel camera.

These features make the board ideal for applications relating to face detection, face

recognition and speech recognition. Besides, the board can also support image

transmission over Wi-Fi and debugging through a Micro USB port, which enables the

development of advanced AI solutions.

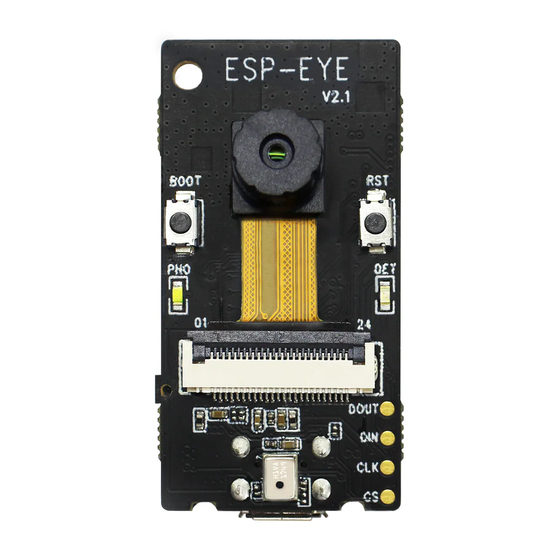

The list and figure below describe the key components, interfaces and functions of the

ESP-EYE development board:

Table of Contents

Do you have a question about the ESP-EYE V2.1 and is the answer not in the manual?

Page 1 ESP-EYE Getting Started Guide [中文] What You Need 1 × ESP-EYE V2.1 board • 1 × Micro USB cable • 1 × PC with Windows, Linux or Mac OS • Overview ESP-EYE is an ESP32-based development board that integrates a digital microphone, an 8 MB PSRAM and a 4 MB flash, while also providing an external 2-Megapixel camera.
Page 2 3D_PIFA Antenna • A 3D PIFA antenna. With the R14 resistor users can select the external IPEX antenna, whereas with the R15 resistor they can select the 3D antenna. IPEX Connector • Used for connecting the external IPEX antenna. With the R14 resistor users can select the external IPEX antenna, whereas with the R15 resistor they can select the 3D antenna.
Page 3 Provides an external clock to ESP32. Flash & PSRAM • Provides memory for storing applications. CP2102 USB-to-UART Chip • Converts the USB signals to UART signals. USB Port • Provides power supply to the whole system. LDO Power Supply • Provides the required power supply to the ESP32 chip, camera and LED indicators.
Page 4 A digital microphone for voice control functions. SPI Port • A reserved port for data transmission.
