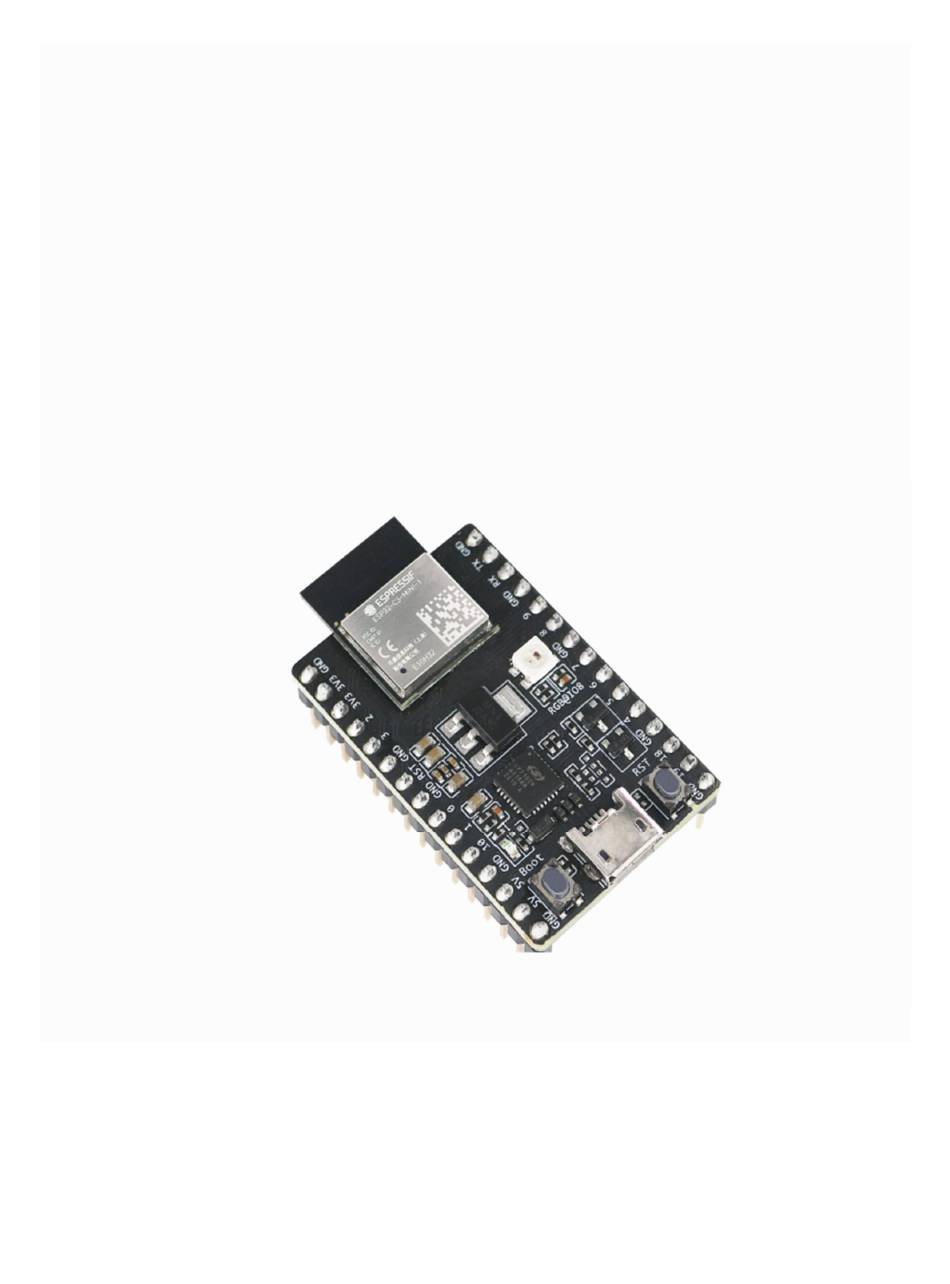

ESP32-C3-DevKitM-1
This user guide will help you get started with ESP32-C3-DevKitM-1 and will also provide
more in-depth information.

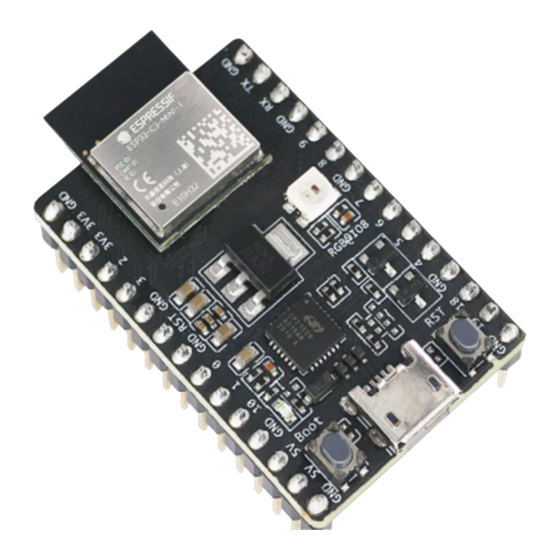

ESP32-C3-DevKitM-1 is an entry-level development board based on ESP32-C3-MINI-1,
a module named for its small size. This board integrates complete Wi-Fi and Bluetooth
LE functions.
Most of the I/O pins on the ESP32-C3-MINI-1 module are broken out to the pin headers
on both sides of this board for easy interfacing. Developers can either connect
peripherals with jumper wires or mount ESP32-C3-DevKitM-1 on a breadboard.
ESP32-C3-DevKitM-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESP32-C3-DevKitM-1 and is the answer not in the manual?

Questions and answers

Related Manuals for Espressif ESP32-C3-DevKitM-1

Summary of Contents for Espressif ESP32-C3-DevKitM-1

  • Page 1 ESP32-C3-DevKitM-1 This user guide will help you get started with ESP32-C3-DevKitM-1 and will also provide more in-depth information. ESP32-C3-DevKitM-1 is an entry-level development board based on ESP32-C3-MINI-1, a module named for its small size. This board integrates complete Wi-Fi and Bluetooth LE functions.
  • Page 2 Getting Started This section provides a brief introduction of ESP32-C3-DevKitM-1, instructions on how to do the initial hardware setup and how to flash firmware onto it. Description of Components ESP32-C3-DevKitM-1 - front Key Component Description ESP32-C3-MINI-1 is a general-purpose Wi-Fi and Bluetooth LE combo module that comes with a PCB antenna.
  • Page 3 Single USB-UART bridge chip provides transfer rates up to 3 Mbps. Bridge RGB LED Addressable RGB LED (WS2812), driven by GPIO8. Start Application Development Before powering up your ESP32-C3-DevKitM-1, please make sure that it is in good condition with no obvious signs of damage. Required Hardware ESP32-C3-DevKitM-1 ...
  • Page 4 Hardware Reference Block Diagram The block diagram below shows the components of ESP32-C3-DevKitM-1 and their interconnections. ESP32-C3-DevKitM-1 Block Diagram Power Supply Options There are three mutually exclusive ways to provide power to the board: Micro USB port, default power supply ...
  • Page 5 Name Type Function Ground 3.3 V power supply 3.3 V power supply I/O/T GPIO2, ADC1_CH2, FSPIQ I/O/T GPIO3, ADC1_CH3 Ground CHIP_PU Ground I/O/T GPIO0, ADC1_CH0, XTAL_32K_P I/O/T GPIO1, ADC1_CH1, XTAL_32K_N IO10 I/O/T GPIO10, FSPICS0 Ground 5 V power supply 5 V power supply Ground Name Type...
  • Page 6 Name Type Function I/O/T GPIO9 I/O/T GPIO8 Ground I/O/T GPIO7, FSPID, MTDO I/O/T GPIO6, FSPICLK, MTCK I/O/T GPIO5, ADC2_CH0, FSPIWP, MTDI I/O/T GPIO4, ADC1_CH4, FSPIHD, MTMS Ground IO18 I/O/T GPIO18 IO19 I/O/T GPIO19 Ground P: Power supply; I: Input; O: Output; T: High impedance.
  • Page 7 Pin Layout ESP32-C3-DevKitM-1 Pin Layout...
