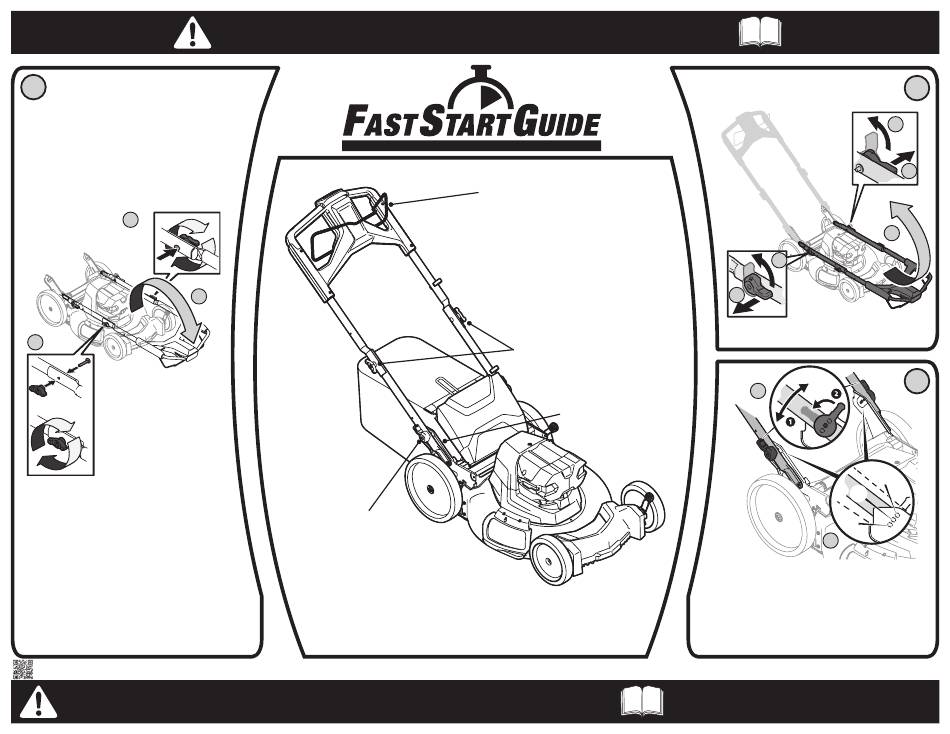

Setting-Up Handle

A. Turning counterclockwise, loosen wing
knob securing the left side upper and lower
handles together. Remove packaging with
wing knob and bolt securing the right side
upper and lower handles together.
A
B
C
B. Gently lift and
pivot the upper
handle forward.
C. Remove the wing knob and bolt from
packaging removed in STEP A. Insert bolt
through the right side upper and lower
handles. Turning clockwise, tighten the
wing knobs to secure the upper and lower
handles together.
© 2016 18XEB9C7
IMPORTANT: READ OPERATOR'S, BATTERY AND CHARGER MANUALS THOROUGHLY
AND FOLLOW THE IMPORTANT SAFE OPERATION PRACTICES BEFORE OPERATING .
READ AND UNDERSTAND ALL INSTRUCTION, WARNING, AND DANGER LABELS.
PARA INSTRUCCIONES EN ESPAÑOL, REFIÉRASE AL MANUAL DEL OPERADOR.
Handle
Adjustment
Lever
Note: Refer to your Operator's Manual
for instructions on attaching the grass collector.

Blade Control

Wing Knobs

Handle Bracket

A. Pull out the handle adjustment levers to
release the handle adjustment pins from the
handle bracket.
B
A
B. Rotate the levers up
perpendicular to the handle.
C. Carefully lift the handle up.
B
(c)
A
A. Place the handle into one of the three handle height
positions, high (a), medium (b) or low (c), located on
the handle brackets
B. Turn the handle adjustment levers until they are
parallel with the handle to release the pins and lock
them into one of the handle height holes in the
handle brackets.
