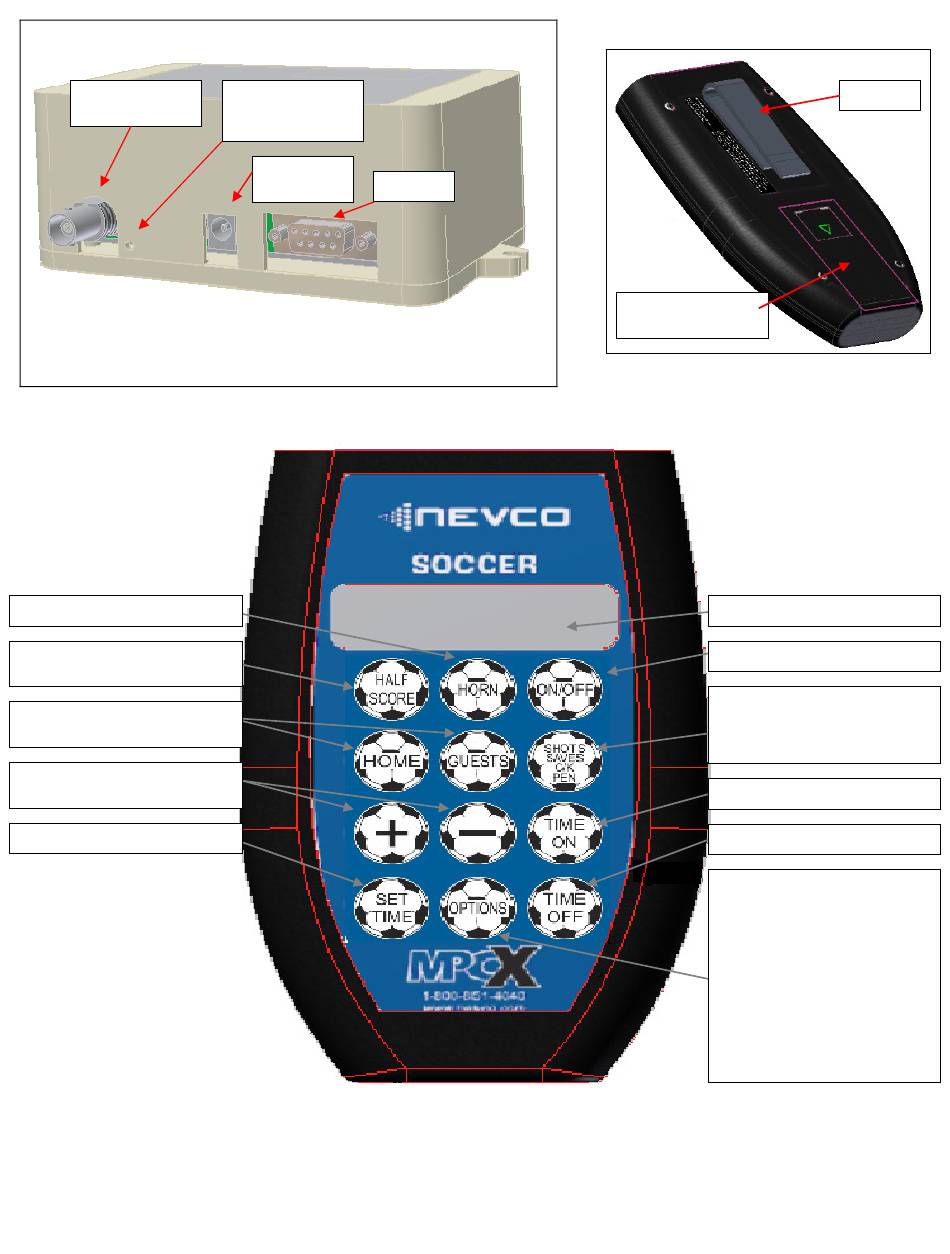

BNC Connector
(Signal out to scoreboard)
HORN
HALF / SCORE ( also functions as
Escape)
Selects HOME or GUESTS
(for scoring and shots on goal)
Add to or Subtract from the selected
feature / also used to select options
SET TIME
LED Status Indicator
(On steady = Power)
(Blinking = Signal I/O)
Power Input
(9 V DC)
Not Used
MPCX Receiver
MPCX SOCCER CONTROL (front view)
Battery Compartment
Cover (2 x AA)
MPCX CONTROL (rear view)
LCD Display (16 characters x 2 lines)
Power ON / OFF Switch
SHOTS (on Goal)
SAVES
C/K (Corner Kicks)
PEN (Penalties)
TIME ON
TIME OFF
OPTIONS key
Allows you to:
Clear Scoreboard
Set Brightness of Scoreboard
Set Direction Timer Will Count
Enable / disable Auto Horn
Check Battery Level
Check Signal Strength
Turn Security ON/OFF
Re-link Control
Select Scoreboard Type
Select Data Layout (Type G Only)
