Summary of Contents for Nevco SCD-5

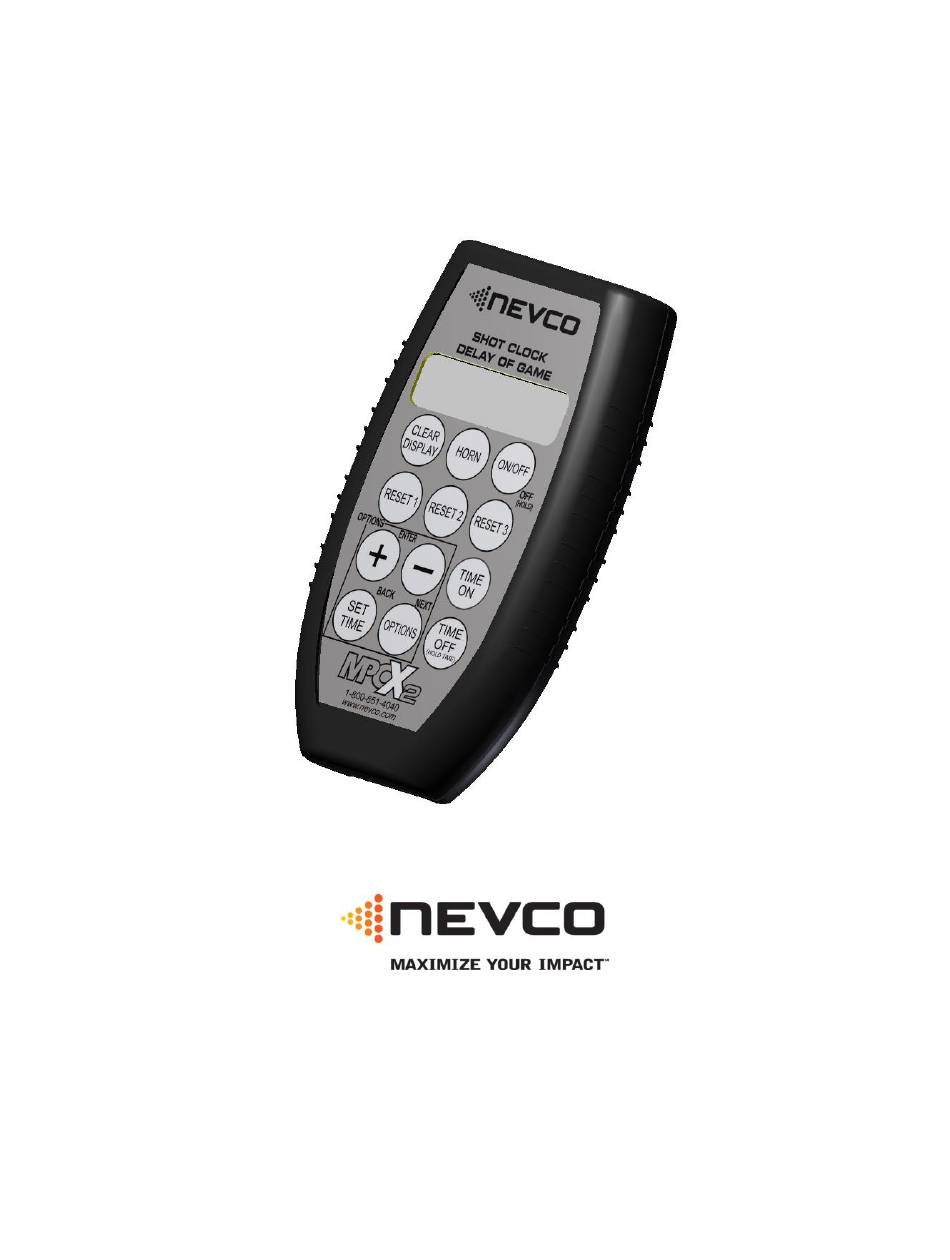

- Page 1 Scoreboard Operator’s Instructions MPCX2 SCD / DGT / Pitch Time Since 1934 Retain this manual in your permanent files Rev. 3/23/2018 135-0248...
- Page 2 May not be compatible with certain older scoreboards Thank You Thank You for choosing NEVCO. We appreciate your business. The following instructions will help you become familiar with the operation and features of the scoreboard system. Please take a few minutes to study this manual, and to practice with the control.

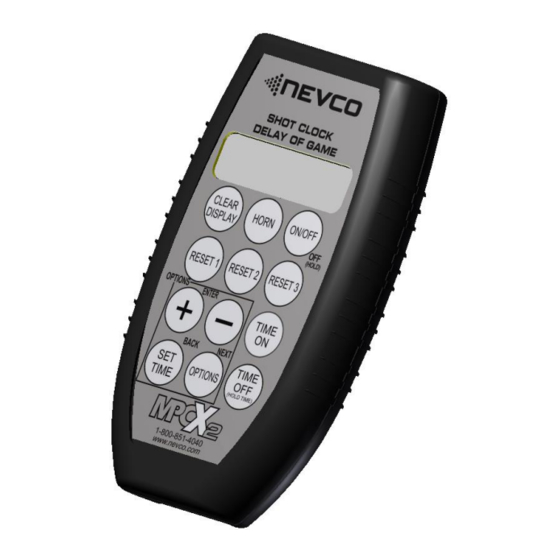

- Page 3 HORN LCD Display (16 characters x 2 lines) CLEAR DISPLAY (blanks the SCD, Power ON / OFF Switch PTD, or DGT displays) 3 Programmable RESET keys Add to or Subtract from the selected feature / also used to select options TIME ON SET TIME TIME OFF...
- Page 4 MPCX2 Receiver for use with outdoor x6xx and indoor x7xx scoreboards. MPCX2 Receiver for use with scoreboards that pre-date x6xx outdoor and x7xx indoor scoreboards. (Boards that have coax input only) NOTE: This version can also be used in addition (but not simultaneous operation) to a W6 system for dual operation by connecting the W6 receiver or wired coax of the MPC-5/6 connection to the...
-
Page 5: Table Of Contents
TABLE OF CONTENTS STARTUP GUIDE ................................... 2 ................................. 2 TART A ..................................2 TART THE IMER ..................................2 TOP THE IMER KEYBOARD FUNCTIONS ................................3 GREETING ..................................3 SCREEN MAIN ....................................4 SCREEN SET TIME ..................................5 SCREEN ............6 SING THE LOCK ONTROLLER IN... -
Page 6: Startup Guide
STARTUP GUIDE SHOT CLOCK, SEGMENT TIMER, DELAY OF GAME, and PITCH TIME models Shot Clock (models SCD-5, SCD-7, SCD-T7A, and S60-LED). Delay of Game (model DGT-5, and DGT-6). Pitch Time (model 900-9520 and 900-9620) Segment Timer (model SEG-14 and SEG-18) Note: It is assumed here that the control has been configured for the correct scoreboard type and the control has been linked to the desired receiver(s). -
Page 7: Keyboard Functions
KEYBOARD FUNCTIONS GREETING screen MPCX2 v01.00 Accessed GREETING 2.4 GHz When the control is Powered ON, the greeting showing the pressing type of control, the software version, and the frequency it is broadcasting. It will then display scanning for the remaining Scanning time until the control establishes communications with its ON/OFF... -
Page 8: Main Screen
MAIN screen Accessed MAIN R1: 15 Time:OFF The main screen shows the reset time for the Reset 1 key, the pressing R2: 30 R3: 35 Timer Status, and the reset time for the Reset 2 and Reset 3 keys. Press any one of these Reset keys to immediately load its value into the timer. -
Page 9: Set Time Screen
SET TIME screen Accessed SET TIME Set Time: This screen is for setting a special miscellaneous time into the pressing SCD/DGT Time:20 timer. It also provides a way to program the desired times into each of the three RESET keys. These keys can then be pressed at any time to instantly load the timer with each keys reset value. -
Page 10: Using The Shot Clock Controller In Conjunction With A Basketball Controller
Using the Shot Clock Controller in Conjunction with a Basketball Controller The shot clock controller can be used in conjunction with a basketball controller. To do this there must be a basketball controller in the same network group as the shot clock. When used together the shot clock time will decrement when the game time is decrementing. -
Page 11: Options Menu
Options Menu Several option settings are available to fine tune the scoreboard system to your needs. These settings are saved in the control. They are remembered even if the control is turned OFF or the batteries removed. When a control turns ON the scoreboard, these settings are sent to the scoreboard and are used to define how it operates. - Page 12 Allows you to set the direction the timer will count. Time Up/Down Note: In baseball the Time Up/Down control is in the At Bat / Time (+)Up (-)Down button. Allows you to select the Brightness Level of the Brightness scoreboard. (High or Low) (+)HIGH (-)LOW Allows you to enable or disable the automatic horn.
-
Page 13: Advanced Options
This menu option allows you to access settings that affect how the control Enter Code to operates. Generally, these settings need not be changed and should only be Change Settings changed by an experienced operator or under direction from the Nevco Service Department. Press the following key sequence: HOME... -
Page 14: Mpcx2 Control / Receiver Setup Procedure
MPCX2 Control / Receiver setup procedure Before using the MPCX2 control it must be mated to the receiver(s) and set for the model of scoreboard that you wish to operate. Mating a New Control to Receiver(s) Record the receiver(s) ID’s located on the receiver box before Step 1. - Page 15 3502, 3504, 3514, 3515, 3516, 3520, 3525, 3534, 3550, 1632, 9605, 9505, 9715, 9515, 3400, 3402, 3404, 3414, 3415, 3416, 3425, 3434, 9405, 9550, SCD-5, SCD-7, S60-LED, S60, SCD-4. And for any sport except Soccer: 2700, 2710, 2715, 2740, 2750, 2760, 2770, 2775, 2600, 2610,...
- Page 16 Type F Type G 3656, 3657 Supports Intelligent Captions 4455, 4465, 4755, 4555, 4565, 4765, 9710, 9715 Type H SCD-5, SCD-7A, SCD-T7A, SSC-7, SSC-T5, SSC-T9, S60-LED, S60, Shot Clock (+) SCD-4 DGT-6 Delay Of Game (+) SCD / DGT DGT-5, DGT-2, 3020...
- Page 17 Wrestling, or Hockey 27xx, 26xx, 25xx, SEG-14, SEG-18, 9710, 9510, 200, 230, SSC-7, SSC-T5, SSC-T9, SCD-7A, SCD-T7A, SCD-T5, SCD-5, SCD-4, Type A 9715, 9515, S60-LED, S60, 4755, 4555-D, 24xx, 9410, 3500, 3502, 3504, 3514, 3515, 3516, 3520, 3525, 3534, 3550, 36xx,...
-
Page 18: Troubleshooting Chart
Scoreboard connected to MPCX2 is Control is not configured for correct Reconfigure the control (see options displaying data in the wrong places, scoreboard model series menu) incorrect data, or horn constantly sounds. If the problem persists please contact the Nevco Service Department. 800-851-4040 https://support.nevco.com/contact/... - Page 19 LED STATUS The receiver has a red status LED next to the RJ12 and Ethernet jack. It can be used to diagnose the status of the MPCX2 receiver. LED Status MPCX2 Connection Status The receiver is powered on, but a connection attempt has not yet been made, or a connection Solid On attempt was unsuccessful.
- Page 20 —Consult the dealer or an experienced radio/ TV technician for help. The user is cautioned that changes and modifications made to the equipment without the approval of Nevco could void the user’s authority to operate this equipment. This class B digital apparatus meets all requirements of the Canadian Interference- Causing Equipment Regulations.
