- Page 1 Scoreboard Operator’s Instructions MPCW-7 Control Some features on the keyboard overlay may not be included on the particular model being operated. Since 1934 2/13/2021 135-0222R...
- Page 2 HOCKEY Thank You Thank You for choosing NEVCO. We appreciate your business. The following instructions will help you become familiar with the operation and features of the scoreboard system. Please take a few minutes to study this manual, and to practice with the control.

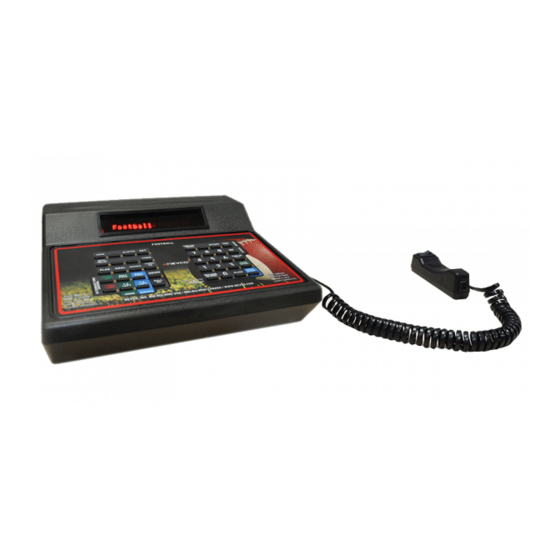

- Page 3 Figure 1 – MPCW Control (front view) MPCW Control Can operate scoreboards for a wide range of sports and features. Power Supply 9 V DC (included with the control) Overlay Fits on top of control to label the keys (included with system) A TCS-7 time control switch is included with each control.
- Page 4 Figure 2 – MPCW Control (rear view) MPCW Control Universal – to change sports, change the Overlay and enter the new Model Code. Power Supply 9 V DC (included with control) Overlay For the sports used with the scoreboard Coiled Cord Stretches to over 4 ft.
-
Page 5: Table Of Contents
TABLE OF CONTENTS SETUP ............................. 1 ............................ 1 PORT ........................1 COREBOARD ODEL ............................2 IRELESS ........................3 REATING A ROFILE ............................ 4 QUICK START GUIDE ........................ 5 KEYBOARD FUNCTION ......................6 TIME FUNCTION ......................... 7 STANDARD TIME FUNCTIONS ....................7 TIME CONTROLS ........................ - Page 6 Interval Horn .......................... 20 Interval Time .......................... 20 ..........................20 LOCKS Edit Shot Clock ........................21 ST > MT Blank ........................20 Set SCS1 Time ........................20 Set SCS2 Time ........................20 HHS F ........................... 22 UNCTION Goal Light ..........................22 Shot Clock ..........................
- Page 7 24 Hour Time ......................... 38 PROFILES ..........................39 Load Profile ..........................39 Save Profile ..........................40 Default Lock ........................... 40 Backup / Restore ........................40...
-
Page 8: Setup
Scoreboard Model The scoreboard model setting must be set to match the scoreboard being operated. It is highly recommended to create a profile to save this setting if the MPCW-7 is going to be used to control multiple board models. -
Page 9: Wireless
Wireless • The MPCW-7 can operate one or more selectable wireless receivers depending on the customer’s need. • The receivers can be linked or unlinked depending on the operational requirements at game time. It is strongly recommended to save wireless settings in each profile used. -
Page 10: Creating A Profile
The letters are on the right side of the keys. • If the wrong profile is entered press NO/CANCEL and begin again • 5. Press MPCW-7 will save profile and will display. 1-MY PROFILE_ 1-MY PROFILE 6. Press to verify profile, MPCW-7 will display. -
Page 11: New Game
START UP New Game Scroll Profiles changes the MPCW-7’s input and output to operate a new game or sport. Profiles settings are set with the last profile loaded or saved in that sport. To start a new game or sport: Press the MPCW-7 will display. -
Page 12: Quick Start Guide
QUICK START GUIDE With the scoreboard on and the control on the main time screen you are ready to set the time for the first period of play. Main Time Screen: 00:00.0▼ Per:1 Current Time Time Direction Period Set the play clock to 20 minutes Press Time: MM:SS.s◄... -
Page 13: Keyboard Function
NO key Use to cancel an operation, reset changes in the process of making them, exit a sub-options menu, and to send the MPCW-7 back to the screen that displays the name of the sport being played. SET key Use ahead of a function key to directly enter a value, set times, and correct errors. -
Page 14: Time Function
2. Period – A number to keep track of which period the game is on. 3. Time Out – Time Out consists of 5 settable timers used to time a time out. 4. Time Of Day – The MPCW-7 will keep track of time of day. TIME CONTROLS The standard keys used for time control. -
Page 15: Time Of Day Key
TIME OF DAY Key Press TIME OF DAY to verify the time set within the control and display the time on the scoreboard. MAIN TIME • Is the time displayed on the scoreboard to keep track of game time. • Can count down or up. To change direction of main time refer to the OPTIONS section of this manual To Start and Stop Main Time 1. -
Page 16: Period
2. Press the number corresponding to the Period. 3. The Period will be set and the MPCW-7 will then navigate to the main time screen. TIME OUT • Time out is functionally a set of timers used to organize time outs in a game. -
Page 17: To Conclude A Time Out Early
There may be a desire to skip to the warning time and/or conclude the time out early. To do this while the time is counting: First, to use this function the MPCW-7 must be on the time out timer screen. To reenter the time out screen press the TIME OUT TIMER key. -
Page 18: In-Game Stats
1. The # represents numerical values in the following examples 2. The “+” indicates the MPCW-7 is in add mode. The side the “+” is on is what side is being added to. 3. The “◄” or the “►” indicates the MPC-7 is in set mode. The side the “◄” or the “►” is on is what side is being set. -
Page 19: Score
SCORE Press HOME SCORE to enter the home score ADD mode ##+ Score ## The control will display Press GUEST SCORE to enter the guest score ADD mode. ## Score +## The control will display Adding to Score 1. Press Score Score 2.
