2. How to Use SVT17M13

2. How to Use SVT17M13

2.1 To Perform Free-Run

1) Make sure that a jumper plug is inserted to jumper switches J4 (VDDMCU) and J9 (VBUS) for setting the
power supply for the S1C17M13 (MCU).
2) Connect between the SVT17M13 and the PC using a mini USB cable. The SVT17M13 is powered by the
USB power (+5 V) supplied from the PC.
J4 (VDDMCU) location
Mini USB connector

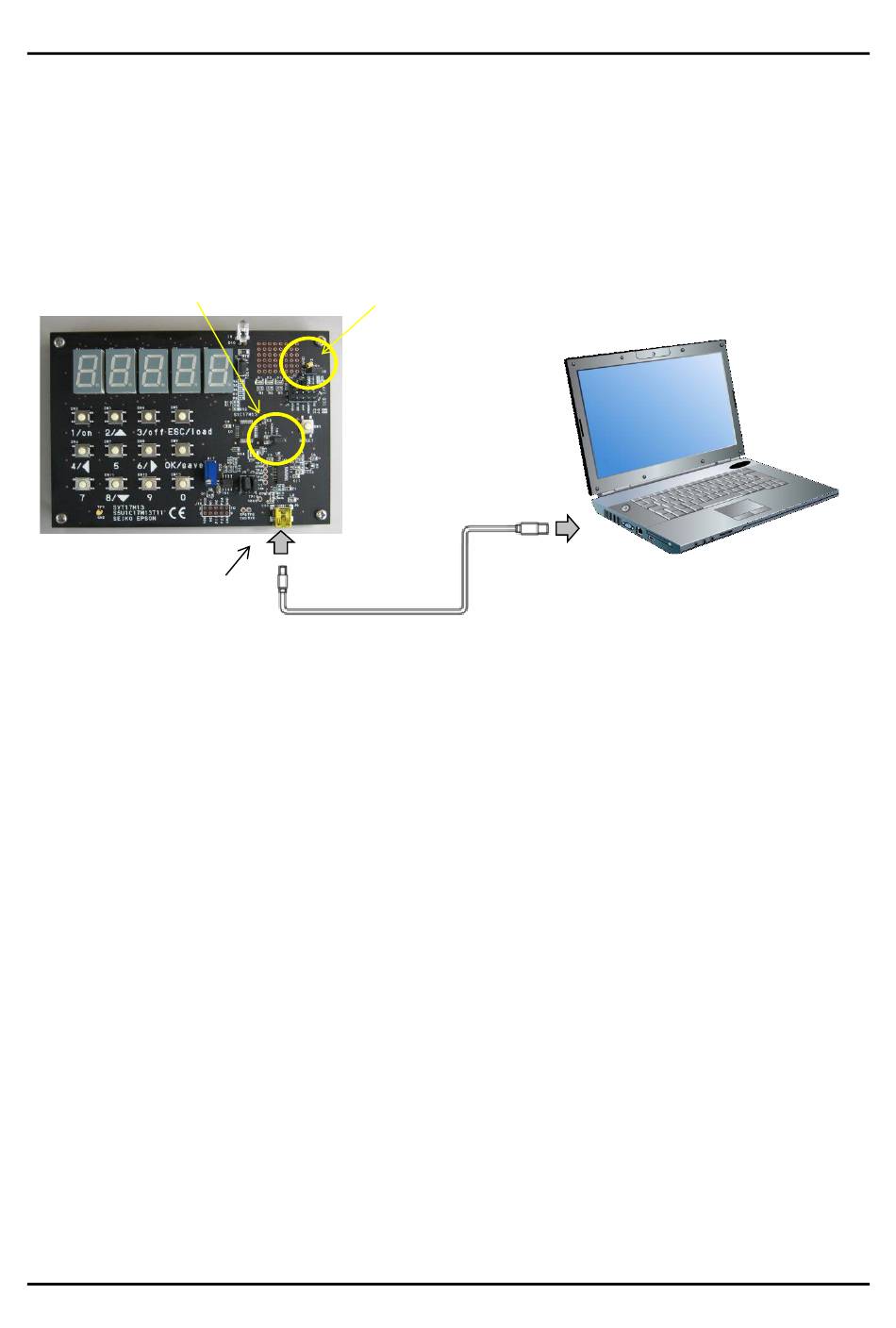

Figure 2.1 USB Connector Location and Connection with PC
3) When the SVT17M13 is connected to the PC for the first time, the driver for the USB-serial bridge chip
mounted on this board will automatically be installed to the PC. Wait for the installation to complete.
Note!
The SVT17M13 operates with a +5 V power supply. Supply power to this board by connecting to a PC or
using a USB AC adapter.

2.2 To Debug Software

1) Perform the same operations as in Section 2.1 to supply +5 V power to the S1C17M13 (MCU) from the PC.
2) Connect the SVT17M13 to a Seiko Epson emulator, ICDmini Ver. 2 or ICDmini Ver. 3, as shown below.
2
J9 (VBUS) location
Seiko Epson Corporation
USB port
S5U1C17M13T1 Manual
(Rev.2.0)
