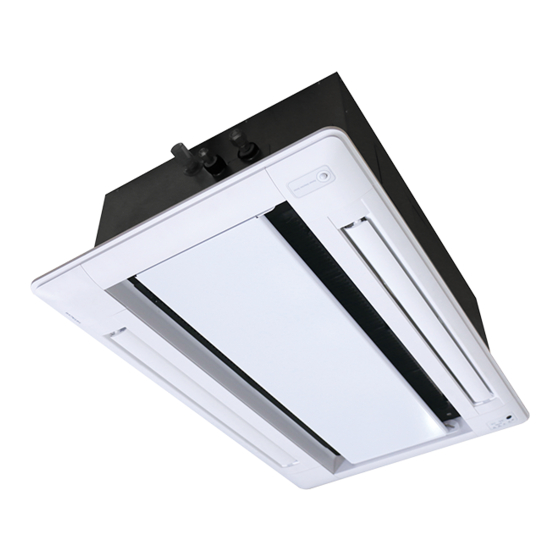

- Page 1 AVL-27UXJSGA AVL-07UXJSGA AVL-09UXJSGA AVL-30UXJSGA 2-Way AVL-12UXJSGA AVL-38UXJSHA Cassette Type AVL-48UXJSHA AVL-14UXJSGA AVL-18UXJSGA AVL-54UXJSHA AVL-24UXJSGA P01136Q ORIGINAL INSTRUCTIONS...
- Page 3 Manufacturing number and manufacturing year: refer to model Nameplate. Notes: This declaration becomes invalid, if technical or operational modifications are introduced without the manufacturers consent. Hisense Italia S.r.l. is authorised to Compile the Technical Construction File. Ad. : Via Montefeltro 6A, 20156 Milano. Name, Surname Position/ Title...
- Page 4 Hisense Hisense Hisense...
-
Page 5: Important Notice
To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. Hisense's Hisense's... - Page 6 Section2 Installation & Maintenance Manual...
- Page 8 The appliance is not to be used by children or person with reduced physical, sensory or mental capabilities,or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised that they do not play with the appliance.
- Page 9 。，t 。 3. Rem ntrol Switch ACIUTION from the ai tempe ture of the sensor due to 「 阳 。 the difference of the sensing location. 。 。 Press switches nly with fingers. D 。 uching Type Switches press switches by any ther item, as it may This control switch is of touching type.
- Page 10 Regarding the instructions of Wired Remote Control Switch or Wireless Remote Control Switch,read the operation manual attached to the control switch.
- Page 11 outlet Step 1 Remove the air returning decorative plate with both hands,as shown below. Step 2 Turn the buttons along edges of filter screen to Outlet make them parallel to the slot, and then remove the screen.
- Page 13 Wrench R410A * To avoid damage to the resin covers,before lifting or moving the indoor unit,put a cloth on the resin covers.
- Page 14 Air Panel(optional) Indoor Unit Panel Selected 07~30 HP-C-NA 38~54 HP-F-NA (small) (big) (small) (big) (big) (small) For Power Wiring and Cable Clamp Transmission Wiring...
- Page 15 500mm Min. 500mm Min. 100mm Min. Piping 500mm Min. Connection 500mm Min. 100mm 500mm Min. Min. 3000mm Min. 500mm 100mm Min. Min. Piping 500mm Min. Connection Distance from Wall Side 1,500mm Min. 100mm Min. Piping Connection Side 500mm Min. 1500mm Min. 1,000mm Min.
- Page 16 4-Suspension Bolts M10 or W3/8(Field-Supplied) Nut(Field Supplied) Washer(Accessory) Surface of Ceiling *indicates the dimension between lower face of A(Dimension of Opening) indoor unit and surface of ceiling. （mm) Optional Panel B(Dimension of Suspension Bolts) Gas Pipe Connection Liquid Pipe Connection Drain Pipe Connection Piping Position of...
- Page 17 Drain Pipe Fixing Bracket of Panel Adjust four corners of the system with a plastic hose filled with water Suspension Bolt Transparent Plastic Hose Bottom View Suspension Piping Bracket Connection Side Drain Pan Indoor Unit Suspension Bolt Ceiling The fixing bracket is panel Connected to Ceiling 4.3.4 Indoor Unit...
- Page 18 Pipe Diameter (a) Flaring Diameter 12.7mm 24~54 (mm) Gas Pipe Liquid Pipe Drain Pipe Panel(optional) 70 Gas Pipe 70 Liquid Pipe 65 Drain Pipe Flaring Dimension Perform the flaring work as shown below.
- Page 19 Drain Hose Horizontal or Upward Slope Drain pipe must be installed horizontally or in upward slope to prevent occurrence of air column, or otherwise water will flow from rear of the equipment to cause leakage or abnormal noise when the equipment is shut down. (a) Use the drain pipe and hose clamp provided by the manufacture.
- Page 20 ● Turn OFF the main power switch to the indoor unit and the outdoor unit and wait for at least 3 minutes before electrical wiring work or a periodical check is performed. ● Check to ensure that the indoor fan and the outdoor fan have stopped before electrical wiring work or a periodical check is performed.
- Page 21 (a) Remove electrical box cover. Pipe (b) Thread wires through the wiring hole in the Baffle equipment to respectively connect power terminal Wiring board, transmission and remote control terminal Port board. (c) Fix the wire harness from connecting port to electrical box with cable clamp to prevent it from scratched by edge of container of other Base Board...
- Page 22 Maximum Current EN60 335-1 EN60 335-1 07 30 0.9A 0.75mm 1.8A 38 54 The wire sizes marked with *1 in the above table are selected at the maximum current of the unit according to the European Standard, EN60335-1.Use the wires which are not lighter than the ordinary polyvinyl chloride sheathed flexible cord (code designation H05VV-F).
- Page 23 DSW5(Refrigerant Cycle No. Setting) RSW2(Refrigerant Cycle No. Setting) DSW3(Capacity Code Setting) H-LINK II. DSW7(Fuse Recover) H-LINK II. DSW6(Unit RSW1(Unit No. Setting) No. Setting) DSW9(Optional Function Setting) DSW4(Unit Mode Code Setting) (6) Optional Function Setting(DSW9) No setting is required Setting positions before shipment are all OFF Setting the model code H-LINK II.
- Page 24 1084803 Qingdao Hisense Hitachi Air-conditioning Systems Co., Ltd. Add: 218, Qianwangang Road, Economic & Technical Development Zone, Qingdao, P.R. China http://www.hisense-vrf.com E-mail: export@hisensehitachi.com P01136Q 2018.03...
