Appendix
1 2
Jumper Position 1
= no Terminaltion
For additional information, please refer to page 11 under »Wiring the Interfaces – Word Clock«.

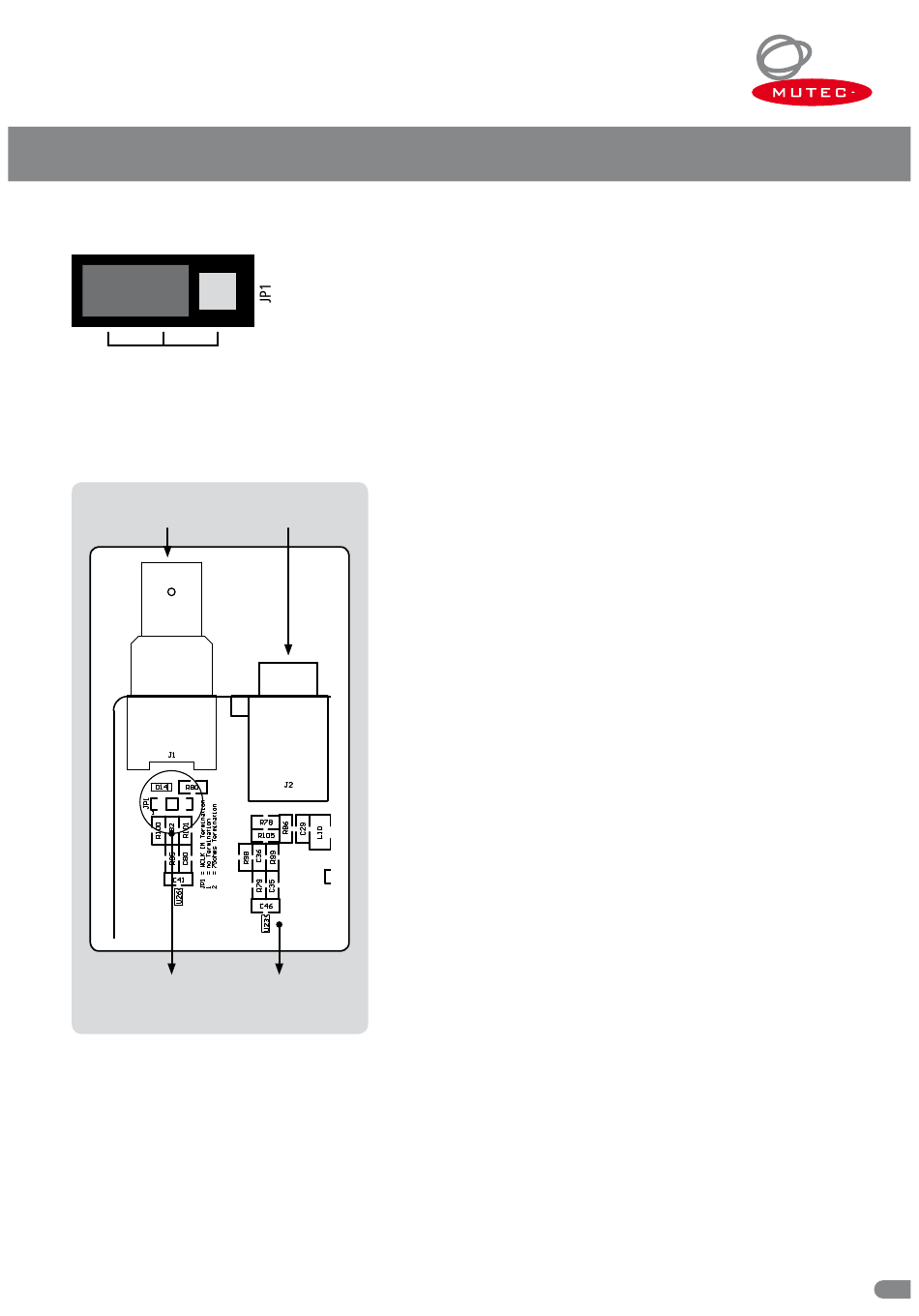

Inside View – Word Clock Termination
Word Clock
Input
Termination
3-pin socket
JP1
When the MC-3+ Smart Clock is shipped, the BNC-based Word Clock input connector is
terminated internally with 75 Ω. Therefore, one jumper is put on two pins - Position 2 - of
the 3-pin socket JP1.
S/P-DIF
Inputs
MC-3+
Mainboard
PCB
