Control Elements and Terminals

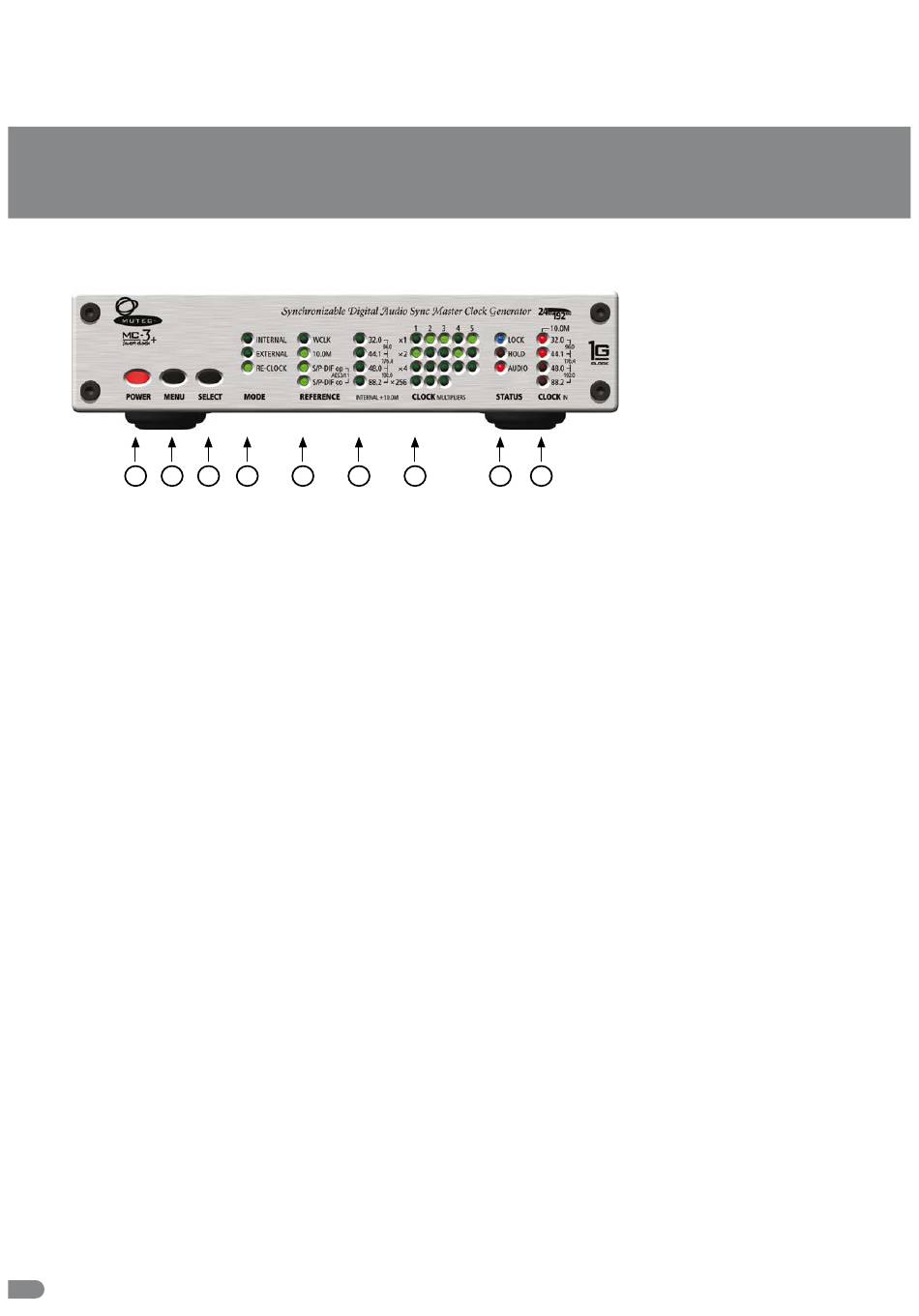

MC-3+ Front Panel
1 2 3 4 5 6 7 7 7
1 »POWER«
This red LED lights up when the unit is switched on with the rear panel power switch.
2 »MENU«
Use this key to access the different menus.
3 »SELECT«
Use this key to select a function within a specific menu.
4 »MODE«
This function menu allows to select the clock references for internal and external synchronization as well as the reference for
externally-referenced digital audio re-clocking. All three LED rows act in functional dependence.
5 »REFERENCE «
INTERNAL + 10.0M
This function menu allows to select the clock references for internal or external synchronization and the reference for synchro-
nous and asynchronous digital audio re-clocking.
6 »CLOCK «
MULTIPLIERS
This function menu lets you determine the factor by which the basis clock rate is multiplied additionally. Settings can be made
individually for every pair of Word Clock outputs (»1-3«) as well as for the AES3 (»5«) and S/P-DIF (»4«) outputs.
7 »STATUS«
This menu indicates various signal status of the incoming reference clock or digital audio signal.
8 »CLOCK «
IN
This menu indicates the clock rates of the incoming reference clock or digital audio signal.
