Multi-Point to Multi-Point
For Multipoint setup, each transmitter/receiver grouping must be on its own VLAN.
Default TX settings IP: 192.168.168.55 - MAC Address: 00:0b:78:00:60:01
Default RX settings IP: 192.168.168.56 - MAC Address: 00:0b:78:00:60:02
Assign an IP address to the computer :
Control Panel → Network Connections → Local Area Connections Status → Properties → Internet Protocol (TCP/IP).
Step 1
Type in IP address field: 192.168.168.X (0-255) and Subnet mask : 255.255.255.0. Press OK to save the configuration.
Please note: The IP address of PC should be different from the IP address of TX and RX.
Use an Ethernet Cable to connect the computer and the transmitters/receivers.
Click: Start Menu → Run → input ''CMD'' → input ''ping 192.168.168.55 ('56' for receiver)''
You will receive a reply if the connection is established.
Step 2 Go to your browser and type the first transmitter/receiver IP in the address field (192.168.168.55 ('56' for receiver))
A control page will open up.
Click ''System'' on the left menu bar.
Here you can set your IP and subnet mask and MAC address for each transmitter/receiver. Repeat this step for each transmitter/
receiver using the example settings below. IP and MAC will increase last byte by 1 for each transmitter/receiver
(192.168.168.56<---last byte)
IP:
Transmitter 1 Subnet:
MAC:
IP:
Receiver 1
Subnet: 255.255.255.0
MAC:
IP:
Transmitter 2 Subnet:
MAC:
IP:
Receiver 2 Subnet:
MAC:
Step 3 Click 'Apply' to save these settings

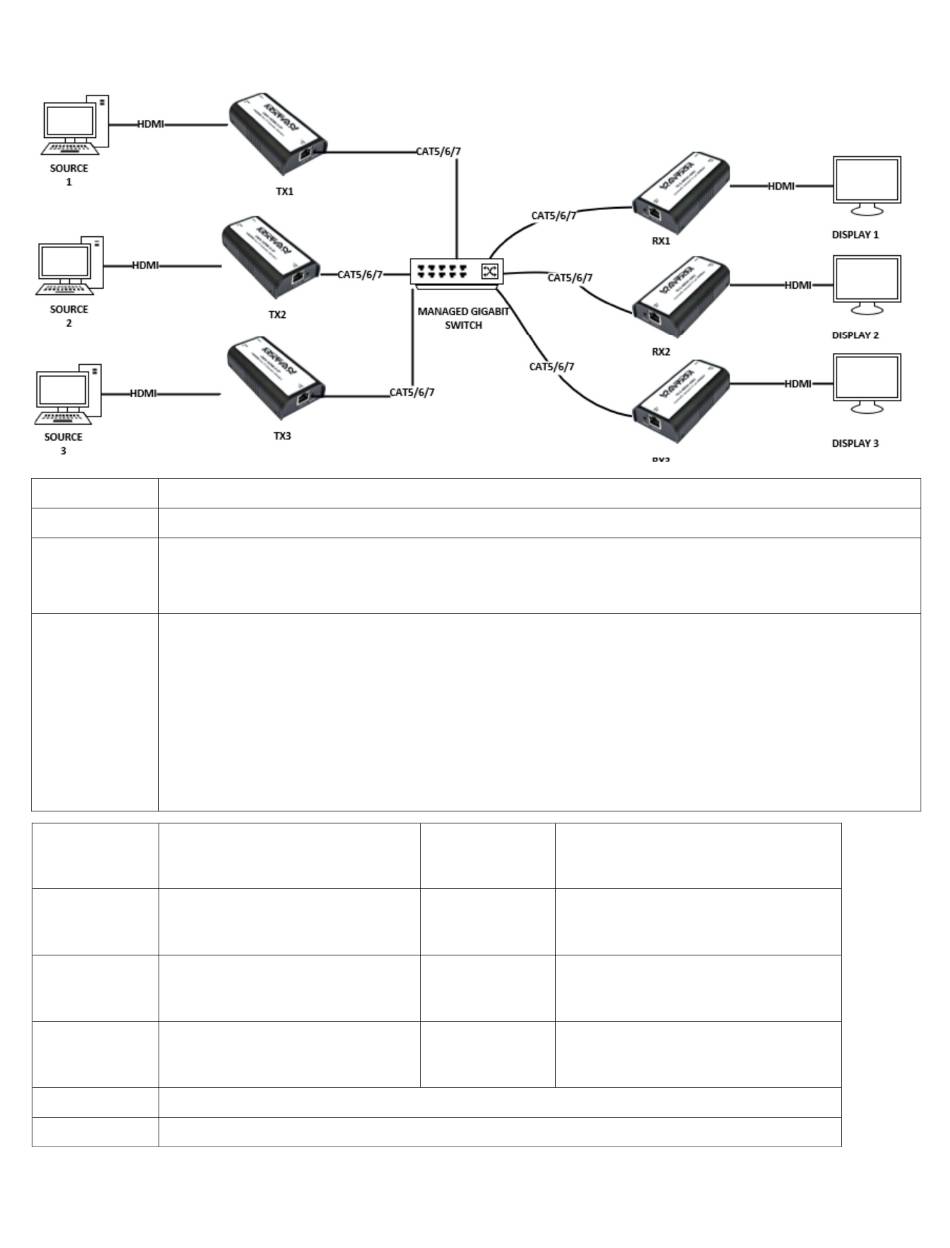

Step 4 Connect transmitters and receivers like the diagram above using a LAN switch
192.168.168.55
255.255.255.0
00:0b:78:00:60:01
192.168.168.56
00:0b:78:00:60:02
192.168.168.57
255.255.255.0
00:0b:78:00:60:03
192.168.168.58
255.255.255.0
00:0b:78:00:60:04
