G3 Series EtherNet/IP
DLR Technical Manual
6.1

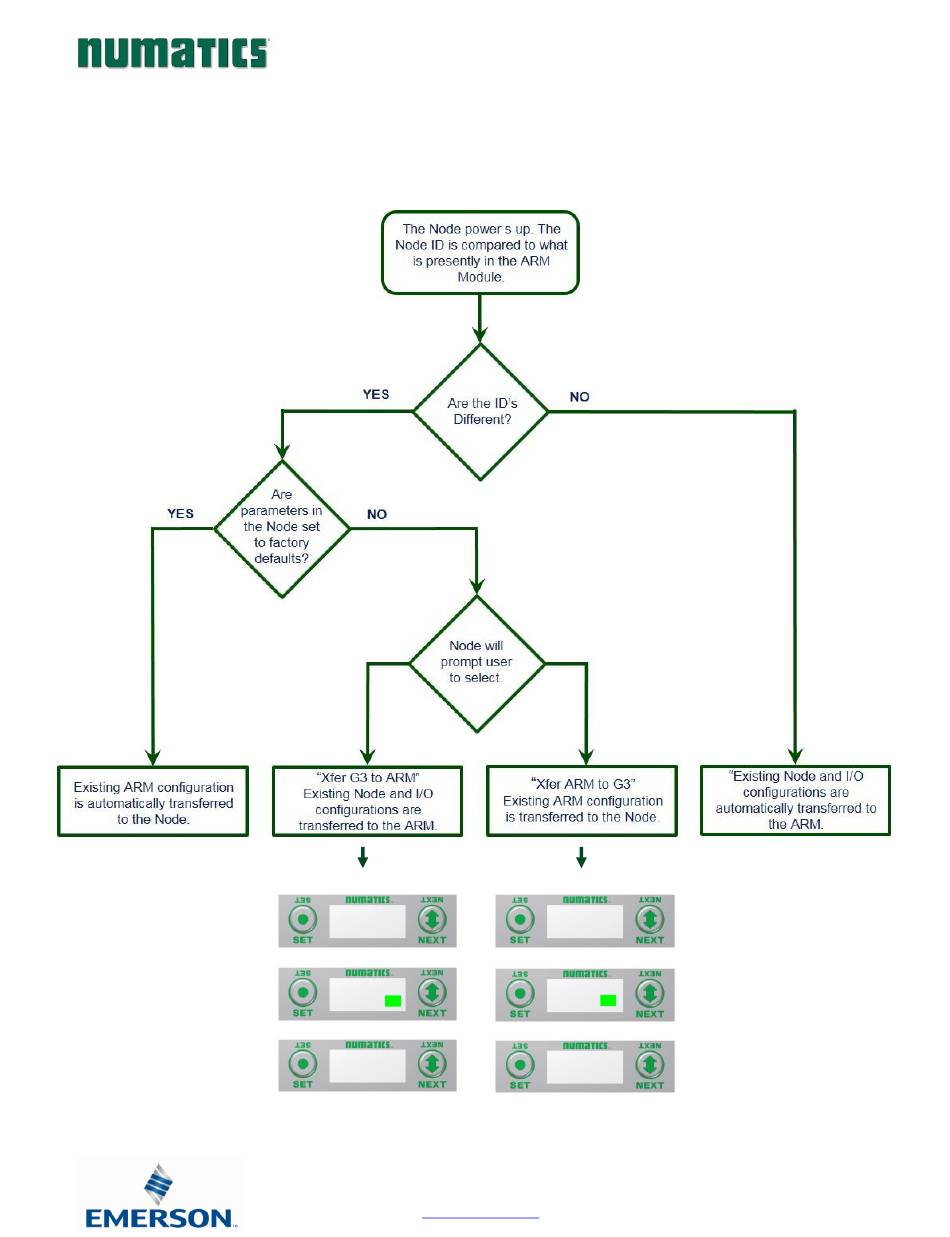

ARM process flowchart

CONFIG ERROR
CONFIG ERROR
XFER ARM TO G3
XFER G3 TO ARM
CONFIRM XFER
CONFIRM XFER
ARM TO G3 YES
G3 TO ARM YES
RESETTING
RESETTING
TDG3EDM1-6EN
3/18
Subject to change without notice
6-50
www.asco.com/g3
