Wen 56380i Replacement Manual

If replacing any parts, use only genuine replacement parts purchased from WEN Products. Use of replacement
parts not sold by WEN Products will void your warranty and could lead to decreased performance or injury.
TOOLS NEEDED
•
Phillips-head screwdriver
•
7mm combination wrench
ENSURE THAT THE ENGINE IS COOL BEFORE BEGINNING ANY MAINTENANCE OR REPAIR WORK. FOLLOW
ALL SAFETY PROCEDURES LISTED IN YOUR OWNER'S MANUAL. USE COMMON SENSE. AVOID INJURY.
REMOVING THE OLD MULTI-METER
1. Disconnect the negative battery wire from the battery according to the instructions in the manual.
2. Disconnect the spark plug boot from the spark plug according to the instructions in the manual.

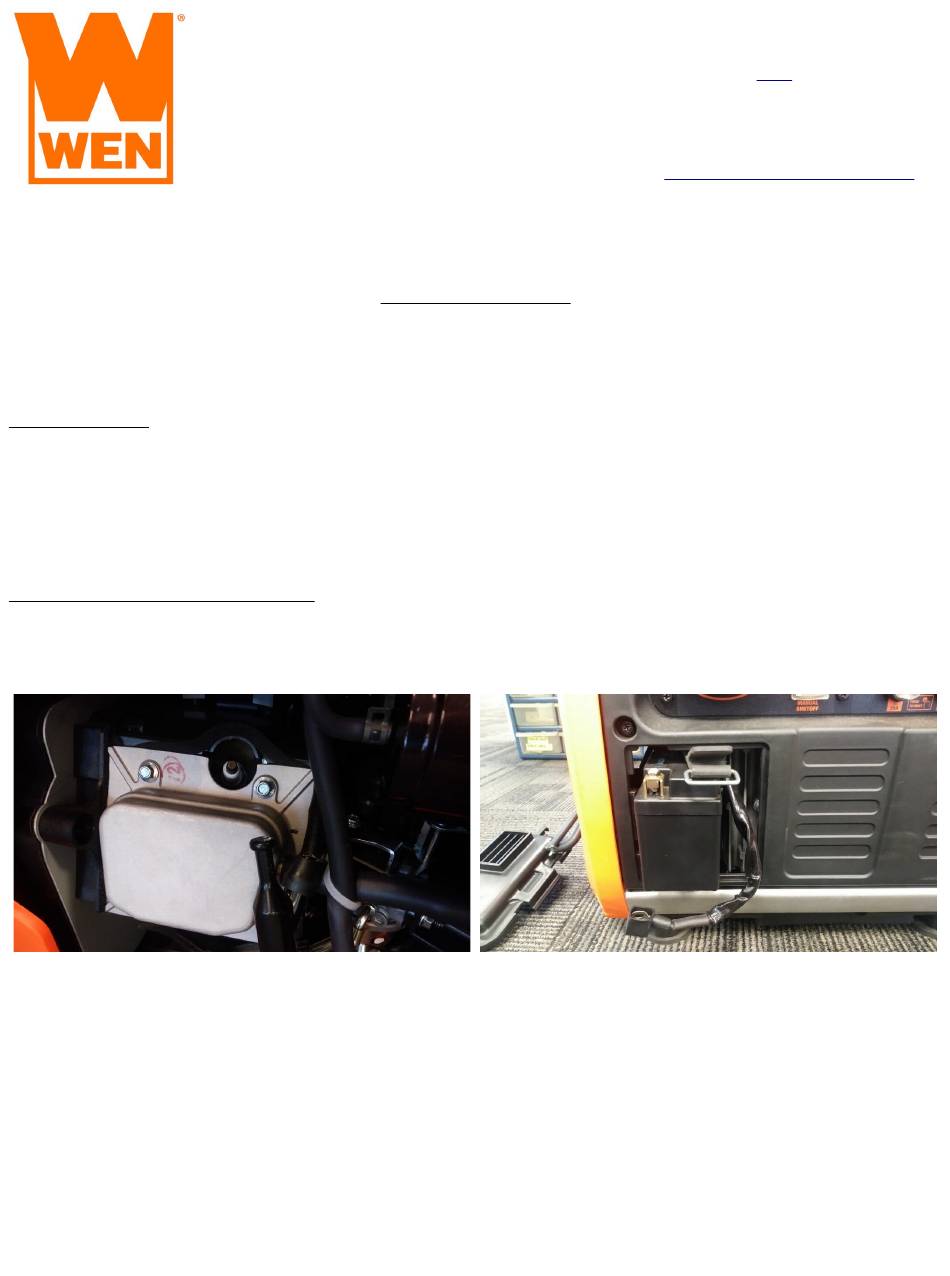

Fig. 1: Spark plug boot disconnected.
3. Remove the six screws from around the outside of the panel (red arrows, Fig. 3 below), as well as the screw
from the center of the 3-in-1 knob (blue arrow, Fig. 3 below).
This is a guide to replacing the multi-meter for your WEN 56380i Inverter Generator. This
guide is best used in conjunction with the 56380i manual, included as a physical copy with
your unit and available on the WEN website page for the 56380i (link here), by clicking "Click
here to view the product manual".
If at any point you need assistance, have questions, or want to order parts, call WEN customer
service at 1-800-232-1195, M-F, 8-5 Central Time, or email techsupport@wenproducts.com.
Tools needed
Removing the old multi-meter
Installing the new multi-meter
TABLE OF CONTENTS
Fig. 2: Negative battery wire disconnected.
