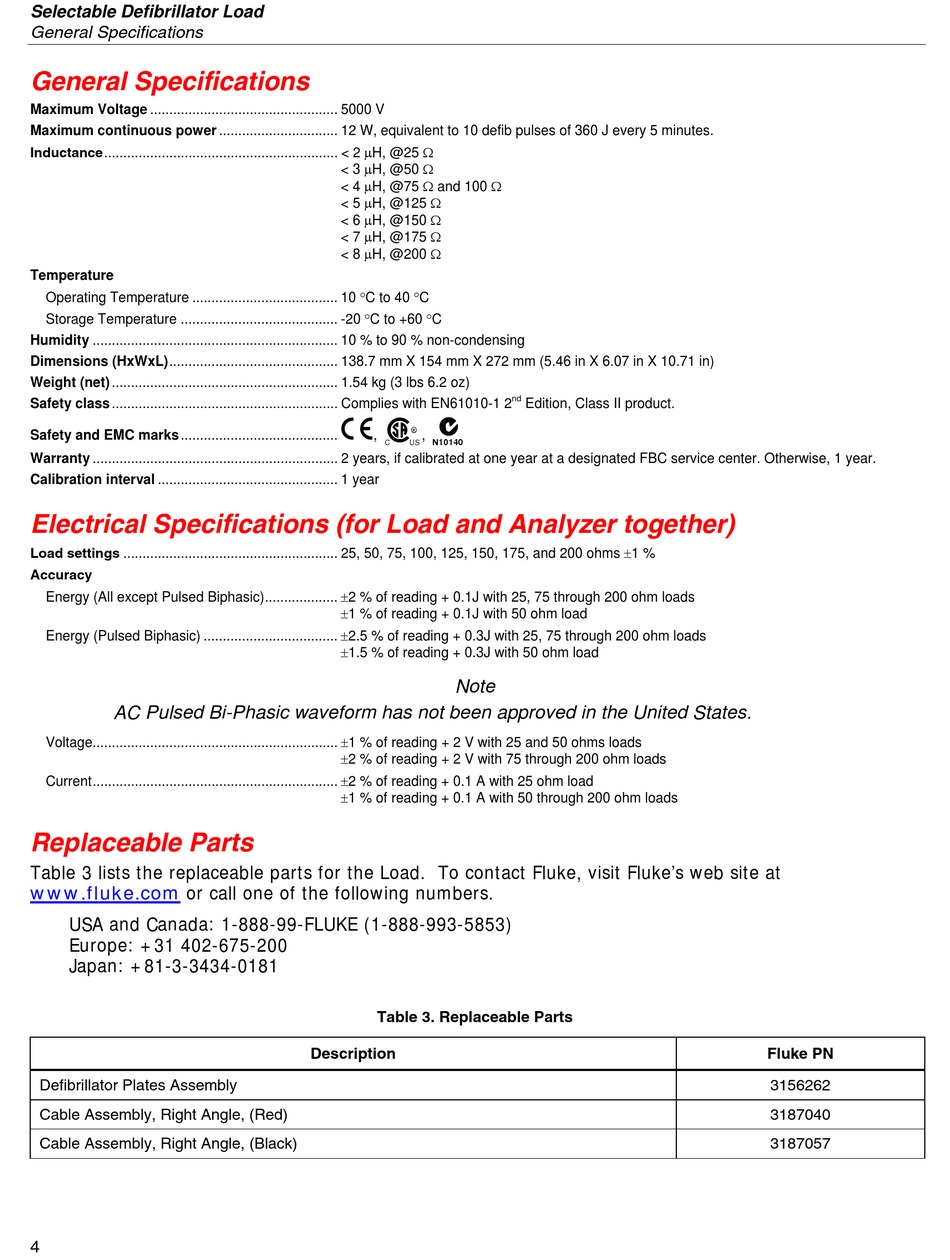

Fluke Biomedical 7010 Instruction Sheet page 4

Selectable Defibrillator Load
General Specifications
General Specifications
Maximum Voltage ................................................. 5000 V
Maximum continuous power ............................... 12 W, equivalent to 10 defib pulses of 360 J every 5 minutes.
Inductance............................................................. < 2 μH, @25 Ω
Temperature
Operating Temperature ...................................... 10 °C to 40 °C
Storage Temperature ......................................... -20 °C to +60 °C
Humidity ................................................................ 10 % to 90 % non-condensing
Dimensions (HxWxL)............................................ 138.7 mm X 154 mm X 272 mm (5.46 in X 6.07 in X 10.71 in)
Weight (net) ........................................................... 1.54 kg (3 lbs 6.2 oz)
Safety class ........................................................... Complies with EN61010-1 2
Safety and EMC marks .........................................
Warranty ................................................................ 2 years, if calibrated at one year at a designated FBC service center. Otherwise, 1 year.
Calibration interval ............................................... 1 year
Electrical Specifications (for Load and Analyzer together)
Load settings ........................................................ 25, 50, 75, 100, 125, 150, 175, and 200 ohms ±1 %
Accuracy
Energy (All except Pulsed Biphasic)................... ±2 % of reading + 0.1J with 25, 75 through 200 ohm loads
Energy (Pulsed Biphasic) ................................... ±2.5 % of reading + 0.3J with 25, 75 through 200 ohm loads
AC Pulsed Bi-Phasic waveform has not been approved in the United States.
Voltage................................................................ ±1 % of reading + 2 V with 25 and 50 ohms loads
Current................................................................ ±2 % of reading + 0.1 A with 25 ohm load
Replaceable Parts
Table 3 lists the replaceable parts for the Load. To contact Fluke, visit Fluke's web site at
www.fluke.com or call one of the following numbers.
USA and Canada: 1-888-99-FLUKE (1-888-993-5853)
Europe: +31 402-675-200
Japan: +81-3-3434-0181
Defibrillator Plates Assembly
Cable Assembly, Right Angle, (Red)
Cable Assembly, Right Angle, (Black)
4
< 3 μH, @50 Ω
< 4 μH, @75 Ω and 100 Ω
< 5 μH, @125 Ω
< 6 μH, @150 Ω
< 7 μH, @175 Ω
< 8 μH, @200 Ω
P ) ;
, ,
±1 % of reading + 0.1J with 50 ohm load
±1.5 % of reading + 0.3J with 50 ohm load
Note
±2 % of reading + 2 V with 75 through 200 ohm loads
±1 % of reading + 0.1 A with 50 through 200 ohm loads
Table 3. Replaceable Parts
Description
nd
Edition, Class II product.
Fluke PN
3156262
3187040
3187057
