Selectable Defibrillator Load
Using the Load for Testing
select Ext Load. The selection is saved in
non-volatile memory for future use.
When running a defibrillator Energy, Sync, or
Charge Time test, press the Load softkey to
select the load using G and H. When done,
press Load again to close the selection box.
The selected load must be the same
value on both the Anaylzer and the
Load to get correct energy, voltage,
and current readings.
When set to 50Ω, the Load is bypassed and
the load inside the Analyzer is used for the
Item
A
Outputs to Analyzer
B
Rotary switch
2
Note

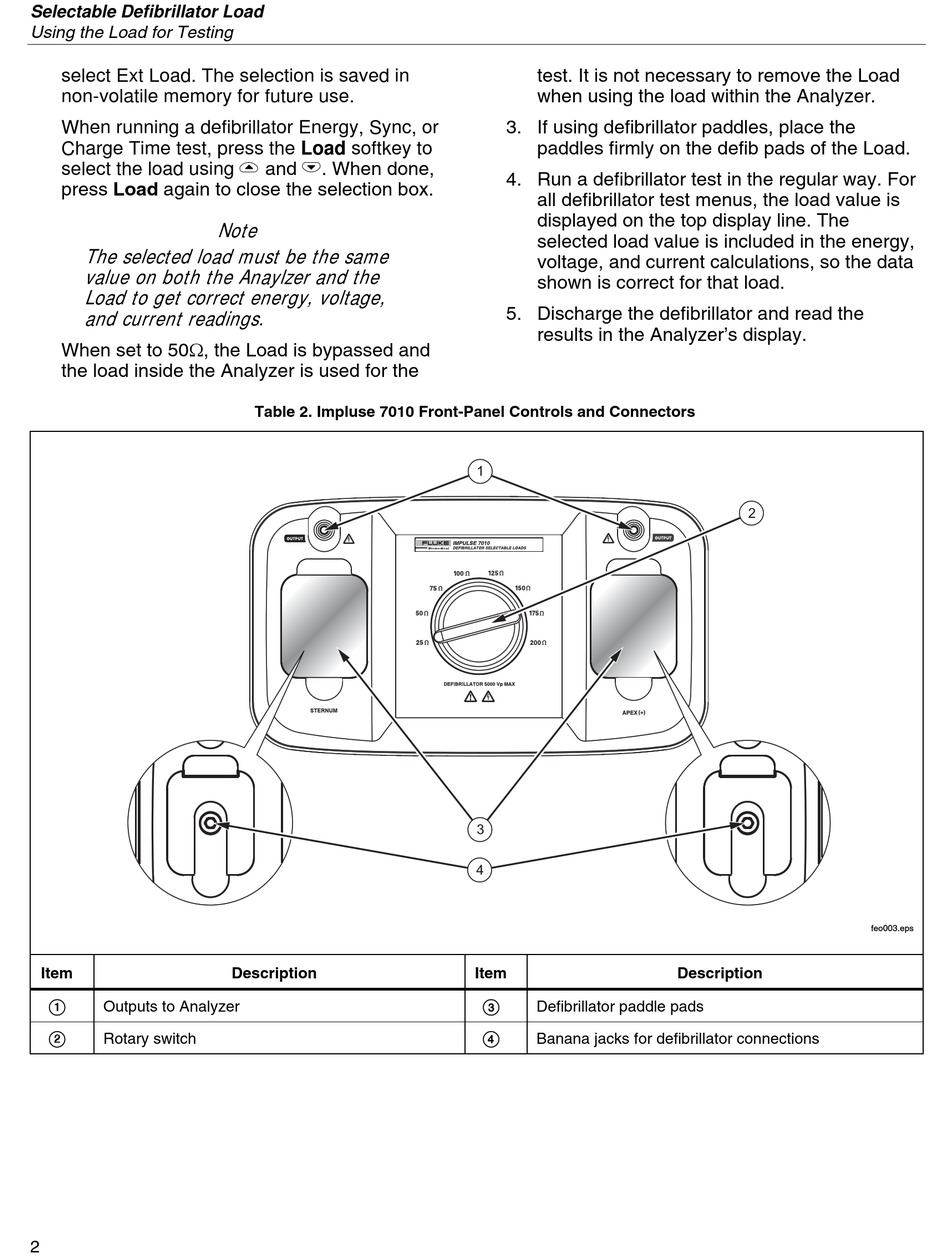

Table 2. Impluse 7010 Front-Panel Controls and Connectors
Description
test. It is not necessary to remove the Load
when using the load within the Analyzer.
3. If using defibrillator paddles, place the
paddles firmly on the defib pads of the Load.
4. Run a defibrillator test in the regular way. For
all defibrillator test menus, the load value is
displayed on the top display line. The
selected load value is included in the energy,
voltage, and current calculations, so the data
shown is correct for that load.
5. Discharge the defibrillator and read the
results in the Analyzer's display.
1
3
4
Item
C
Defibrillator paddle pads
D
Banana jacks for defibrillator connections
2
Description
feo003.eps
