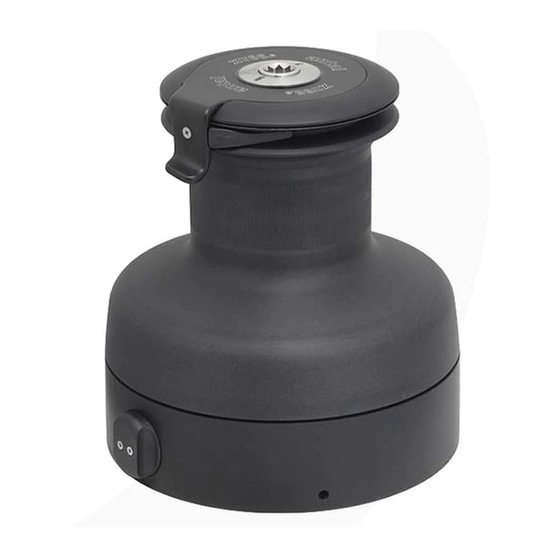

2 speed hydraulic xt winches

Advertisement

2 Speed Hydraulic XT Winches
Installation Manual
For Models
Antal srl unipersonale, Via del Progresso, 10, 35127, Padova, Italy.
Tel. +39 049 8701265. Fax: +39 049 760906. web: www.antal.it
X T 6 6 H D
X T 7 0 H D
Technical service: antal@antal.it
