Installation and Maintenance Manual
For Models
Antal srl unipersonale, Via del Progresso, 10, 35127, Padova, Italy.
Tel. +39 049 8701265. Fax: +39 049 760906. web: www.antal.it
Distributed in Australia by DeckHardware

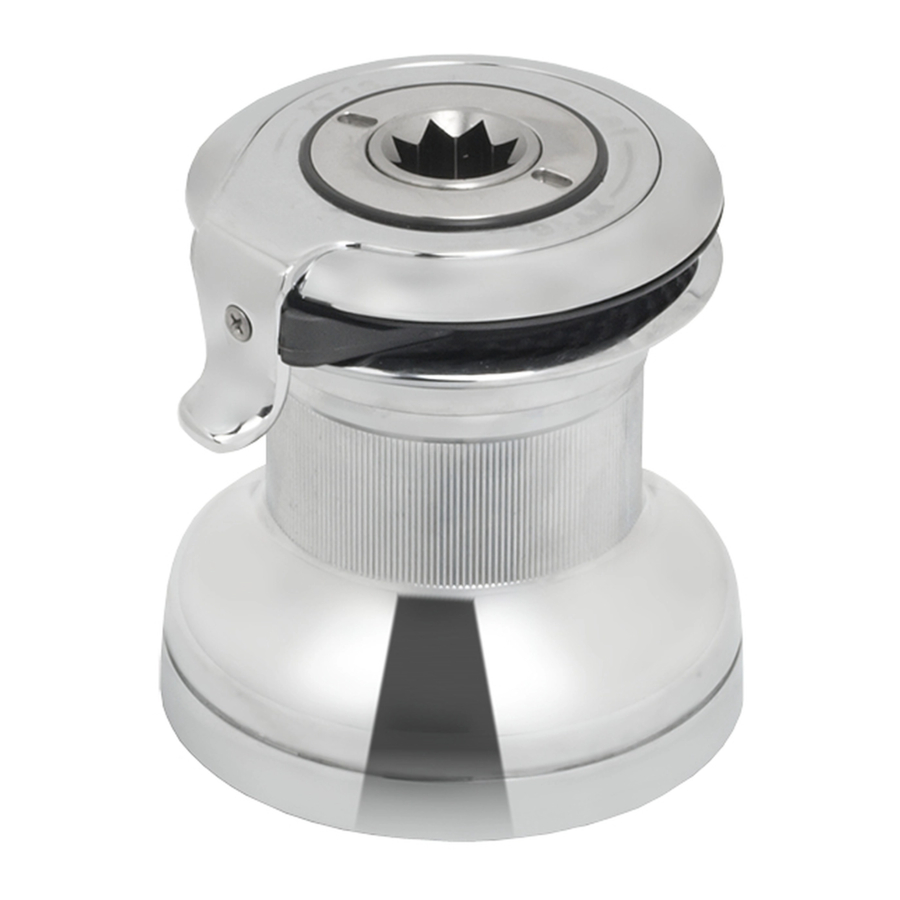

XT Winches
X T 1 6 . 2 A L , X T 1 6 . 2 C H , X T 1 6 . 2 R
X T 3 0 . 2 A L , X T 3 0 . 2 C H , X T 3 0 . 2 R
Technical service: antal@antal.it
www.deckhardware.com.au
02 9905 9400
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Antal XT Series
Summary of Contents for Antal XT Series

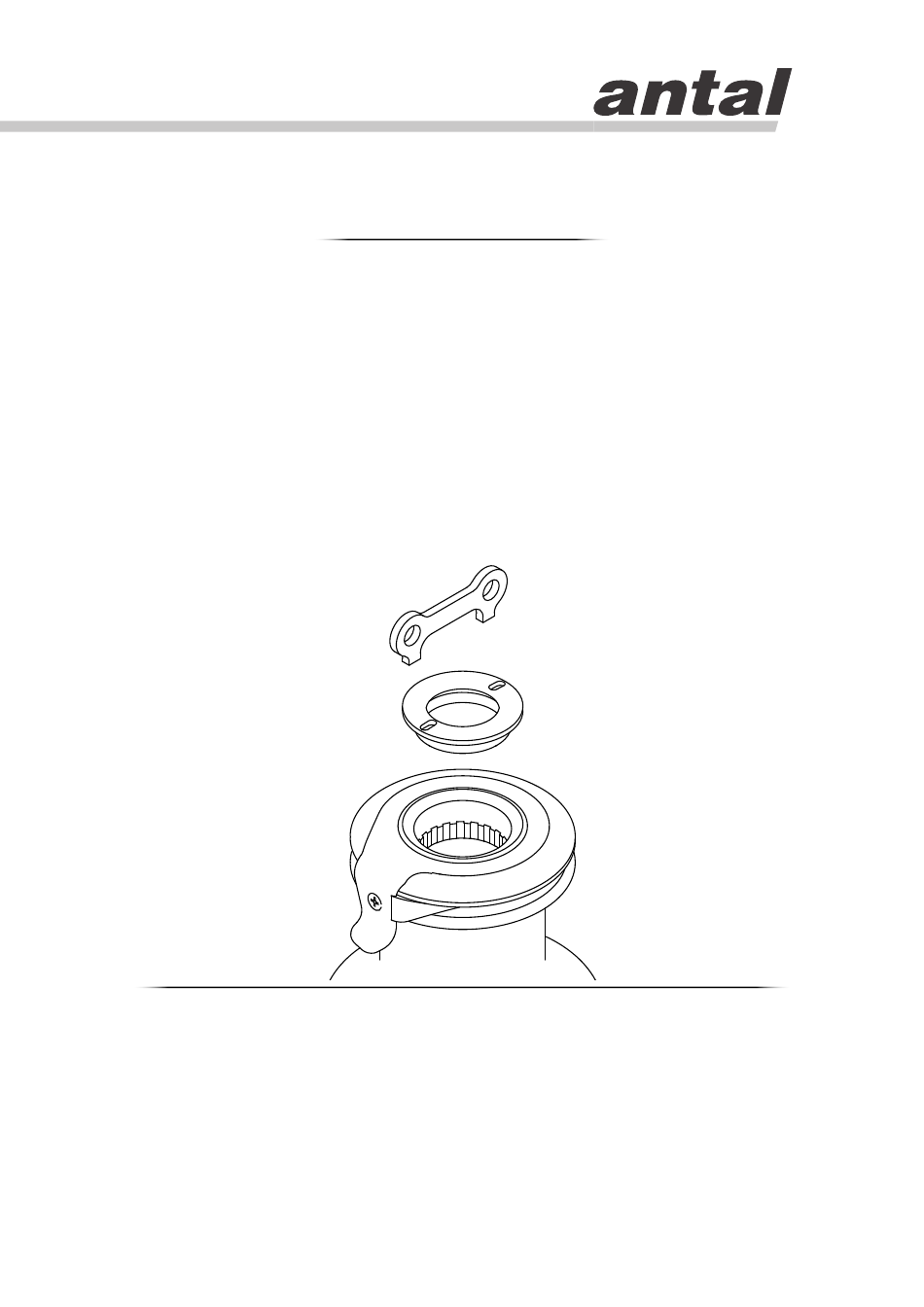

- Page 1 X T 3 0 . 2 A L , X T 3 0 . 2 C H , X T 3 0 . 2 R Antal srl unipersonale, Via del Progresso, 10, 35127, Padova, Italy. Tel. +39 049 8701265. Fax: +39 049 760906. web: www.antal.it Technical service: antal@antal.it...
-
Page 2: Table Of Contents
XT winch models: XT16.2AL. XT16.2CH, XT16.2R, XT30.2AL, XT30.2CH, XT30.2R. In case of technical queries, contact antal@antal.it. Contacts Antal srl unipersonale, Via del Progresso, 10, 35127, Padova, Italy. Tel. +39 049 8701265. Fax: +39 049 760906. web: www.antal.it Technical service: antal@antal.it... -
Page 3: About Xt Winches
Installation and Maintenance XT16.2, XT30.2 1. About XT Winches Important Concepts Power. Winches are distinguished by power values. The ratio between the force exerted on the handle and the power dispensed by the winch, is said power. For example: if a winch has power 52, it means that when I exert a force 1 on the handle, I get a power of recovery of 52 on the drum (theoretical value that disregards friction). -
Page 4: Use
Installation is the responsibility of professional personnel. The installer must ensure the good state of the deck where the winch is to be installed. Antal assumes no responsibility for an incorrect installation of the winch. Warning: an incorrect installation of the winch may cause injuries or damages to things. - Page 5 Installation and Maintenance XT16.2, XT30.2 Position of the winch on the deck. Before installing the winch you must choose a location on the deck that allows the maneuver which you intend to use, to reach the winch at an angle between 2 and 10 degrees. 2°...
- Page 6 To install the winch, you will need: supplied key (K) for the opening of the upper ring (R), drill, sealant, screws, bolts and washers. Screws. Antal does not supply the anchoring screws needed to install the winch. The length of the screws depends on the thickness of the deck.
- Page 7 Alternatively, you can download the drilling templates from the internet, at www.antal.it Then drill the deck. In order to prevent water seepage, put sealant around the anchoring holes. Be careful not to obstruct with the sealant the drainage channels at the bottom of the winch.
-
Page 8: Maintenance
Antal Grease, it also protects the aluminum parts from galvanic corrosion, too. Thus we advise to put a thin layer of TFL 400 Antal Grease; not only to lubricate all moving parts, but also to protect the aluminum surfaces in contact with s.steel parts, e.g. screws. - Page 9 Installation and Maintenance XT16.2, XT30.2 Maintenance Sequence The inner part of the winch. Remove the two half rings at the top of the center rod and the spindle. Unscrew the 4 screws on the base and lift the base- center rod-block. Complete inspection.
- Page 10 Installation and Maintenance XT16.2, XT30.2 Complete inspection Valid for XT16.2 Now, rotate the base-center rod-block remove the plastic spacer at the bottom, ie, parts 24-29 of the exploded view drawing. See section 7. Complete inspection Valid for XT30.2 Now, rotate the base-center rod-block remove the plastic spacer at the...
- Page 11 Installation and Maintenance XT16.2, XT30.2 Complete inspection Now, simply remove the center rod. Clean the old lubricant from all parts. Lift the roller bearings, the spacers (in case of presence) and the washers. Carefully clean all these parts with a soft bristle brush and solvent.
-
Page 12: Video
Inspect with seasonal frequency the wear status of the internal parts of the winch. In case of damaged parts, order the spare parts from Antal. To identify them, refer to the exploded view drawings at the end of this guide. - Page 13 Exploded View XT16.2AL, XT16.2CH, XT16.2R winch model: XT16.2 CODE B4219 SAN0160 SAN0682 rev. 21-nov-2013...
- Page 14 Part List XT16.2AL, XT16.2CH, XT16.2R part list XT16.2 AL N° DESCRIPTION MATERIAL CODE N° DESCRIPTION MATERIAL CODE RING TOOL S.STEEL A4035 HALF-RING BRONZE UPPER RING S.STEEL ROLLER BEARING S.STEEL B4219 03 UPPER RING WASHER PLASTIC WASHER S.STEEL ST ARM ALUMINIUM SAN0526 SEEGER S.STEEL STRIPPER...
- Page 15 Exploded View XT30.2AL, XT30.2CH, XT30.2R winch model: XT30.2 CODE B4219 SAN0529 SAN0528 rev. 21-nov-2013...
- Page 16 Part List XT30.2AL, XT30.2CH, XT30.2R part list XT30.2 AL N° DESCRIPTION MATERIAL CODE N° DESCRIPTION MATERIAL CODE RING TOOL S.STEEL A4035 HALF-RING BRONZE UPPER RING S.STEEL ROLLER BEARING S.STEEL B4219 03 UPPER RING WASHER PLASTIC WASHER S.STEEL ST ARM ALUMINIUM SAN0526 SPACER PLASTIC STRIPPER...
