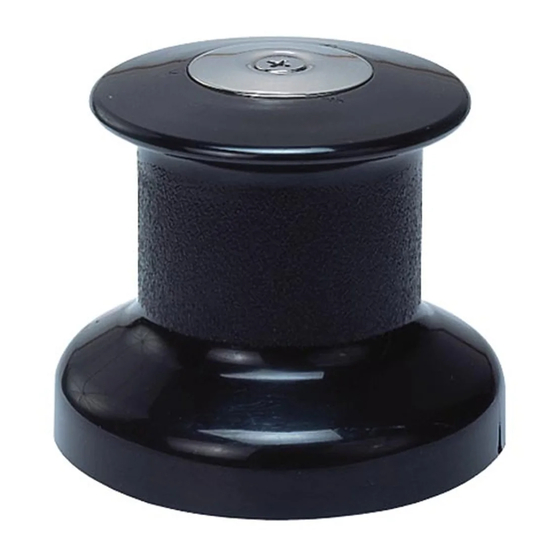

Antal W6 Installation And Maintenance Manual

Fig.1
Tab.1 P S mm
MOD 1 2 1 2
Standard One Speed (1 DIR.) — Una velocità (1 DIR.)
W6 6.7 - 188 -
W7 6.7 - 188 -
W8 7.3 - 220 -
Standard Two Speed (1 DIR. + 1 RED.) — Due velocità (1 DIR. + 1 RID.)
W16 7.3 14.5 110 220
W30 7.0 28.0 60 235
W42 6.4 42.5 37 250
Standard Two Speed (2 RED.) — Due velocità (2 RID.)
W44 20.0 43.0 38 81
W48 19.0 47.4 34 84
W52 14.9 51.1 31 107
Legend / Legenda / Légende
P = Power / Potenza / Puissance
S (mm) = Recovery / Recupero / Embraque
AL = Aluminum / Alluminio / Aluminium
CH = Chromed bronze / Bronzo cromato / Bronze chromé
Fig.2
1 giro — 1 turn
Fig.3
Fig.4
Fig.5
A
d
D
Ø
B
C
C
C
UNI 5933
Hexagonal socket
counter-sunk head
screws
WEIGHT
D d H
PESO kg
mm mm mm
AL CH N×Ø
0.43 - 94 60 87 5x6
0.70 - 97 60 95 5x6
1.6 2.1 110 70 105 5x6
2.0 2.9 110 71 106 5x6
2.8 3.8 128 75 125 5x6
4.1 6.0 144 82 145 5x8
5.5 8.5 173 93 177 6x8
6.3 9.5 182 93 189 6x8
7.8 11.5 204 104 194 6x8
S
P
2°—10°
A
W Winches
H

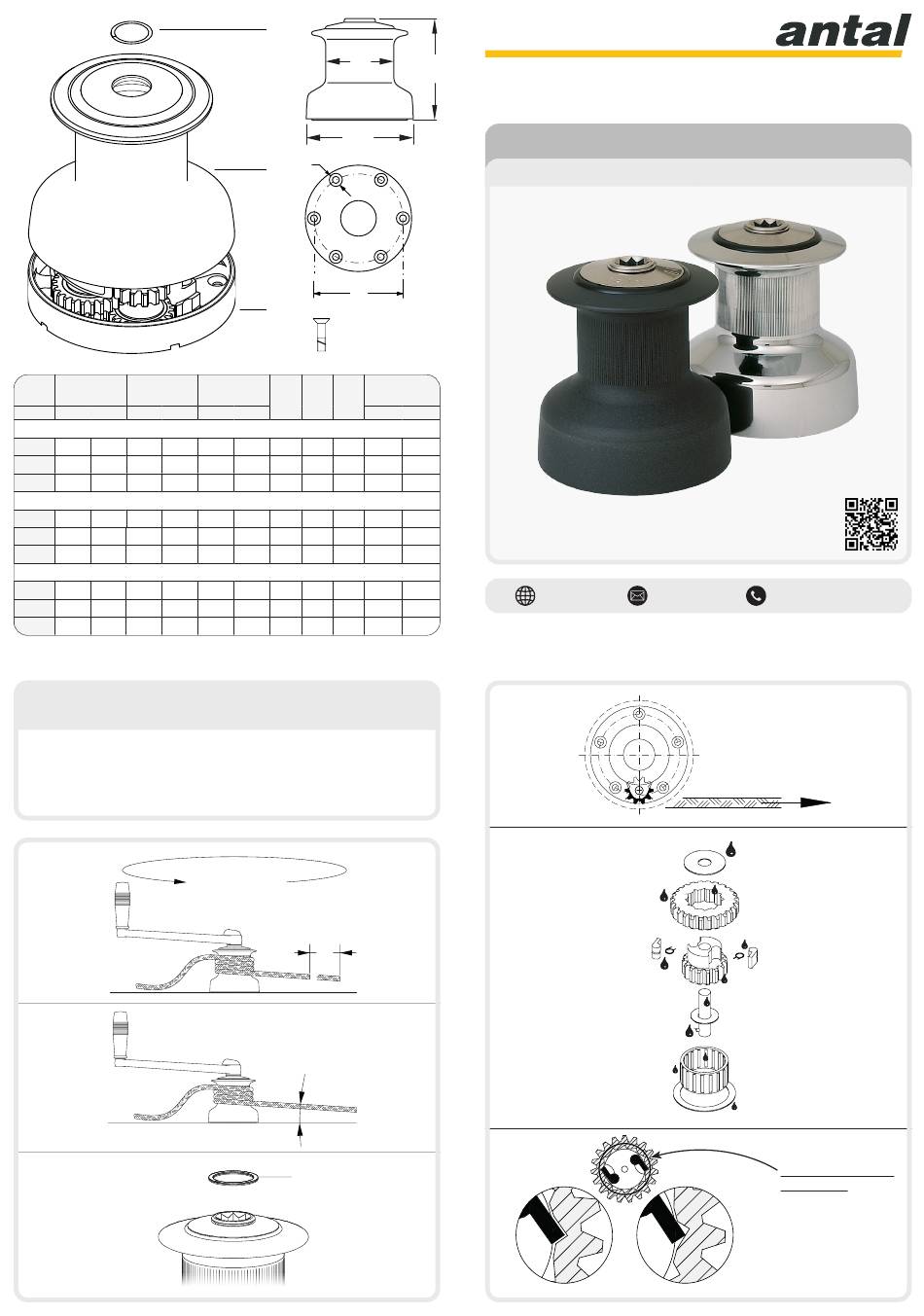

Installation and maintenance manual
For models W6, W7, W8, W16, W30, W42, W44, W48, W52
Revision no. 01
d
Fig.2
D
SCREWS
VITI
Fig.3
C mm
66
79
83
82
Exploded view, drilling templates and much more availabile
92
on www.antal.it! Just scan the QR code to access the web page.
Fig.4
110
147
www.antal.it
156
174
Fig.5
Fig.7
Fig.8
YES
H
1 giro — 1 turn
P
antal@antal.it
Antal Srl, Via del Progresso 10, 35127, Padova (IT)
NO
Last mod. 29/07/2022
S
2°—10°
A
(+39) 049 8701265
VIEW FROM ABOVE
THE WINCH
Please notice that
a circular-engraving
should be visible
from above when
dismantling.
