Summary of Contents for Antal XT66EH

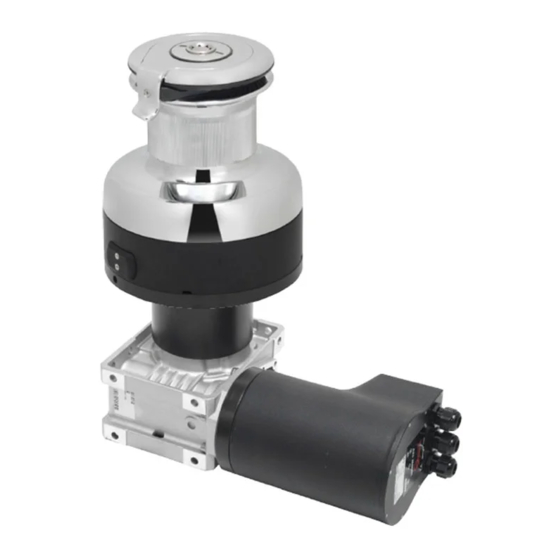

- Page 1 X T 7 0 E H X T 6 6 E V X T 7 0 E V Antal srl unipersonale, Via del Progresso, 10, 35127, Padova, Italy. Tel. +39 049 8701265. Fax: +39 049 760906. web: www.antal.it Technical service: antal@antal.it...
-
Page 2: Table Of Contents
Need the exploded view drawing of your XT Winch? Download the full Installation and maintenance manual from www.antal.it Contacts Antal srl unipersonale, Via del Progresso, 10, 35127, Padova, Italy. Tel. +39 049 8701265. Fax: +39 049 760906. web: www.antal.it Technical service: antal@antal.it... -
Page 3: Important Information
400 Watt. Winch Drum Antal powered winches come supplied with a chrome - plated bronze drum. Black anodized aluminium drums are available on request, in this case the aluminium drum is “reinforced” applying a special toothed... -
Page 4: Electric System
Installation and Maintenance XT66EH, XT70EH, XT66EV, XT70EV 2. Electric System Breaker The thermal switches indicated in the following table have dimensions calculated to break the circuit in case of exceptional overload; it is possible to consider thermal relays with a setting at a lower level. - Page 5 Installation and Maintenance XT66EH, XT70EH, XT66EV, XT70EV Electric System The electric system must be installed by specialised personnel, in compliance with the regulations in force; some general information is given below. For the electric diagram directions included in the control box should be consulted.
-
Page 6: Table Of Overall Dimensions
Installation and Maintenance XT66EH, XT70EH, XT66EV, XT70EV 3. Table of overall dimensions Speed - m/min Deck Model Motor Weight AL Weight CH Screws Watt No. x Ø Horizontal Motor XT66EH 1500 12.0 2500 31.9 41.7 6 x 10 XT70EH 1500 3000 35.9... -
Page 7: Installation
Fix the Motor: Thus, fix the flange F on the deck with 6 anchoring screws F3 from above (not supplied Ø=120 mm by Antal). Now, Install the Motor Unit screwing in the F2 screws. XT-EH Installation: Finally fix the base (B) by screwing in the F1 screws. - Page 8 Installation and Maintenance XT66EV, XT70EV Valid for model: XT66EV, XT70EV Opening the Winch First of all, unscrew the upper ring (R) with the provided key (K). Thus lift the drum (D). Finally unscrew the F1 screw to lift the base (B) and access the anchoring holes on the skirt (S) of the winch.
- Page 9 During assembly all the steel screws and washers must be generously greased to avoid corrosion phenomena in the areas in contact with aluminium parts. Antal supplies a special Teflon grease for marine applications: “TLF400” in 100 gr packs. This product is an excellent lubricant and ensures lasting protection of...
-
Page 10: Maintenance Of The Winch
Antal Grease, it also protects the aluminum parts from galvanic corrosion, too. Thus we advise to put a thin layer of TFL 400 Antal Grease; not only to lubricate all moving parts, but also to protect the aluminum surfaces in contact with s.steel parts, e.g. screws. -
Page 11: Warranty
XT66EH, XT70EH, XT66EV, XT70EV 6. Warranty Antal guarantees its equipment to be free of defects in material and workmanship for 3 years from the date of purchase. During this period defective parts will be repaired or replaced by Antal. Warranty does not cover: products incorrectly installed;...
