Task 3: Remove the faulted LCC

EMC VNXe3100/VNXe3150 — Replacing a Link Control Card (LCC) in a 12-Slot Disk-Array Enclosure (DAE)
1. Attach an ESD wristband to your wrist and the enclosure.

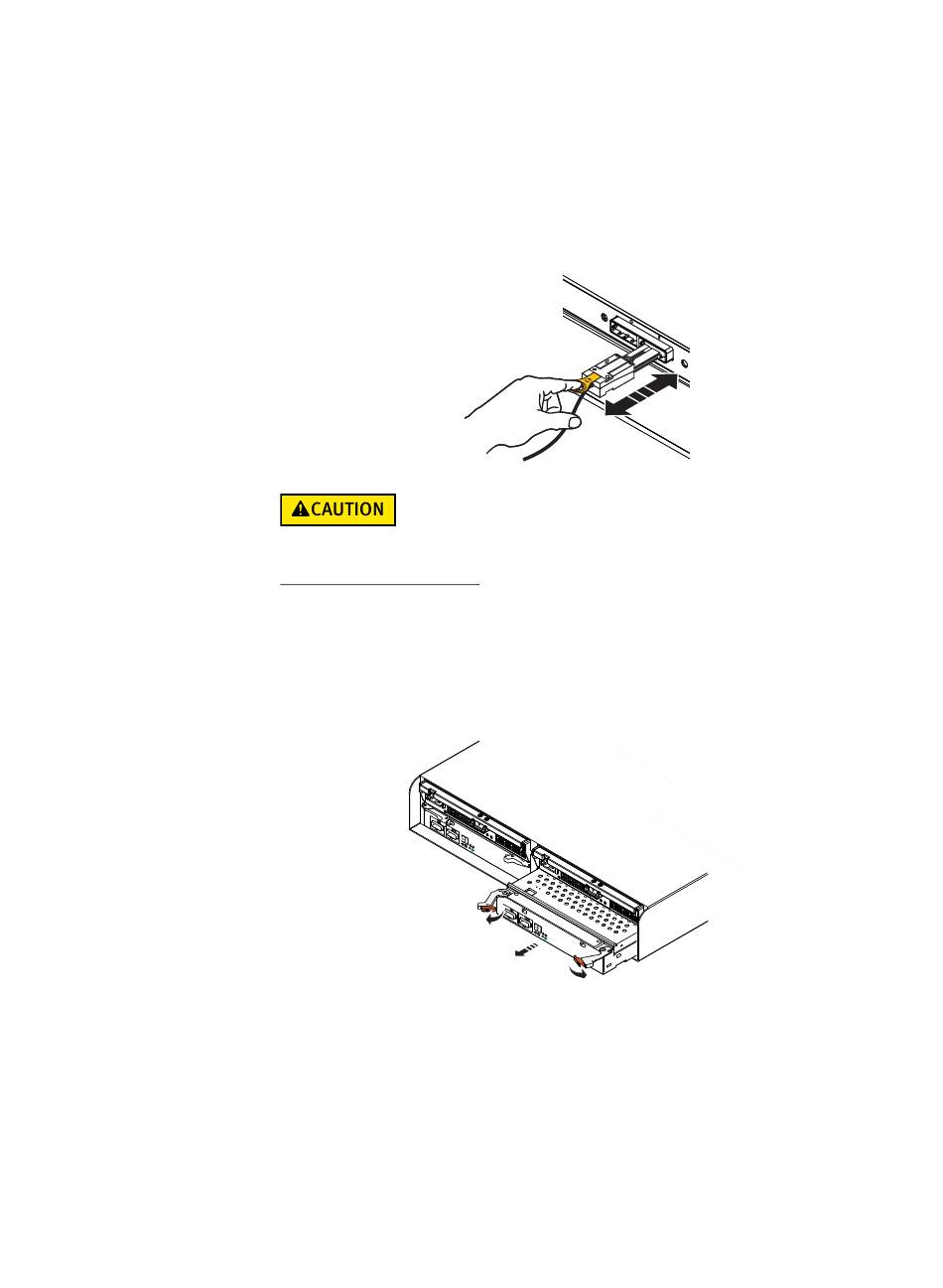

2. Gently pull the connector tabs to release them as you remove the SAS cables
connected to the faulted LCC.
Note where the cables connect to the LCC; you will need to reconnect them to the
replacement LCC.
The LCC comes completely out of the DAE chassis. In addition to holding the latches,
be prepared to support the LCC to avoid dropping it.
3. Locate the orange latches on the LCC handles.
4. Pinch the latches to release the handles, then pull them to the side to eject the LCC
from the chassis.
5. Place the LCC on a clean, static-free surface.
Tasks to replace an LCC
CL4572
CL4680
3
