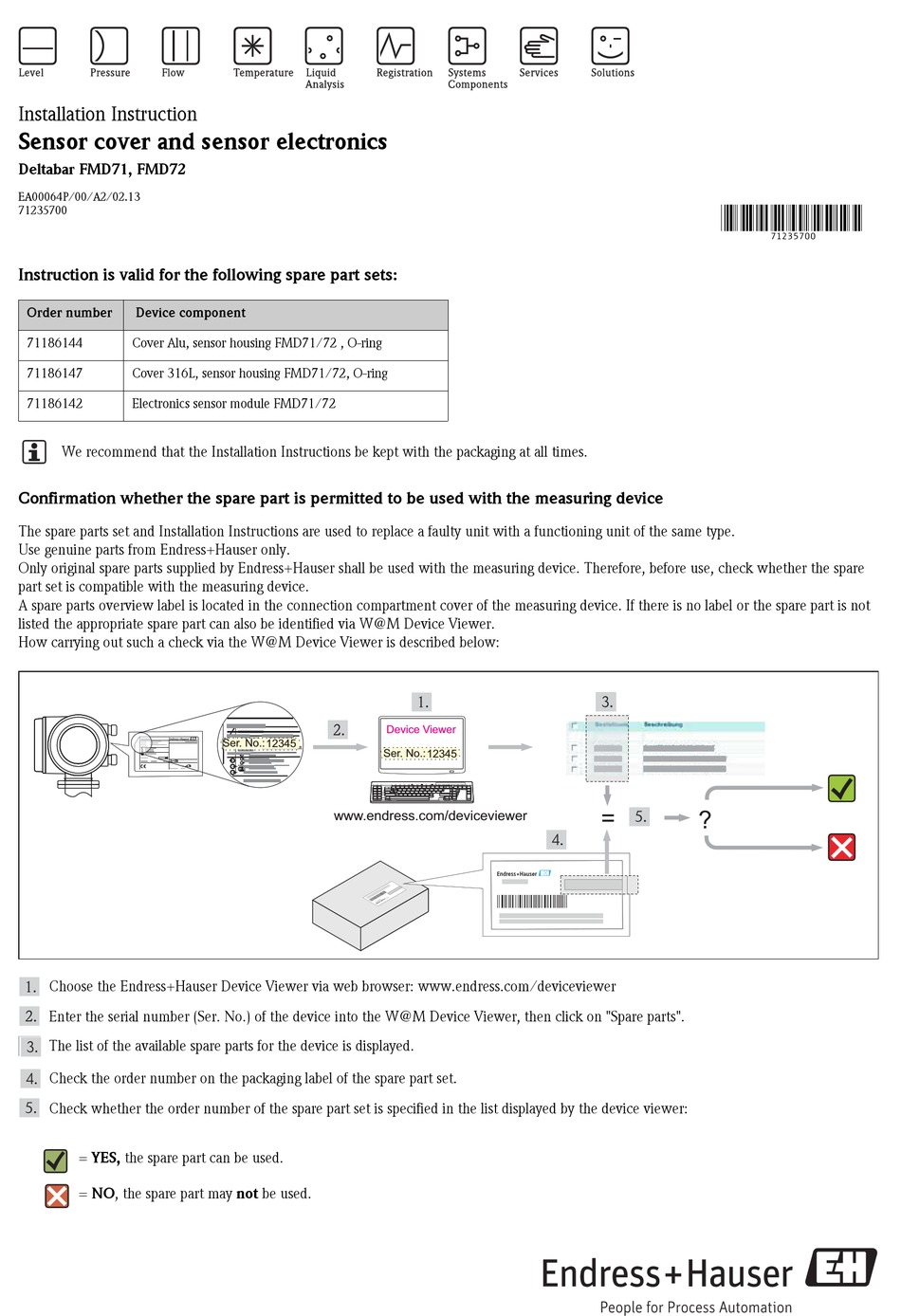

Endress+Hauser Deltabar FMD71 Installation Instruction

Installation Instruction
Sensor cover and sensor electronics

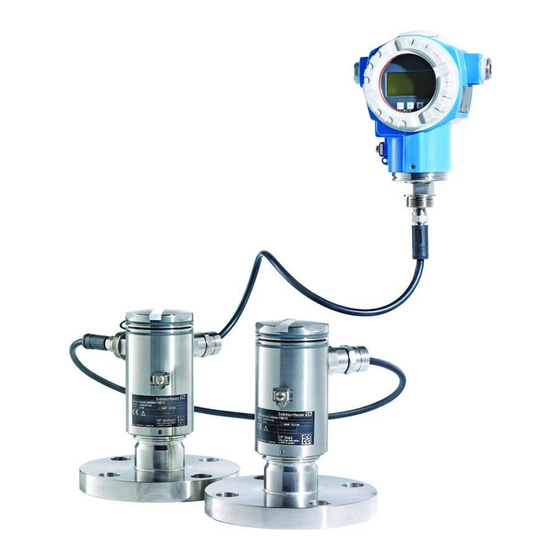

Deltabar FMD71, FMD72
EA00064P/00/A2/02.13
71235700
Instruction is valid for the following spare part sets:
Order number Device component
71186144 Cover Alu, sensor housing FMD71/72 , O-ring
71186147 Cover 316L, sensor housing FMD71/72, O-ring
71186142 Electronics sensor module FMD71/72
We recommend that the Installation Instructions be kept with the packaging at all times.
Confirmation whether the spare part is permitted to be used with the measuring device
The spare parts set and Installation Instructions are used to replace a faulty unit with a functioning unit of the same type. 
Use genuine parts from Endress+Hauser only.
Only original spare parts supplied by Endress+Hauser shall be used with the measuring device. Therefore, before use, check whether the spare
part set is compatible with the measuring device.
A spare parts overview label is located in the connection compartment cover of the measuring device. If there is no label or the spare part is not
listed the appropriate spare part can also be identified via W@M Device Viewer.
How carrying out such a check via the W@M Device Viewer is described below:
i
Choose the Endress+Hauser Device Viewer via web browser: www.endress.com/deviceviewer
Enter the serial number (Ser. No.) of the device into the W@M Device Viewer, then click on "Spare parts".
The list of the available spare parts for the device is displayed.
Check the order number on the packaging label of the spare part set.
Check whether the order number of the spare part set is specified in the list displayed by the device viewer:
= YES, the spare part can be used.
= NO, the spare part may not be used.
Ser. No.:12345 Ser.No.:1234567890
i
www.endress.com/deviceviewer
Device Viewer
Ser. No.: 12345
71235700
=
?
