Quick Start EVK-L2x

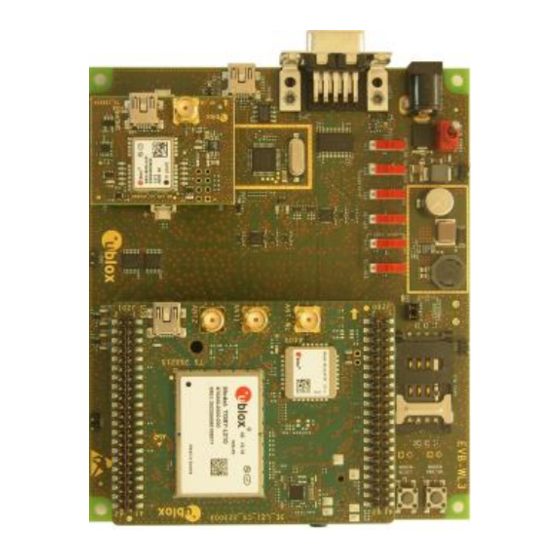

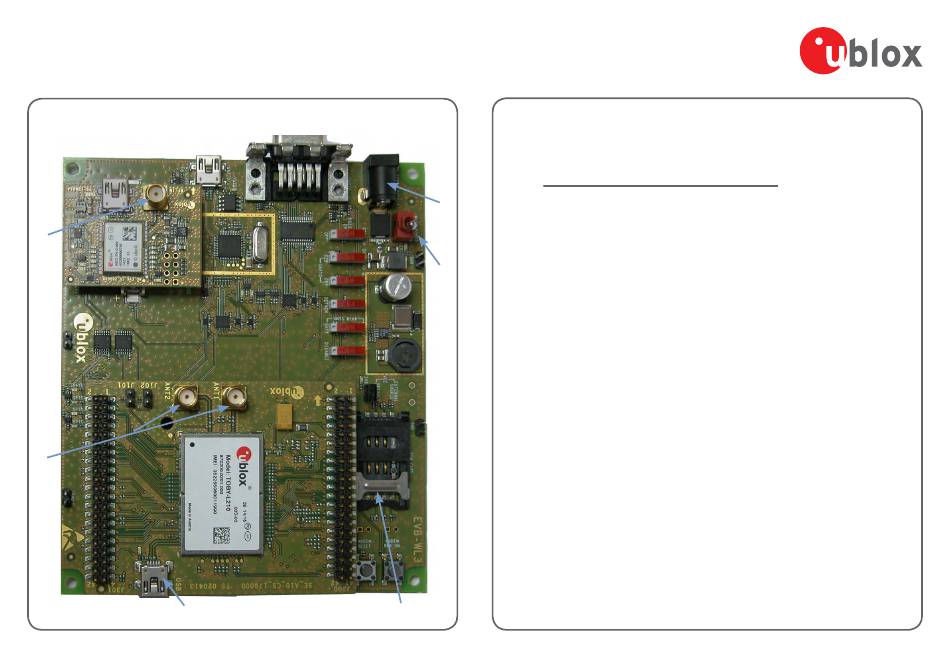

1. Overview
3
2
6
UBX-14001665 - R03
2. Setup
Download the EVK-L2x software (and documentation)
from www.u-blox.com/evk-downloads and install the
software. See installation notes on back of card.
4
1. Insert SIM card in SIM Card Holder.
2. Connect two cellular antennas with SMA connectors
5
to the two Antenna connectors (SMA female).
3. Connect the GNSS antenna to the GNSS antenna
SMA connector, if GNSS functionality is required.
4. Connect power adapter to 9 – 18 V Power Input
connector (J400) (+12 V). LED DL401 is blue.
5. To supply power to the board, turn Main Power
(SW400) switch to ON position. LED DL400 is green.
The module switches on.
Connection for communication via USB:
6. Connect USB cable to mini USB connector on the
adapter board (cellular native USB).
1
Copyright © 2017, u-blox AG
Advertisement
Related Manuals for Ublox EVK-L2 Series
Summary of Contents for Ublox EVK-L2 Series
- Page 1 Quick Start EVK-L2x 1. Overview 2. Setup Download the EVK-L2x software (and documentation) from www.u-blox.com/evk-downloads and install the software. See installation notes on back of card. 1. Insert SIM card in SIM Card Holder. 2. Connect two cellular antennas with SMA connectors to the two Antenna connectors (SMA female).
- Page 2 3. Installation 4. Interfaces Notes for downloading the newest When the module has completed EVK-L2x drivers and documents from booting, the following devices are the u-blox website: enabled with Windows (port number details can be seen via the Windows • An Internet connection is required. Device Manager): Windows operating systems are supported (x86 and x64 versions of...
