ST-401N User's Manual v 1.0.3

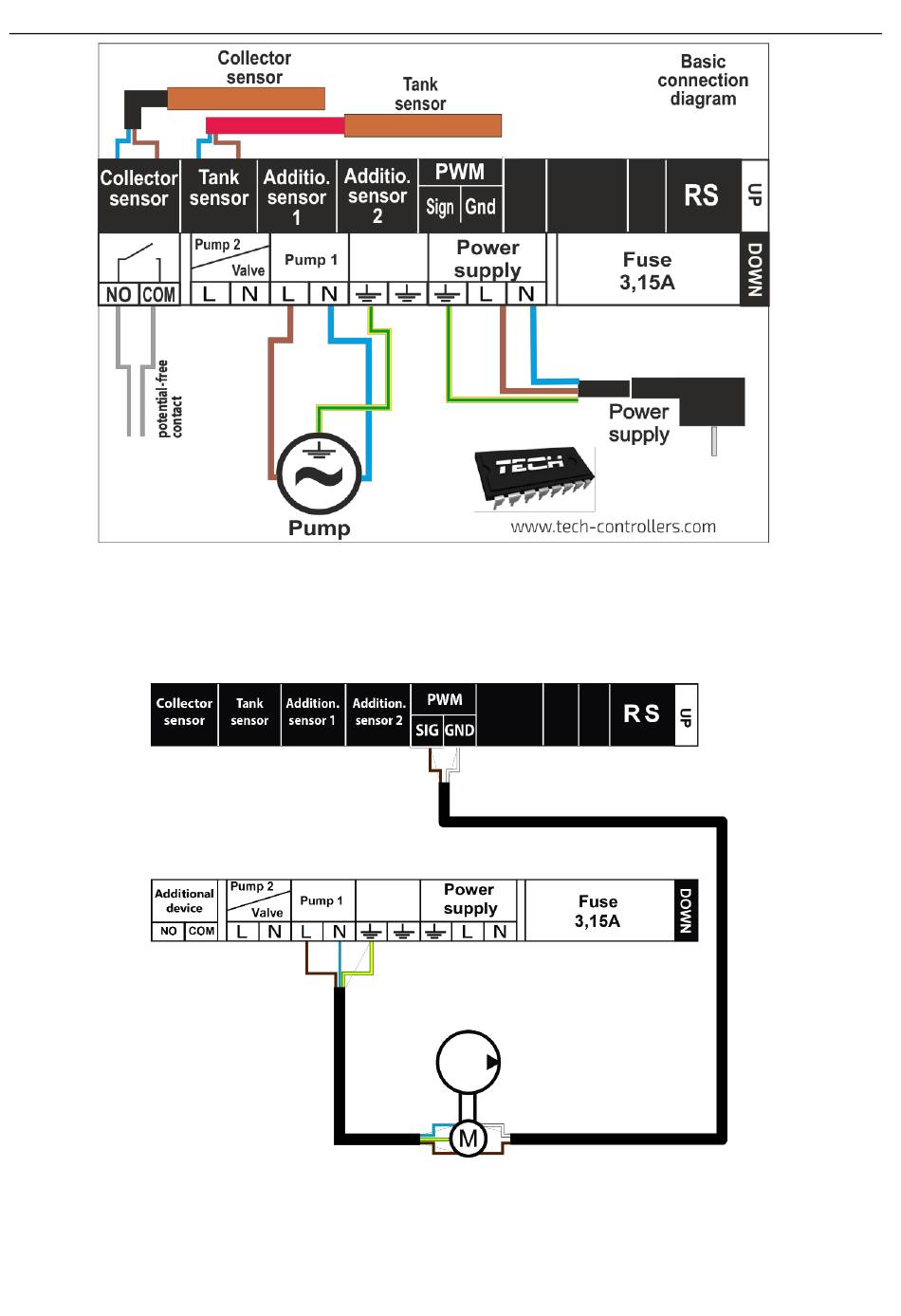

*Schematic Diagram – the scheme does not replace the design of the CH installation It is aimed at
demonstrating the possibility for expanding the controller. The presented scheme of the heating
installation does not contain cut-off and protecting elements for the execution of its specialist
installation.
- 16 -
