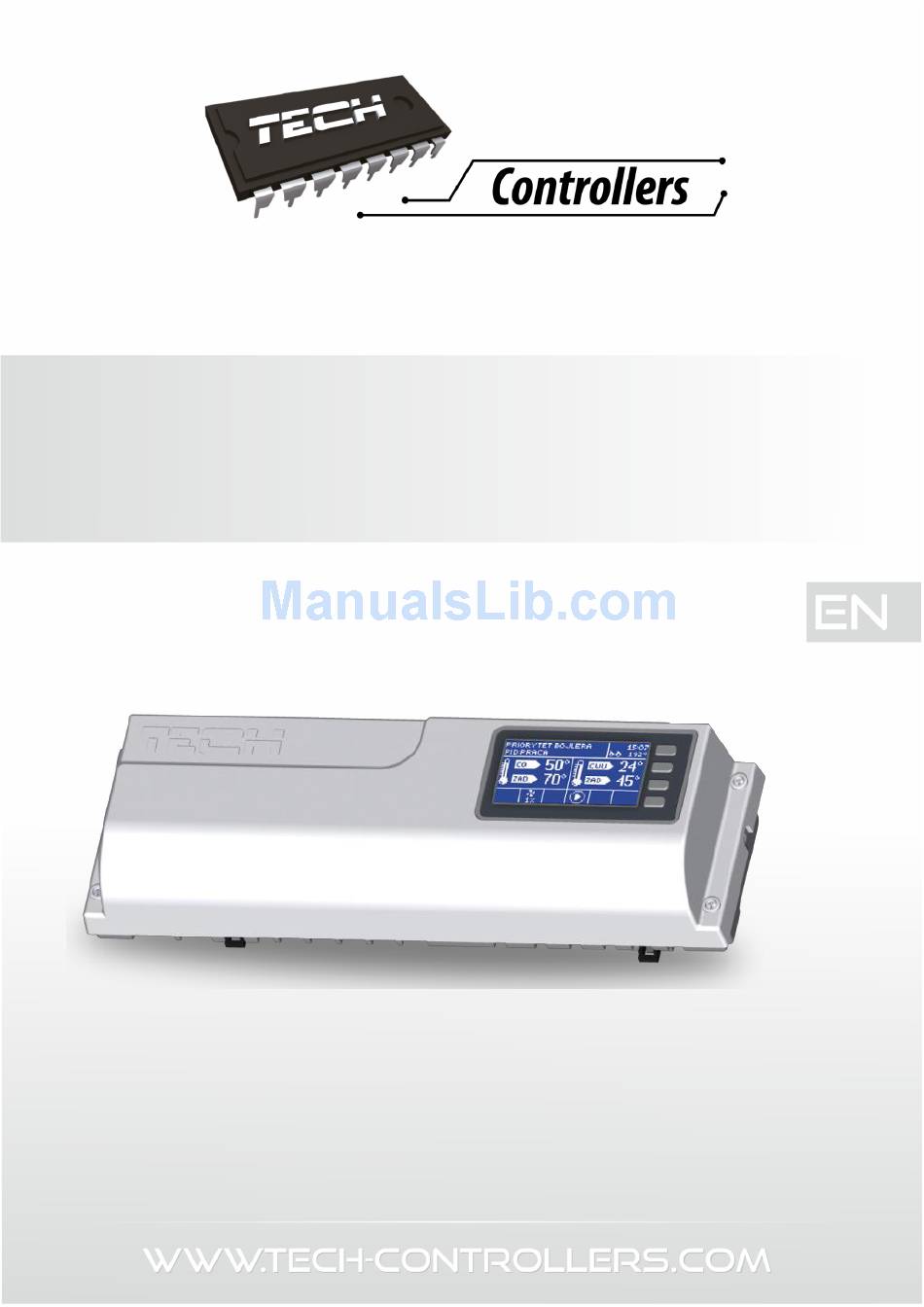

- Page 1 EU-2640 user’s manual User’s manual ST-2640...
-
Page 2: Table Of Contents
TECH Table of contents Safety ........................3 Device description ....................4 III. Installing the controller ................... 5 Radio communication ....................7 First start-up ......................7 Operating the controller ..................9 VI.a) Principle of operation .................... 9 VI.b) View and description of the main screen..............9 VII. -
Page 3: Safety
EU-2640 user’s manual Safety Before using the device for the first time the user should read the following regulations carefully. Not obeying the rules included in this manual may lead to personal injuries or controller damage. The user’s manual should be stored in a safe place for further reference. In order to avoid accidents and errors it should be ensured that every person using the device has familiarized themselves with the principle of operation as well as security functions of the controller. -
Page 4: Device Description
TECH Device description The EU-2640 installation strip is intended to operate the valves both by means of wired and wireless communication via a radio signal. The strip makes it possible to substantially save the consumption of electricity due to its precise temperature management of particular rooms in the building. Due to its expanded software, the regulator may perform a number of functions: ... -
Page 5: Installing The Controller
EU-2640 user’s manual III. Installing the controller The controller should be installed by a qualified person. WARNING Risk of fatal electric shock from touching live connections. Before working on the regulator, switch off the power supply and prevent it from being switched on again. The EU-2640 regulator may be installed as a free-standing device or as a panel mountable on a wall. - Page 6 TECH...
-
Page 7: Radio Communication
EU-2640 user’s manual Radio communication The EU-2640 controller may communicate with certain devices by means of radio communication: Function Configuration EU-261r room It makes it possible to - the current communication temperature transmit information on channel needs to be the same sensor the current temperature as in the EU-2640 regulator... - Page 8 TECH Then, the user should release the button when the LED goes out and should press it again to adjust the second digit of the requested number – the LED flashes quickly two times. Holding the button, the user should wait until the LED flashes the requested number of times.
-
Page 9: Operating The Controller
EU-2640 user’s manual Operating the controller VI.a) Principle of operation The EU-2640 controller determines the reheating need for a given zone on the basis of the current temperature transmitted by the EU-261r room sensor as well as on the basis of the individual operation algorithm for each zone. -
Page 10: Controller's Functions - Main Menu
TECH VII. Controller's functions – Main menu Due to the numerous functions of the controller, the menu is divided into the Main Menu and the Fitter's Menu. VII.a) Chart of the controller's menu Pump Manual operation Dry contact Valve 1...8 Czhannel 35;... -
Page 11: Vii.b) Manual Operation
EU-2640 user’s manual VII.b) Manual operation This function allows the user to control the operation of particular devices. The user may manually activate each device: the pump, the dry contact as well as particular valve actuators. VII.c) Channel This function is used to select the channel for radio communication with room sensors as well as with the external sensor. -
Page 12: Vii.e) Sensors
TECH VII.e) Sensors The submenu Sensors allows the user to adjust the operation parameters for particular zones. When a given zone reaches the set value, the EU-2640 controller assigns a reheated status to this zone until the temperature drops below the set value, reduced by hysteresis. When all zones are reheated, the EU-2640 controller deactivates the pump as well as the dry contact at the same time. - Page 13 EU-2640 user’s manual The type of weekly schedule assigned to the zone is visible on the main screen (see Description of the main screen – screen number 9). Edit The schedule's editing commences after the user marks the option Edit. The user may program no more than three time intervals with specific boundaries (with accuracy to 15 minutes).
-
Page 14: Vii.f) Pump
TECH VII.f) Pump The EU-2640 regulator controls the operation of the pump – it activates the pump after the delay time when any zone is insufficiently heated. When all zones are reheated (the set temperature is reached), the controller deactivates the pump. -
Page 15: Protections And Alarms
EU-2640 user’s manual VIII. Protections and alarms In order to ensure the maximum safe and trouble-free operation, the regulator is equipped with a number of protections. An acoustic signal is activated in the case of an alarm and a relevant message is shown on the display. -
Page 16: Software Update
TECH Software update NOTE New software may be uploaded to the controller only by a qualified fitter. After the software is changed, it is not possible to restore the previous settings. To upload new software, the controller should be disconnected from the power supply. A flash drive with the new software should be inserted to the USB port. - Page 17 EU-2640 user’s manual Declaration of conformity 185/2015 Hereby, we declare under our sole responsibility that EU-2640 230V, 50Hz thermoregulator manufactured by TECH, headquartered in Wieprz (34-122), Biała Droga 31, is compliant with: the regulation by the Ministry of Economy, Labour and Social Policy (Journal of Laws No.
- Page 18 TECH...
- Page 19 EU-2640 user’s manual...
- Page 20 TECH...
