Summary of Contents for TECH ST-26

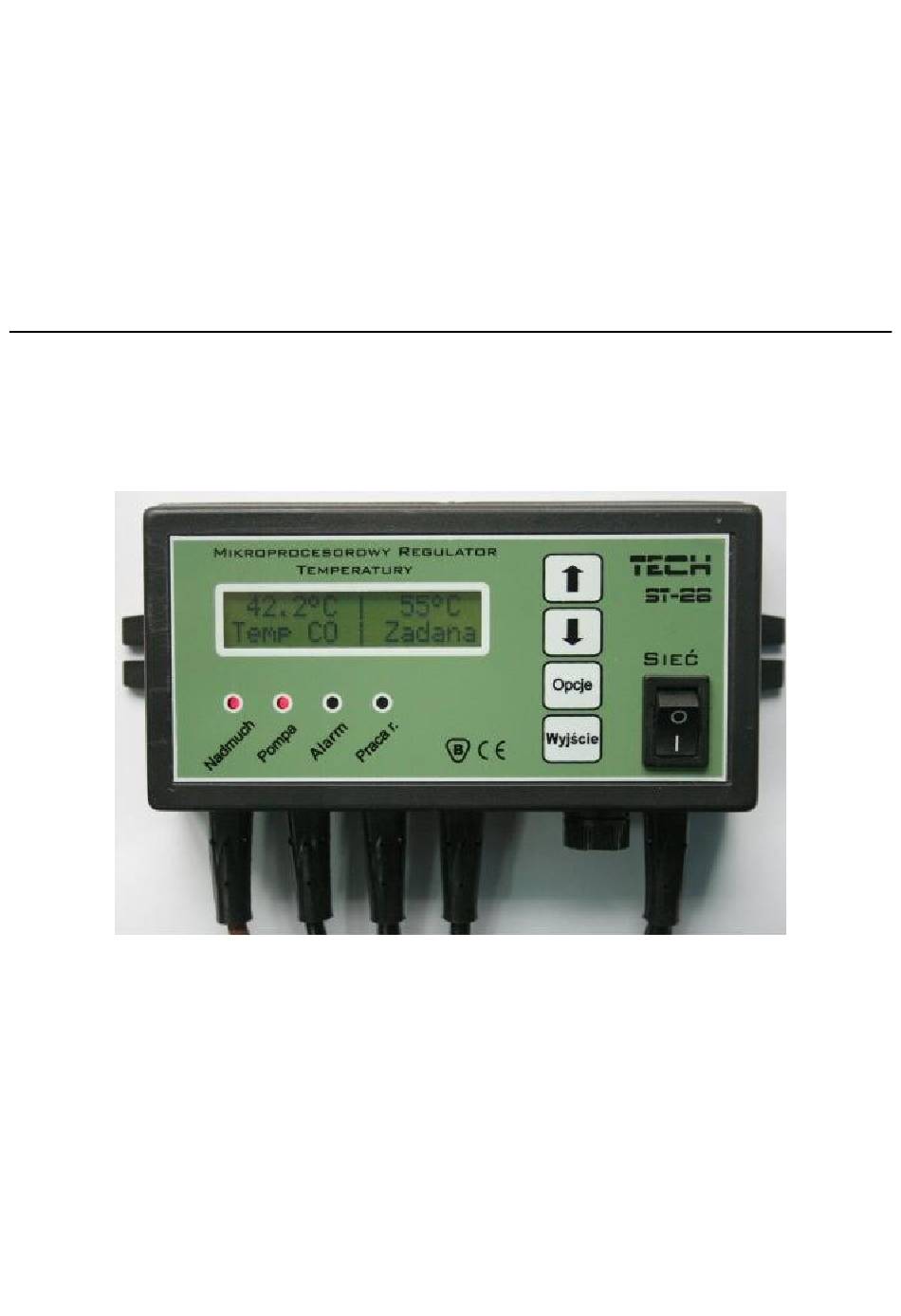

- Page 1 ST – 26 Manual Guide...
- Page 2 ST-26 – Manual Guide TECH Declaration of compatibility number 7/2006 We, the TECH Company, 14, St. Batorego Street, 34-120 Andrychów, declare with absolute liability that this thermoregulator ST – 26 230V, 50 HZ, produced by our company, fulfils the requirements of Ordinance of the Minister of Economy, Labour and Social Policy (Dz.U.
- Page 3 TECH Attention! HE LIVE ELECTRIC DEVICE Before doing any activities connected with power supply (connecting wires, installation of the device, etc) it is necessary to make sure that the regulator is not connected to the grid! Assembly and installation should only be carried out by qualified electrician.
- Page 4 I. Description The temperature regulator ST-26 is designed for the central heating boiler. It controls the circulation of water pump and air-blow (fan). If the temperature of the stove is lower than Set temperature, the ●...
- Page 5 TECH II. Functions of the regulator. This section describes functions of the regulator, the way of changing settings, and moving the menu. II.a) Main page CH temp req temp During normal working of the regulator in the LCD display you can...
- Page 6 ST-26 – Manual Guide Air blow pump Pressing OPTIONS buttons activates the air-blow. The air-blow remains activated till pressing again OPTIONS. Air blow Pump Pressing MENU turns on / off the water’s pump. pump ALARM Pressing MENU turns on / off the alarm II.d) Air-blow’s speed...
- Page 7 TECH II.e) Burning CH temp req temp Air-blow's break Air-blow's work This function is used to regulate working the boiler during its working in back-up mode. It prevents from extinguishing the boiler when the temperature of the boiler remains over set temperature.
- Page 8 ST-26 – Manual Guide II.g) Factory settings The fan is tentatively preset to work. However, you should adjust it to your own needs. In every moment it is possible to return to factory settings. CH temp req temp factory settings III.
- Page 9 TECH III.c) Temperature protection In the case of damage of bimetallic sensor the regulator has additional protection: after exceeding the 95°C temperature, the alarm is turned on and it is signaled on the display: A L A R M temp too high III.d) The fuse...
- Page 10 ST-26 – Manual Guide V. Service In the case of appearing faults you should contact with: TECH Civil Partnership 14, St. Batorego Street, 34-120 Andrychów, Poland Phone: +48 33 8705105, +48 33 8759380 VI. Assembly Attention: The assembly should be done only by the person with proper qualifications! The device in this time mustn’t be live (you should...
- Page 11 Spis treści II. Functions of the regulator.............5 II.a) Main page..............5 II.b) Lighting...............5 II.c) Manual Work..............5 II.d) Air-blow’s speed............6 II.e) Burning ...............7 II.f) Minimal revolutions............7 II.g) Factory settings............8 III. Protection.................8 III.a) Thermal protection............8 III.b) Automatic controlling the sensor........8 III.c) Temperature protection..........9 III.d) The fuse..............9 IV.
-
Page 12: Warranty
WARRANTY The TECH Company guarantees the buyer correct functioning of the device for 30 months from the date of purchasing. Guarantor obliges to repair without charge of the device if the fault appears from the guilt of the producer. The device should be delivered to the place where the product was purchased.
