Right Panel Connectors And Controls - Sound Devices 744T Quick Start Manual

1) XLR Input 1/AES3 Input 1&2
! Dual function input connection. Input type set
with switch above. Microphone- or line-level
input for input 1. Transformer-balanced two-
channel AES3 input (1 and 2).
2) XLR Input 2/AES3 Input 3&4
! Dual function input connection. Input type set
with switch above. Microphone- or line-level
input for input 2. or AES3 input (3 and 4).
3) Mic-Line-AES3 Input Switch
! Selects the input level and mode of the associ-
ated XLR input connector.
4) TA3 Channel 3&4 Line Inputs

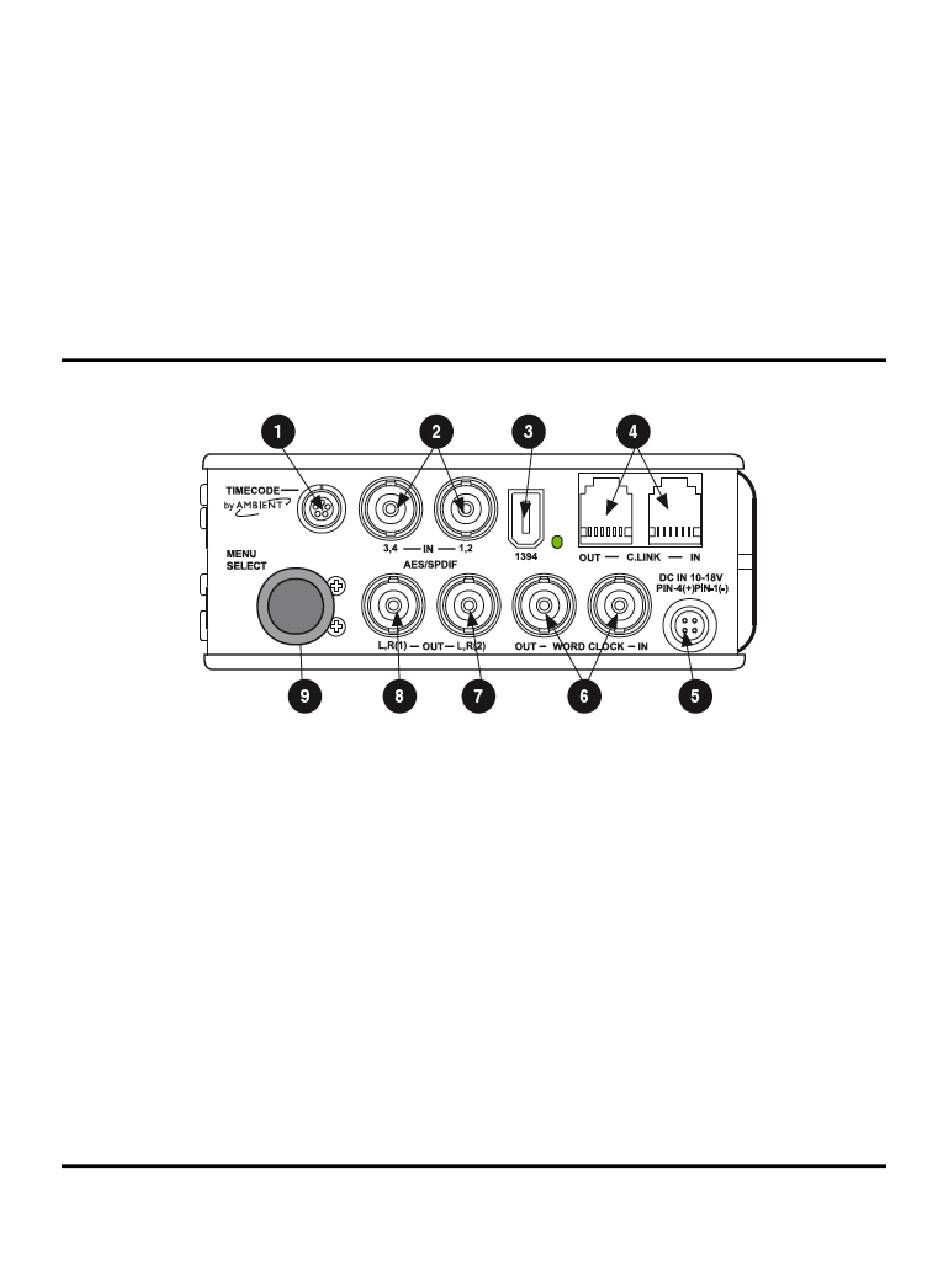

Right Panel Connectors and Controls

1) Time Code Multi-Pin
! Time code input and output on 5-pin LEMO
connector.
2) AES3id Inputs 1/2 and 3/4
! Unbalanced digital inputs accept four channels
of either AES3 or S/PDIF on BNC connectors.
3) FireWire (IEEE-1394) Port
! Connection to a computer to access the inter-
nal hard drive and Compact Flash volumes as
mass storage devices. Direct connection to Mac
OS (X-only) and Windows (XP- and 2000-only)
computers. Also used to attach external FAT32-
formatted FireWire drives.
4) C. Link In/Out
! RS-232 protocol interface on 6-pin modular
("RJ-12") connector for linking multiple 722
and 744T recorders together.
! Active-balanced line-level input connectors.
5) TA3 Master (L/R) Analog Outputs
! Active-balanced, line-level analog L/R out-
puts.
6) Headphone Output
! 3.5 mm TRS stereo headphone connector.
7) Headphone Volume
! Adjusts the headphone volume. NOTE: the
744T is capable of producing ear-damaging
levels in headphones.
8) Tape Output
! Unbalanced tape (–10 dBv nominal) output on
3.5 mm TRS stereo connector.
5) External DC In
! Accepts sources of 10–18 volts DC for unit
powering and removable Li-ion battery charg-
ing.
6) Word Clock Input and Out
! Provides clock input and output for the 744T.
7) AES3id Output Bus 2
! Unbalanced digital output, two-channel, for
Output Bus 2. Signal source is menu-selected.
8) AES3id Master Output Bus
! Unbalanced digital output, two-channel, for
the Master Output Bus.
9) Multi-Function Controller
! When in the setup menu, the controller scrolls
between menu selections; push enters selection
or enters data. In record and playback modes,
selects headphone monitor source.
4
