Tyco TY-B Series Manual

Series TY-B, 5.6 K-factor
Upright and Pendent Intermediate Level Sprinklers
Standard Response
General
Description

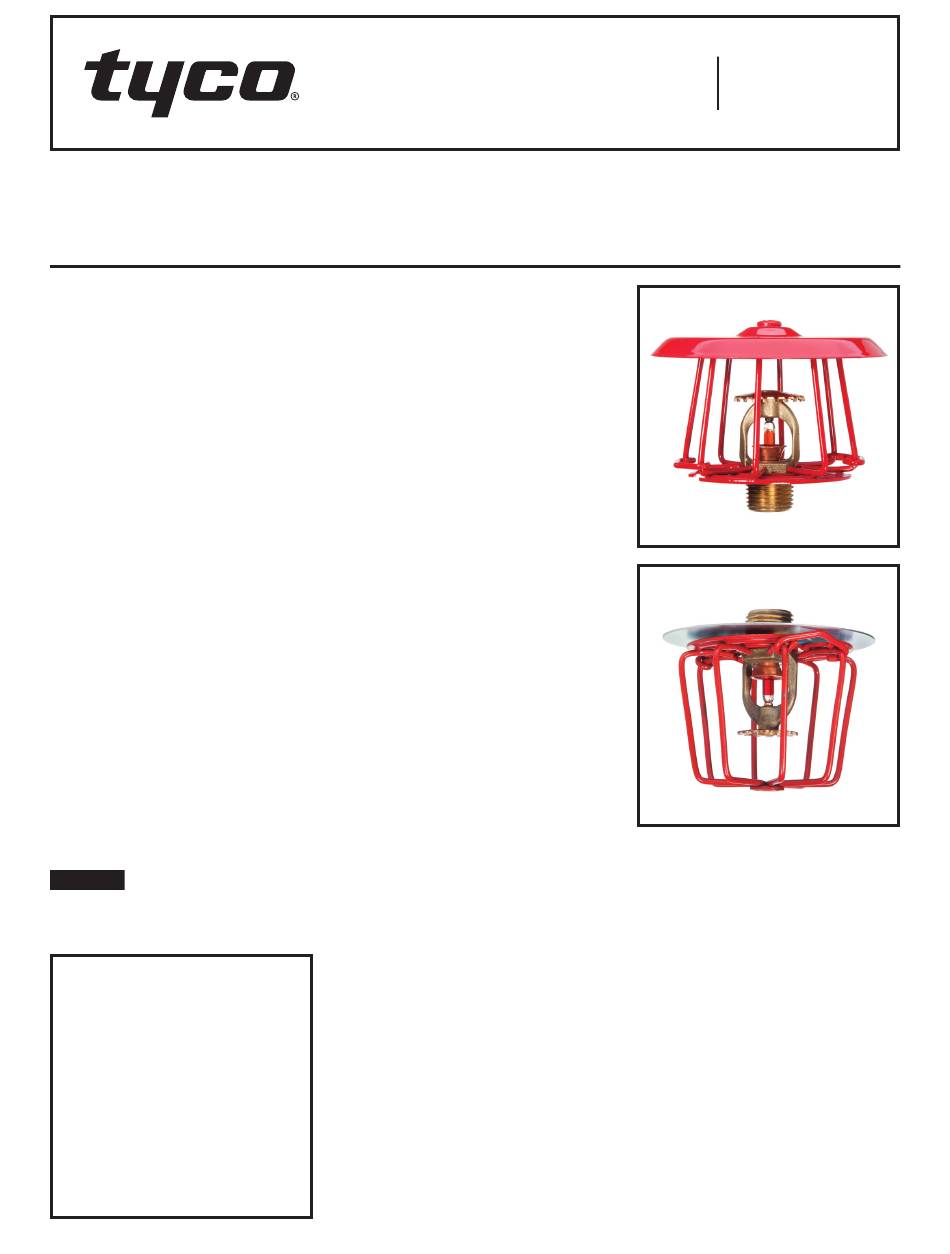

The Series TY-B, 5.6 K-factor Upright
and Pendent Intermediate Level Sprin-
klers described in this data sheet
are automatic sprinklers of the stan-
dard response 5 mm frangible bulb
type. They are standard spray sprin-
klers intended for use in fire sprinkler
systems designed in accordance with
the standard installation rules rec-
ognized by the applicable Listing or
Approval agency (e.g., UL Listing is
based on NFPA requirements). Both
the Pendent and Upright Sprinklers
produce a hemispherical water distri-
bution pattern below the deflector.
Intermediate Level Sprinklers are pri-
marily designed for use in rack storage
sprinkler systems where their thermally
sensitive elements must be shielded
from the water spray of higher ele-
vation sprinklers that could operate
earlier during a fire. Intermediate Level
Sprinklers are also used in other appli-
cations such as beneath open gridded
catwalks.
For additional Series TY-B Sprinkler
information, see Technical Data Sheet
TFP152. For additional Guard and
Shield information, see Technical Data
Sheet TFP780.
NOTICE
The Series TY-B Sprinklers described
herein must be installed and main-
tained in compliance with this docu-
IMPORTANT
Refer to Technical Data Sheet
TFP2300 for warnings pertaining to
regulatory and health information.
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
installation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Page 1 of 6
ment, as well as with the applicable
standards of the National Fire Protec-
tion Association, in addition to the stan-
dards of any other authorities having
jurisdiction. Failure to do so may impair
the performance of these devices.
The owner is responsible for main-
taining their fire protection system
and devices in proper operating con-
dition. Contact the installing contrac-
tor or product manufacturer with any
questions.
Sprinkler
Identification
Numbers
TY315 . . . . . . . . . . . . Upright 5 .6K, 1/2 in . NPT
TY325 . . . . . . . . . . . .Pendent 5 .6K, 1/2 in . NPT
Technical
Data
Approvals
UL and C-UL Listed
FM Approved
(Refer to Table A for complete approval
information.)
Maximum Working Pressure
175 psi (12,1 bar)
250 psi (17,2 bar)*
* The Maximum Working Pressure of 250 psi (17,2 bar)
only applies to the listing by Underwriters Laboratory.
Discharge Coefficient
½
K=5.6 GPM/psi (80,6 LPM/bar
Temperature Ratings
Refer to Table A
Finishes
TY-B Sprinkler . . . . . . . . . . . . . . . . . . . . . . .Brass
G1/S1 Guard with Shield. . . . . . . . . .Red or Zinc
G1 Guard . . . . . . . . . . . . . . . . . . . . . . Red or Zinc
S2 Shield . . . . . . . . . . . . . . . . . . . . . . . . . . . . Zinc
Physical Characteristics
Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . .Bronze
Button . . . . . . . . . . . . . . . . . . . . . . Brass/Copper
Sealing Assembly . . . Stainless Steel w/TEFLON
Bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Glass
Compression Screw . . . . . . . . . . . . . . . . .Bronze
Deflector . . . . . . . . . . . . . . . . . . . . . . . . . Copper
G1 and G1/S1 Guard. . . .Painted or Plated Steel
S2 Shield . . . . . . . . . . . . . . . . . . . . . .Plated Steel
AUGUST 2018
Worldwide
Contacts

Operation

The glass bulb contains a fluid which
½ expands when exposed to heat. When
)
the rated temperature is reached, the
fluid expands sufficiently to shatter the
glass bulb, allowing the sprinkler to
activate and water to flow.
Design
Criteria
The Series TY-B Upright and Pendent
Intermediate Level Sprinklers are
intended for fire protection systems
designed in accordance with the stan-
dard installation rules recognized by
the applicable Listing or Approval
agency (e.g., UL Listing is based on
the requirements of NFPA 13, and FM
Approval is based on the requirements
of FM's Loss Prevention Data Sheets).
www.tyco-fire.com
TFP352
