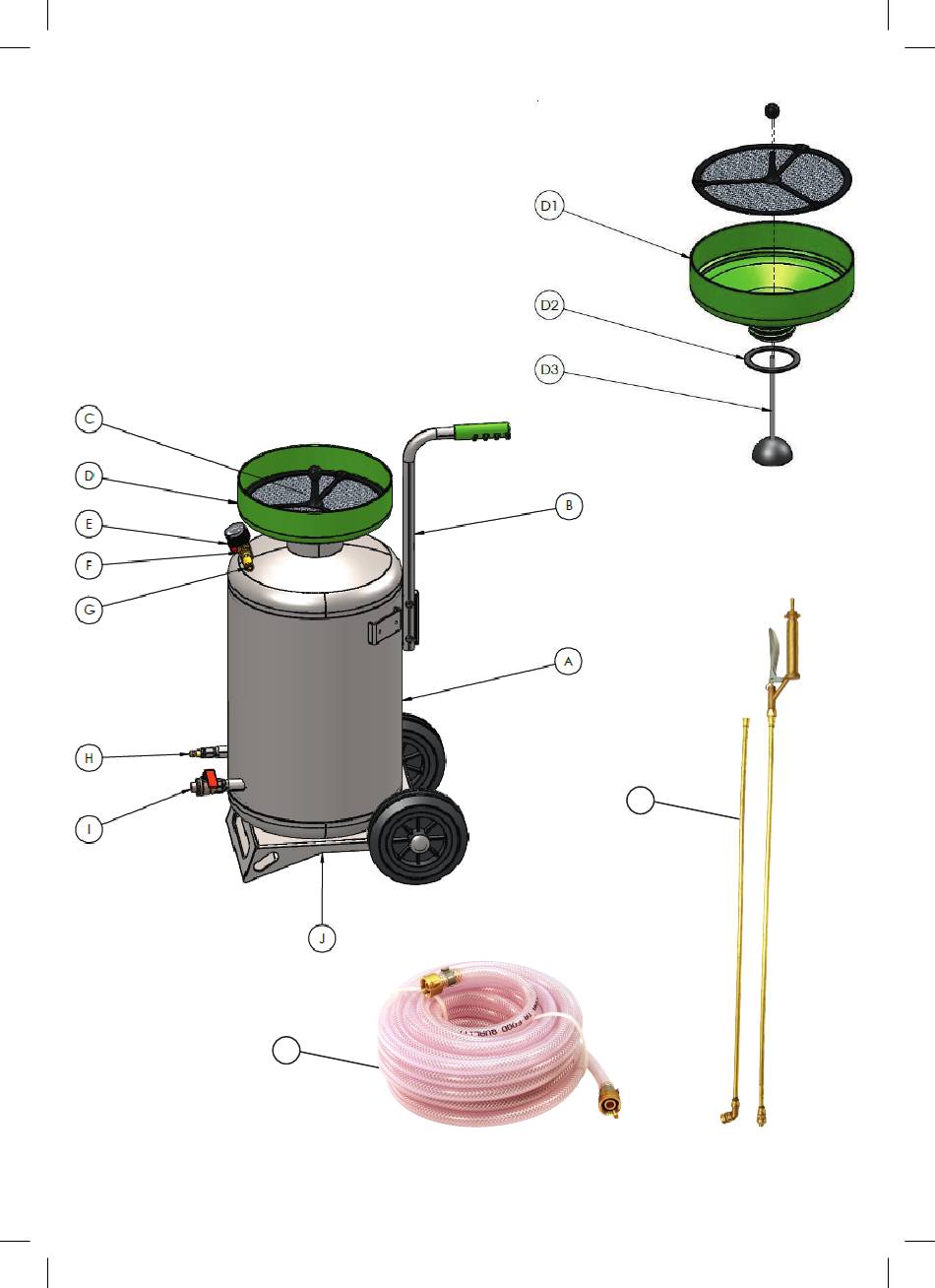

6.1 Anlieferungszustand
Das Gerät wird standardmäßig wie folgt ausgeliefert.
A Druckbehälter aus Edelstahl mit Rädern
B Handgriff – schraubbar (nicht montiert)
C Einfüllsieb (montiert)
D1 Einfülltrichter (montiert)
D2 Flachdichtung (montiert)
D3 Verschlussball (montiert)
E Abluft – Kugelhahn 1/4"
F Kreuzverteilerblock mit Manometer (montiert)
G Sicherheitsventil 5 bar (montiert)
H Anschlussnippel NW 7,2 mit Rückschlagventil (montiert)
I
Entnahmekugelhahn (montiert)
J
Reinigungskappe 1" mit Dichtung
K Kalk-Verlängerungsschlauch 10 m (beigelegt)
L Spritzengarnitur 7-tlg. kompl. (beigelegt)
M Bedienungsanleitung (beigelegt, ohne Abbildung)
K
L
7
