Using Dual View to View Extended Screen

You can expand the screen into two display devices and work conveniently in separate
workspaces.
In Dual View mode, you can select the screen resolution and colour quality for each
display device, as if there were two separate graphics cards.
1. Connect the external display device (e.g. a monitor or a projector) to the
corresponding port of the system. To connect a TV, connect the TV to the TV
output port of the system.("Connecting to a TV" (p103))
2. Press touchpad right button on the desktop, click Properties, and then click the
Settings tab.

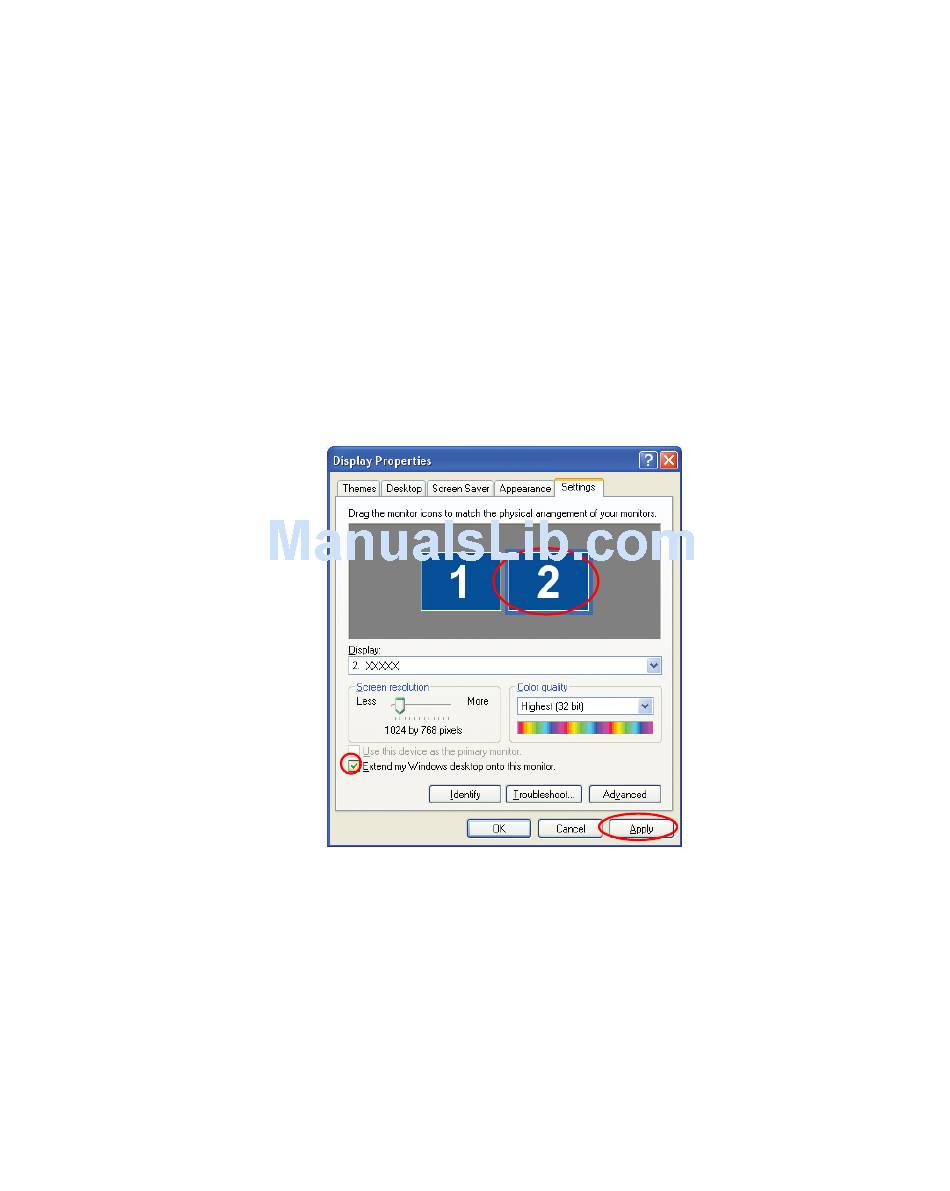

3. Click the monitor '2' icon, select the 'Extend my Windows desktop onto this
monitor' check box, and then click Apply.
4. When the configuration is complete, click Identify on the left side of
Troubleshoot. The primary display device(the LCD) is indicated as '1', and the
Customizing Your Computer 105
