Page 1 X20/X25/X50 1.0 Notices No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, mechanical photocopying, recording or otherwise, without the prior written permission of the manufacturer. The information within this manual is subject to change without notice. The manufacturer shall not be held liable for technical or editorial errors or omissions contained in herein;...
Page 2: Important Safety Information
Important Safety Information Safety Instructions Your system is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that the safety instructions marked on the product and in the documentation are followed.
Page 3: Care During Use
Do not put rechargeable batteries or products powered by non-removable rechargeable batteries in the garbage. Contact the Samsung Helpline for information on how to dispose of batteries that you cannot use or recharge any longer. Follow all local regulations when disposing of old batteries.
Page 4: Laser Safety
Laser Safety All systems equipped with CD or DVD drives comply with the appropriate safety standards, including IEC 825. The laser devices in these components are classified as “Class 1 Laser Products” under a US Department of Health and Human Services (DHHS) Radiation Performance Standard.
Page 5: Regulatory Compliance Statements
Regulatory Compliance Statements Wireless Guidance Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz Band, may be present (embedded) in your notebook system. The following section is a general overview of considerations while operating a wireless device.
Page 6 In environments where the risk of interference to other devices or services is harmful or perceived as harmful, the option to use a wireless device may be restricted or eliminated. Airports, Hospitals, and Oxygen or flammable gas laden atmospheres are limited examples where use of wireless devices may be restricted or eliminated.
Page 7: United States Of America
United States of America Unintentional Emitter per FCC Part 15 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 8: Fcc Part
The FCC has set a general guideline of 20 cm (8 inches) separation between the device and the body, for use of a wireless device near the body (this does not include extremities). This device should be used more than 20 cm (8 inches) from the body when wireless devices are on.
Page 9 If the terminal equipment causes harm to the telephone network, the Telephone Company will notify you in advance that temporary discontinuance of service may be required. But if advance notice is not practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary.
Page 10 Canada Unintentional Emitter per ICES-003 This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the radio interference regulations of Industry Canada. Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limitesapplicables aux appareils numériques de Classe B prescrites dans le règlement sur le brouillage radioélectrique édicté...
Page 11 Telecommunications per DOC notice (for products fitted with an IC-compliant modem) The Industry Canada label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operation, and safety requirements. The Department does not guarantee the equipment will operate to the users’...
Page 12: European Union
European Union The following information is only applicable to systems labeled with the CE mark European Directives This Information Technology Equipment has been tested and found to comply with the following European directives: • EMC Directive 89/336/EEC with amending directives 92/31/EEC & 93/68/ EEC as per –...
Page 13 European States qualified under wireless approvals: Austria, Belgium, Denmark, Finland, France (with frequency Germany, Greece, Ireland, Italy, Luxembourg, The restrictions), Netherlands, Portugal, Spain, Sweden and the United Kingdom. Accept EU Iceland, Liechtenstein, Norway and Switzerland European States with restrictions on use: In France, the frequency range is restricted to 2446.5-2483.5 MHz for devices above 10 mW transmitting power such as wireless LAN.
Page 14: Using Your Documentation
Using Your Documentation Congratulations on your purchase of a notebook computer with the Windows® XP operating system. Whether you are new to using a portable computer or are an experienced user, this user’s manual can help you get the most from your computer. Manual Documentation Conventions Information Icons Three icons and their associated messages appear in this manual.
Page 15: Software User Documentation
CD-ROM Device Naming Convention In many installation programs you will have to get a program from the CD-ROM device. The program installation sequence assumes that the CD is drive d:\, however this is not always the case. The name of the CD-ROM drive is the letter following the letter assigned to your last HDD.
Page 16: Getting Started

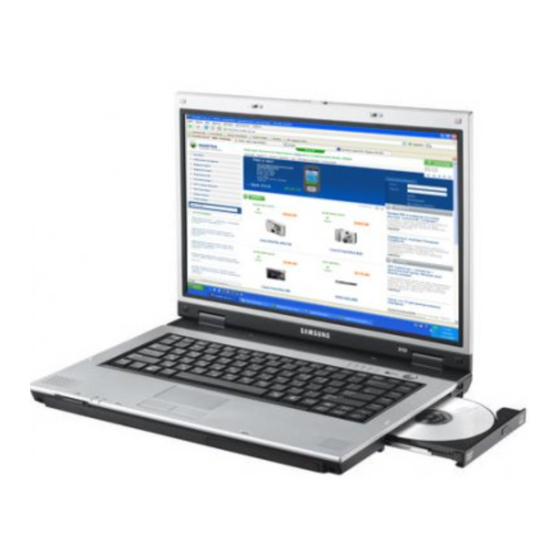

Getting Started Introducing Your Computer This User Manual is common to the X20, X25 and X50 models. The figures and descriptions in this User Manual have been selected for the X25 model.The photographs may be somewhat different in shape and colour from your computer depending on the model.
Page 17: Right View
About Fingerprint Sensor Fingerprint sensor is optional. (It is not supported for X20 model.) For products with fingerprint sensor, a Touchpad On/Off button is not provided. For procedures to use fingerprint sensor, refer to fingerprint sensor Manual. The operating lights of X50 are on the left-hand side of the microphone jack. Right View S/PDIF Jack CD Drive...
Page 18: Back View
The S/PDIF jack of X50 model is to the right of the Power-In port. Bottom View Battery Latches Docking Connector Memory Compartment(p112) Compartment Removing or disassembling the hard disk drive will void your warranty. To replace the hard disk drive, please contact your nearest Samsung Service Centre. Getting Started 5...
Page 19: Turning The Computer On And Off
Turning the Computer On and Off To turn on the computer 1. Insert the battery and connect the AC adapter according to the Installation Guide. 2. Slide the LCD latch to the right and open the LCD panel. 3. Press the power button. To turn off the computer 1.
Page 20 If the computer is not turned off properly due to a system error, press <Ctrl>+<Alt>+<Delete>. When [Windows Task Manager] dialog box appears, click Shut Down > Turn Off to turn off the computer. Your unsaved work may be lost/damaged. If <Ctrl>+<Alt>+<Delete> keys do not operate either, press the power button for more than 4 seconds to turn off the computer.
Page 21: Using The Keyboard
Using the Keyboard Your computer has an 88-key keyboard. By pressing designated key combinations, you can have access to all the key functions of a full-sized keyboard. Function & Special Purpose Keys Function Windows Embedded Numeric Keypad Screen Brightness and Application Key Volume Adjustment / Direction Keys...
Page 22: Using The Numeric Keypad
The keys on the keyboard can be grouped into the following categories: • Full-sized Alphanumeric typewriter keys are arranged like a standard typewriter keyboard and are used for text entry. The Windows keys on either side of the spacebar open Windows menus and perform other special functions. •...
Page 23: Using Special Function Keys
Using Special Function Keys The function key activates special functions when it is pressed in combination with another keys. <Fn> Key Key Name Key Function Combinations <Esc/ > Rest Puts the computer into suspended mode. To escape suspended mode, press the power button. (p103). <F2/ >...
Page 24 <F12/Scroll> Scroll Lock Scrolls the screen up and down while the cursor position does not change in some applications. < > Volume Down Decreases the audio volume. < > Volume Up Increases the audio volume. < > Brightness Up Makes the LCD screen brighter. <...
Page 25: Using The Touchpad
Using the Touchpad In Windows, you always see a small graphical image on the screen that indicates the location where you can take the next action. This image is called a pointer, and is usually displayed in arrow shape ( ) or ‘I’...
Page 26 You can perform various actions with your touchpad as described below. Action Function Process Move Move the pointer Place your finger on the touchpad and slide your finger to a destination. Click Select an object, open a menu, or Place the pointer over an object, execute a button then press left touchpad button once.
Page 27 Action Function Process Scroll Display upper/lower/left/right part Place your finger on the right edge of the content within a window or bottom edge of the touchpad and move vertically or horizontally. (Applicable to certain programs only) Please use the touchpad only with your finger. Using sharp devices may damage the touchpad.
Page 28: Hot Keys
Hot Keys AVStation now/AVStation now DVD button are provided for some models. Name Function AVStation Now / Pressing this button launches AVStation Now when the computer is Internet Button turned off or is in Power Saving Mode (S4). (”Using AVStation now” (p53)).
Page 29 Changing the Hot Key Setting You can change the program that will be launched when you press a hot key. As default, Windows Calculator is configured to launch when you press the User 1 button. You can set the program by completing the following procedure. 1.
Page 30: Reading The Status Indicators
Reading the Status Indicators Shows the operating status of the computer. Num Lock Turns on when the numeric keypad is activated. Caps Lock Turns on when all alphabet characters you type will be in upper case. Scroll Lock Turns on when it is set to scroll the screen up and down while the cursor position does not change in some applications.
Page 31: Adjusting Lcd Brightness
Maintaining your LCD brightness settings after turning the system off and on 1. Turn the system on. When the Samsung Logo appears, press the <F2> key to enter Setup. 2. In the Boot menu, change the Brightness Control Mode option to User Control.
Page 32: Adjusting The Volume
Adjusting the Volume To adjust using keyboard Press <Fn>+< > or <Fn>+< > from the keyboard. To adjust using volume adjustment program Click the Volume icon( ) on the taskbar, and move the Volume slider to a desired level. For advanced volume control options, double-click the Volume icon( ), and adjust the volume level in the volume control program.
Page 33: Introducing Windows
Introducing Windows Understanding the Desktop The desktop is the working area on the computer. It consists of the large workspace and a taskbar at the bottom. Shortcut Icons Start Menu Recycle Bin Language Bar Start Button Taskbar System Tray with Clock Start Button Opens the Start menu.
Page 34: Understanding The Start Menu
Understanding the Start Menu The Start menu includes everything that is required to start Windows. From the Start menu it is possible to run a program, open a file, assign system users with Control Panel, receive support by clicking Help and Support, and search desired items from the computer or Internet by clicking Search.
Page 35: Understanding A Window
Understanding a Window A window is the basic component in working with the computer. The My Computer window, which is a window for the computer's hard drive, will be used as an example here to show the basic composition of a window. Click Start >...
Page 36: Help And Support Center
Help and Support Center Help and Support Center provides references and troubleshooting information regarding computer use. Click Start > Help and Support. Windows XP Tour You can tour elementary functions provided by Windows XP. Click Start > Tour Windows XP. Or click Start >...
Page 37: Using The Computer
Using the Computer Using the CD Drive You have one of following drives installed in your computer. DVD-ROM drive Reads a CD/DVD. CD-RW/DVD-ROM Combo drive Reads a CD/DVD and writes a CD. DVD Dual Drive Reads CD/DVD, and writes data to CD/DVD. Supports DVD-R, and DVD-RW only for the DVD recording format.
Page 38 To eject a CD 1. Stop any process that accesses the CD drive and ensure the CD access LED is turned off. 2. Press the eject button on right side of the CD drive. 3. When the tray slides out, remove the CD from the tray. 4.
Page 39 To use the Windows Media Player The Windows Media Player allows you to play audio and video files from the computer or the Internet. To launch the Windows Media Player, click Start > All Programs > Accessories > Entertainment > Windows Media Player. Playlist Features Playback Control Area...
Page 40 To write data on a CD (Option) If your computer has CD-RW functionality, you can copy data to a blank CD or create an audio CD. An additional CD writing program is supplied in an additional CD. You cannot write to a CD that already has data in it. 1.
Page 41 6. When the CD Writing Wizard appears, enter the CD label, and click Next. The data begins copying. 7. When copying is completed, a ‘completed’ message appears and the CD drive window opens automatically. For more information on writing CDs Click Start >...
Page 42 Enjoying Home Theater (S/PDIF Port) Your computer supports 5.1 channel output, which is a basic function for home theater systems, and DVD drives. It provides 3D surrounding sound and vivid screen. What is a home theater system? Home theater system usually consists of a TV, DVD, 5.1 channel speaker, and digital amp and provides a high-resolution screen (MPEG2) and 3D surrounding sound (Dolby 5.1 or DTS).
Page 43 Step 1. Connect 5.1 channel speaker system to your computer 1. Connect the S/PDIF jack of the system and a 5.1 channel amplifier. 2. Connect speakers to the amplifier. (Refer to speaker’s manual. 3. To view through a TV, connect the TV and change the current display device to TV in the Display Properties.
Page 44 Step 3. Enable S/PDIF output on the DVD program To use 5.1 channel speakers, you need to install the Power DVD program from the DVD Installation CD provided with your computer, then change the settings as per the following. 1. Run Power DVD program and click the Settings icon ( 2.
Page 45: Using Memory Card Slot
Using Memory Card Slot You can use a Memory Stick (or Memory Stick Pro) and a SD (Secure Digital) card using the memory card slot. You can use the Memory Stick and the SD card as removable disks and can use them to transfer data between your computer and any digital equipment such as a digital camera..
Page 46: To Remove A Memory Card
1. Insert the memory card into the memory card slot. 2. Click Start > My Computer. The inserted memory card is displayed. Memory Stick SD Card 3. You can write data to the memory card. If the memory card is not formatted yet, format the memory card before use.
Page 47: To Format A Memory Card
To format a memory card You can use a memory card after the format operation. The procedures to format a memory card are described below. Since format operation deletes all data in the memory card, please make sure that there is no important data in the memory card before formatting. To protect the data in the memory card Set the write protection tab of the Memory Stick or SD memory card to the Lock position.
Page 48: Using The Pcmcia Card Slot
Using the PCMCIA Card Slot Various different functions can be added by inserting PCMCIA cards into the system. This system supports 16/32 bit, type I or II PCMCIA card types. The PCMCIA card slot does not support a ZV card or a PCMCIA III card. To insert a PCMCIA card Before using the PCMCIA slot, remove the slot protector.
Page 49: To Remove A Pcmcia Card
To remove a PCMCIA card 1. Double-click Safely Removes Hardware icon ( ) on the taskbar. 2. On the [Safely Remove Hardware] dialog box, select the appropriate PCMCIA card and click Stop. 3. When [Stop a Hardware Device] dialog box appears, click OK. 4.
Page 50: Using Easybox
Learn about EasyBox Double-click the EasyBox( ) icon on the desktop. (Or select Start > All Programs > Samsung > EasyBox > EasyBox.) • System: System management features are available, including disk defragmenter, removing unnecessary files/folders, computer scheduling and system recovery.
Page 51: Configuring Firewall
The Windows Firewall prevents unauthorized users from gaining access to your system via the network or the Internet. 1. Click Start > All Programs > Samsung > EasyBox > EasyBox. 2. Click Security from the top menu bar. 3. Select Windows Firewall Settings from the Security menu on the left.
Page 52: Using Samsung Smart Screen
If you select OK, the program is automatically launched when you start your computer. 2. Samsung Smart Screen appears. When you run the program for the first time, water drop image is displayed.
Page 53: Using Avstation Premium
AVStation premium is provided for some models. AVStation premium is an integrated multimedia program that allows you to watch video (pictures, video and movies) and listen to music. Select Start > All Programs > Samsung > AVStation premium > AVStation premium. (Alternatively, double-click the...
Page 54 - This Manual mainly describes the procedures for using the Standard mode of AVStation premium. - The captured program screen shots in this manual may differ slightly from the actual software depending on the version of the program. - For more detailed use procedures, refer to the on-line Help. AVStation Premium Screen Layout and Menus Menu Bar Menu Selection Bar...
Page 55: Playing A Music File
CD into the CD-ROM drive. Insert an Audio CD window appears, select using When the Samsung AVStation premium and Then the audio CD is played. click OK. - To play an audio CD in the CD-ROM drive, double-click CD from the Category and double-click on Audio CD when Audio CD appears in the bottom screen.
Page 56 Copying an audio CD to the Computer audio CD into the CD-ROM drive. Insert an Audio CD window appears, select using When the Samsung AVStation premium and click OK. library and then select Select a track to be copied to the Tools > Copy from CD.
Page 57: Burning An Audio Cd
Burning an Audio CD blank CD into the CD-ROM drive. When the window appears, Insert a CD Drive click C ancel 2. Select Tools > Burn CD. Select Burn CD 3. Select Burn Audio CD and click Next. left title and double-click Double-click Music in the All musics.
Page 58 PHOTO This section describes the procedures to view pictures (images), to view pictures through a Slide Show, to edit a picture, to create an album, and to burn an album onto a CD. Click Menu Selection Bar. on PHOTO in the Viewing and Editing a Picture 1.
Page 59: Creating An Album
Creating an Album 1. Select the Create Album tab. album cover style and click Apply to apply the selected style to the album Select an cover. title and contents of the album, insert an image and then click (Move to Enter the next page).
Page 60: Playing A Movie
Library Window You can adjust the screen size in the View menu. Playing a DVD Title You can only play a DVD title after installing a DVD player program, Samsung DVD(Power DVD). 1. Insert a DVD title into the DVD drive.
Page 61: Editing A Movie
Movie Editor (Editing a Movie) This section describes the procedures for editing a movie. Click on Menu Selection Bar. MOVIE EDITOR in the Editing a Movie The procedures for merging two movie files and for inserting transition effects between movies are described below. new project will open.
Page 62 • Select an effect from the E tab and drag and drop the selected Screen Effect : ffect effect onto the movie in the Storyboard to apply the effect. • Select a Transition effect from the tab and drag and drop Transition : Transition the selected effect onto the movie in the Storyboard to apply the transition...
Page 63 Using Play Mode This section describes how to use the Play Mode of AVStation Premium. To use Play Mode, select Mode > Play Mode in the Standard Mode Menu Bar. Play Mode Screen Layout The initial screen of AVStation premium Play Mode has the following layout. Move Bar Exit Program This appears only when...
Page 64 Playing a Music File 1. Double-click a category from the left category window 2. Double-click a music file in the right library window. The music will be played. Playing an Audio CD Insert an audio CD into the CD-ROM drive .
Page 65 Playing a DVD Title 1. Insert a DVD title into the DVD drive. 2. When the Select Work window appears, select using Samsung AVStation premium and click OK to play the DVD title. If the DVD is not automatically played or the DVD title was in the DVD drive, double-click the Title of the DVD in the DVD / VCD category.
Page 66: Using Avstation Now
Using AVStation now AVStation now is provided for some models. AVStation now is an integrated multimedia program that allows you to watch video (pictures, video and movies) and listen to music without turning the computer on. Using AVStation now How to launch AVStation now and the AVStation features will be described below. The use procedures of AVStation now are similar to those of Play Mode of AVStation premium.
Page 67 Exiting AVStation now < > key to move to the initial screen of AVStation now. Press the < > key in the initial screen. Press the Or Select < > using the direction keys on the keyboard and press < >.
Page 68 Using AVStation now The procedures for using AVStation now will be described below. To Move, Select and Run Menus You can use AVStation now by using only the keyboard. • Moving a M enu or an Item Move a menu or an item by using the keys on the keyboard.
Page 69 Playing Multiple Tracks 1. Play a music file. 2. Move the focus to the left Category pane, and select the Play All button. Playing an Audio CD 1. Insert an audio CD into the CD-ROM drive, and select CD from the Category pane.
Page 70 MOVIE The procedures for playing a video (movie) file or a DVD/VCD title will be described below. menu and select a category. For example, you can select All Select the MOVIE Movies by using the direction keys. right direction key and then press the Move to a movie file in the Library pane using the <...
Page 71 Tips • Using the Library (File) AVStation Now can use the library of AVStation Premium. To use the library in AVStation Now, register the library in AVStation Premium. (See ”Registering a File” on page 49) • HDD Category You can play unregistered files on the hard disk drive in the HDD category of each menu.
Page 72: Using Samsung Update Plus
Update Plus, your computer has to be connected to the Internet. To Update Samsung Software and Drivers 1. Select Start > All Programs > Samsung > Samsung Update Plus > Samsung Update Plus. If this is the first time you are running the program, a window will appear asking you if you agree to the agreement in the window.
Page 73 Here you will be able to find the latest available updates. To change the automatic update settings, click the Configuration button in Figure 2 and change the settings. Samsung Update Plus does not provide updates for additionally installed software and device drivers. 60 Users Manual...
Page 74: Using Samsung Theme
Using Samsung Theme Samsung Theme is a program that enables a user to easily switch a theme (desktop, logon screen and sound effect). Double-click the Samsung Theme ( ) icon on the desktop. (Or select Start > All Programs > Samsung > Samsung Theme > Samsung Theme.)
Page 75: Connecting To The Internet
Connecting to the Internet Connecting with a Modem Before Start: • Prepare a telephone line that is not digital. • Contact an internet service provider (ISP) for instructions on how to connect to and disconnect from the Internet. 1. Connect a telephone line to the computer’s modem port. 2.
Page 76 Connecting Through a Wired LAN 1. Connect a LAN cable to the computer’s LAN port. 2. Click Start > Control Panel. 3. Click Network and Internet Connections in the [Control Panel] window. 4. Click Network Connections in the [Network and Internet Connections] window. 5.
Page 77 6. On the General tab, select “Internet Protocol(TCP/IP)” and click Properties. 7. To use DHCP: On the General tab, select “Obtain an IP address automatically” and “Obtain DNS server address automatically”. Click OK. To use a static IP: On the General tab, select “Use the following IP address” and fill in the IP address, Subnet mask, Default gateway, Preferred DNS server, and Alternative DNS server fields.
Page 78: Using Samsung Network Manager
1. Connect LAN cable to the computer's LAN port. 2. Double-click Samsung Network Manager icon on the desktop. Or click Start > All Programs > Samsung Network Manager > Samsung Network Manager. 3. When you are using DHCP, available IP's are displayed in the status dialog box.
Page 79 To change network places You can change network places as below. 1. Connect LAN cable to the computer's LAN port, and double-click Samsung Network Manager icon on the desktop. If you used static IP in previous place, previous static IP is displayed in the status dialog box.
Page 80: To Share An Internet Connection
Internet Connection Share service, and the client, which is a computer that will use the Internet Connection Share service. To configure the server 1. Connect the network (LAN) cable and double-click the Samsung Network Manager icon on the Desktop. 2. Click Click here to setup Internet Connection Share.
Page 81 3. The computers are represented by an icon. Click the server computer. Server Client 4. In the server, select a device that is directly connected to the Internet. If you select Use Firewall, you can use the Windows Firewall.If you are using an external modem, select the network card connected to the external modem.
Page 82 To configure the client 1. Connect the network (LAN) cable and double-click the Samsung Network Manager icon on the Desktop. 2. Click Click here to setup Internet Connection Share. 3. The computers are represented by icons. Click the client computer.
Page 83 Connecting Through a Wireless LAN (Option) A wireless network (Wireless LAN) environment is a network environment that enables communication between multiple computers at home or a small-size office through wireless LAN devices. Using the wireless network connections between the systems, you can use normal network functions such as sharing of files, folders and printers.
Page 84: Connecting To An Access Point (Ap)
2) Computer-to-computer (ad hoc) This is also called a peer-to-peer network. In computer-to-computer wireless networks, you can wirelessly connect 2 or more computers that have wireless LAN modules. For details, see “Connecting to computer- to-computer networks (peer-to-peer or ad hoc)” on page 73. Connecting to an Access Point (AP) This section describes how to connect to an AP.
Page 85 2. Select an AP (E.g. Test) to connect to and click Connect. If there is a configured network key for the AP to connect to, the Enter Network Key window appears. Enter the Network Key in the window and then click the Connect button. When a network key is not defined for a selected AP, click on Link to display the warning message box.
Page 86 Connecting to computer-to-computer networks (peer-to-peer or ad hoc) In computer-to-computer wireless networks, you can wirelessly connect 2 or more computers that have wireless LAN modules. Using this method, a computer that is not connected to the Internet can share the Internet by accessing another computer connected to the Internet.
Page 87 Click Change the order of Preferred Networks. 3. On the Wireless Network tab, click Advanced. 4. Clear 'Automatically connect to non-default network' check box, if it is selected. Select 'Computer-to-computer (ad hoc) networks only', and click Close. 5. In the Wireless Networks tab, click Add. 74 Users Manual...
Page 88 6. Enter the network name (e.g. samsung), and unselect 'The key is provided for me automatically'. Enter the encryption key in the Network key field, and click OK. To prevent a network connection from an unauthorized user, it would be better to configure a network key (encryption key).
Page 89 7. Check that the configured network name (e.g. samsung) is in the ’Preferred networks’ item, and click OK. Now your wireless network setup has been completed. Step 2. Connecting to the configured computer 1. Right-click on the Wireless Network Connection ( ) icon on the taskbar, and select View Available Wireless Networks.
Page 90 2. Select the wireless network name (e.g. samsung) specified in ”Connecting to computer-to-computer networks (peer-to-peer or ad hoc)” on page 73, and click Connect. 3. Enter a cryptographic key in the network key box and click Connect. If the network key is not configured in ”Connecting to computer-to-computer networks (peer-to-peer or ad hoc)”...
Page 91 Checking the connection status Move the mouse pointer over the Wireless Network Connection ( ) icon on the taskbar, and the connection status is displayed. 78 Users Manual...
Page 92: Wireless Network Setup Using The Wireless Lan Setup Program
Wireless Network Setup Using the Wireless LAN Setup Program You can use a wireless LAN by using a wireless LAN configuration program (PROSet) provided separately. To use wireless network connection, complete the following procedures. • Step1. Install the wireless LAN configuration program (PROSet). •...
Page 93 To connect to an Access Point: To connect to an access point or existing computer-to-computer (Ad Hoc) network, refer to the following procedures. (To create a new computer-to-computer network, refer to the following "To create computer-to-computer (Ad Hoc) network" section.) 1.
Page 94 Network name (SSID) is a name that a wireless adapter uses for identifying connection. Enter the name of computer-to-computer network to create (e.g., samsung) or the name of access point to connect. The network name identifies cases. (capital and lowercase) For the name of access point, check the settings of the access point, or ask your wireless network administrator.
Page 95 3. Configure password setting to be used for computer-to-computer network connection in the Security Settings window. To connect to an access point, enter the network authentication, data encryption (WEP), encryption level, key index, and wireless security password configured in the access point. It is recommended to configure data encryption for security purposes when creating a computer-to-computer network connection profile.
Page 96: Using Network Services
Using Network Services While the computer is connected to the network, you can use network services to share files, folders, and printers. Network services are provided for the computers that are connected to the network through wired or wireless network connections. For details, see “Connecting Through a Wired LAN”...
Page 97 Step 1. Configuring Sharing 1. Right-click the target file or folder to share in My Computer, and select Sharing and Security. 2. Click 'IF you understand the security risks but want to share files without running the wizard, click here'. It has the same security effect as that of the 'Network Setup Wizard'.
Page 98: Sharing Printers
Step 2. Using Shared Files or Folders This section describes how to access shared files or folders if your computer is a member of the same workgroup. 1. Double-Click My Network Places of desktop under Other Places. 2. Click 'View workgroup computers', and click the desired computer to access the shared file.
Page 99 Step 1. Configuring Printer Sharing 1. From the computer connected to the printer, click Start > Printers and Faxes. 2. Right-click the printer you want to share, and click Sharing. 3. Select 'Share this printer', enter a share name for the shared printer, and click OK. 4.
Page 100 5. Select 'Browse for a printer', and click Next. 6. Select the workgroup or computer, select the desired printer, and click Next. If you cannot find the desired printer, try again after a while. 7. Read the warning about a shared printer, and click Yes to install the shared printer. 8.
Page 101 Using Bluetooth Devices (Optional) You can transfer files between Bluetooth devices, use the Internet, and construct a Personal Area Network. In addition, you can use a wireless keyboard, wireless mouse, and a wireless printer that have the Bluetooth function. You can only use the Bluetooth communication function between devices (computers, mobile phones, PDAs, printers, etc.) which support Bluetooth.
Page 102 • Using a wireless printer You can use a wireless printer if the printer supports Bluetooth HCRP (Hardcopy Cable Replacement Profile). For more detailed procedures on using a wireless printer, refer to “Install a Bluetooth printer” of the Bluetooth On-line help. •...
Page 103: Customizing Your Computer
Customizing Your Computer Using System Setup The System Setup (BIOS) program enables you to configure your computer hardware and set security and power-savings options. The settings you choose are stored in battery-maintained CMOS memory that saves the information even when the computer’s power is turned off.
Page 104: Starting System Setup
Starting System Setup To start System Setup, turn on your computer and then press <F2> and hold until the System Setup screen appears. Table 2. System Setup Menus Menu Function Main Changes the basic system. Advanced Configures advanced features on your computer. Security Enables security features, including passwords.
Page 105: Changing Booting Priority
Changing Booting Priority You can select the booting priority among the devices such as the hard drive, CD-ROM drive, etc. The following example describes how to configure the hard drive as the first booting device when the CD-ROM drive is configured as the first booting device by default.
Page 106: Configuring The Password
Do not lose or forget your password. If you have forgotten your password, contact the Samsung service center. 1. Select the Security menu in the System Setup. To enter System Setup, see “Starting System Setup” on page 91.
Page 107 Activating the Booting Password Before activating the booting password, the supervisor password must have been configured. Set the Password on boot option to [Enabled]. From now on, system booting will not proceed without the password. Deactivating the Password 1. On the password to delete, press <Enter>. (e.g. supervisor password) 2.
Page 108: Configuring Resolution And Color Depth
Configuring Resolution and Color Depth Screen resolution is the number of pixels displayed on the screen. High resolution makes the overall screen area large, although individual items appear small. Color quality is determined by the number of bits used to represent a pixel on the screen. High color quality displays more number of colours on your screen.
Page 109 3. When you have completed configuration, click Apply. For XGA models, configuring the screen resolution to 1024x768, and the colour quality to Highest (32 bit) is recommended. For SXGA+ models, configuring the screen resolution to 1400x1050, and the colour quality to Highest (32 bit) is recommended. For UXGA models, configuring the screen resolution to 1600x1200, and the colour quality to Highest (32 bit) is recommended.
Page 110 Using External Display Devices(ATI Chipset model, (p 95)) Using external display devices such as monitors, projectors, TVs, etc allows you to view screen images alternatively or simultaneously on each device. Additionally, you can extend the screen onto two display devices to use a larger workspace. Using external display devices is especially useful when you are giving a presentation or watching a movie through your TV.
Page 111 2. Click the Settings tab > Advanced 3. Click the Display tab. 4. Select YPbPr On/Off. YPbPr On/Off YPbPr 5. Click Apply. 6. Click YPbPr. 7. Select the appropriate TV type in the YPbPr Properties window and Click Apply. 2. Press the <Fn>+<F4/ >...
Page 112: Using Dual View To View Extended Screen
Using Dual View to View Extended Screen You can expand the screen into two display devices and work conveniently in separate workspaces. In Dual View mode, you can select the screen resolution and colour quality for each display device, as if there were two separate graphics cards. 1.
Page 113 secondary display device is indicated as '2'. Now you can view the screen through two monitors. 1 : Primary 2 : Secondary When you use Dual View, configuring the LCD as the 'Primary' monitor is recommended. If the screen of the secondary display device is displayed at 640x480 pixels, with 256 colours, change the settings to the desired screen resolution and colour quality in the [Display Properties] dialog box.
Page 114 Using External Display Devices(Intel Chipset mode, (p 95)) Using external display devices such as monitor or projector, you can view the screen images alternatively or simultaneously. You can extend the screen into two display devices to use larger workspace. Using external display devices would be especially useful when you are giving presentations or watching a video file.
Page 115 To switch display devices using shortcut key You can switch display devices easily by pressing <Fn>+<F4/ > shortcut key. Provided that multiple external display devices are connected, the display order is LCD > CRT > TV > LCD+CRT > LCD+TV > LCD whenever the <Fn>+<F4 / >...
Page 116: System Management
System Management Using Power Management Options Your computer includes Power Management options that can help the battery charge last longer and extend the life of the battery. Power-management options will slow down or shut off system components when the components are not being used. Power management may slow down system performance.
Page 117 3. Click the Power Schemes tab to display the basic power management options. By default, the power scheme is configured to SAMSUNG mode. SAMSUNG mode extends the battery life and optimizes the Intel Speedstep function. Since the CPU power consumption is automatically...
Page 118 If You Reinstall Windows: Power You should re-establish hibernate in power options by opening Options Properties window and click on the Hibernate tab then click “Enable Hibernation”. Hibernate Tab Frequent Interruptions: If you experience frequent interruptions, you might also consider putting your computer into automatic hibernation after a specified number of minutes using the power management options.
Page 119 Advanced Power Management Schemes This section discusses the advanced power management schemes. There are two buttons that you can use to manually conserve power. To enter the power management window complete the following: 1. Click Start > Control Panel > Performance and Maintenance. 2.
Page 120: Using The Battery
Using the Battery Please refer to the following instructions when running the computer on battery power without connecting the AC power. Please read the instructions on the battery before use. Please refer to the system operation environment (p149) of this manual and operate and store the battery at room temperature.
Page 121: Monitoring The Battery Charge
Monitoring the Battery Charge You can view the battery charge status by completing the following procedures. To use the shortcut key to view Press the <Fn>+<F2/ > key combination on the keyboard and then the current power source and the current remaining battery charge are displayed at the top left of the screen.
Page 122: Using The Battery Manager
Using the Battery Manager program, you can change the configuration of the LCD brightness, the sleep timer and system devices, and can extend the battery usage time to maximum. Click on Start > All Programs > Samsung > Samsung Battery Manager > Samsung Battery Manager. Change Mode...
Page 123 • Maximum Performance Mode : This mode provides maximum system performance at the cost of the battery. Therefore, the battery usage time may be reduced in this mode. • Custom Mode : In this mode, a user can configure a detailed configuration to save the battery usage time.
Page 124: Battery Calibration
Battery Calibration Calibrating your battery once a month is one of the recommended methods of increasing your computer’s battery life. To calibrate the battery complete the following steps: Calibration Notes: You should start the battery calibration process with a fully charged battery, battery status LED is green.
Page 125: Removing The Memory Module
Upgrading Memory This computer has one or more 128 MB or 256 MB memory module(s). Two memory module sockets are provided so that you can replace memory or install an additional memory module. Removing the memory module Before removing/replacing the memory module, turn the system off completely.
Page 126: Adding A Memory Module
Adding a memory module 1. Align the new memory module connectors accordingly and slide it into the slot at ° a 30 angle. Ensure the notch on the memory module corresponds with the notch on the socket. 2. Push the memory module in until the module clicks into place. If the memory module is not fixed completely, gently push the memory down while pressing the memory module tabs outward.
Page 127: Using The Security Lock Port
Using the Security Lock Port The security lock is a device used to physically 'fix' the system when using it in a public place. The locking device needs to be purchased separately. The shape and methods of use may differ depending on the manufacturer. Please refer to the manual provided with the security lock for proper use.
Page 128: Tips For Using Your Computer
Tips for Using Your Computer The following information helps you avoid potential problems as you use your computer: Do not try to disassemble your computer. Opening the system chassis voids your warranty. Only an authorised manufacturer service center can replace or add any parts inside the chassis.
Page 129: Travelling With Your Computer
Travelling with Your Computer Air Travel If you are travelling by air, follow these tips: • Take the computer with you as carry-on luggage. Do not check the computer with your baggage. • Allow the computer and disks to go through the X-ray security devices. Do not hand-carry disks through the walk-through metal detectors, which can cause loss of data.
Page 130: Storing The Computer For Long Periods
Storing the Computer for Long Periods If you will not be using the computer for a long period of time (a month or more), you should discharge the battery completely then remove the battery from the computer. This extends the life of the battery. System Management 117...
Page 131: Troubleshooting
Recovery CD to reinstall OS and System Software CD to reinstall the corrupt device drivers. System Recovery Precaution: Before you start restoring your windows operating system insure you backup all data on your hard drive. Samsung is NOT responsible for any data loss. 118 Users Manual...
Page 132: Questions And Answers
Questions and Answers This section provides information on possible problems, solutions and other references for system use. Windows Related Q1 The system does not shutdown properly. When the system does not shutdown normally, press and hold the Power button until the system manually shuts off. If the Power-Saving Mode is configured into the Power button, press and hold for more than 4 seconds to shut the system off.
Page 133: Display Related
Display Related Q1 The LCD screen is too dark or too bright Adjust the LCD screen brightness. Use the <Fn>+< >, <Fn>+< > keys. Q2 The screen saver disturbs screen viewing during Media Player or video file operation. Unselect Tools > Options > Player > Allow screen saver during playback in the Media Player.
Page 134 Q7 A DVD or an MPEG file is only played on the LCD (ATI chipset model) When both the LCD and the CRT are being used simultaneously, video plays on one of them by default. Right-click over the Desktop and select Properties. In the [Display Properties] window, click the Settings tab >...
Page 135: Modem Related
Modem Related Q1 I cannot hear the modem sound. Check that the telephone line is properly connected to the modem. Check that the modem driver is installed properly. Click Start > Control Panel > Performance and Maintenance > System. Select Hardware tab > Device Manager > Modems in the System Properties window, and check if there is a yellow exclamation mark on the installed modem icon.
Page 136 - Using an AT command As an initialization command, use the command, ATX3. Otherwise, enter the ATX3 command manually before making a call. It can correct this problem by skipping the dial tone check step. - Configuring the Modem through the Control Panel Click Start >...
Page 137: Wired Lan Related
In the Modems tab, select the installed modem, and click Properties. In the Power Management tab of the Modem Properties window, select the “With this device, exit the computer from stand-by mode” item and then click OK. The above setting enables the modem to turn on the system and receive a fax when in power saving mode.
Page 138: Wireless Lan Related
Wireless LAN Related Refer to ”Connecting Through a Wireless LAN (Option)” (p70) for the basic uses of a wireless LAN. Q1 The Wireless LAN device is operating properly, but I cannot connect to the Internet or to another computer. This is due to an incorrect configuration, or a configuration error. Check the following check lists: If you are using a computer-to-computer (Ad Hoc) network connection, check that the name of the configured network (SSID) is correct.
Page 139 Q3 I cannot share an Internet connection. It may require some time to synchronize the computers to share an Internet connection after the Internet connection sharing configuration is completed. If you cannot share Internet connection even after a longer period, restart the computer.
Page 140 - Verify whether the AP's firmware is the most recent version. (Contact the AP manufacturer or the place where you purchased the AP for details of the AP firmware.) Verify whether the AP has been properly connected to the network. Verify whether the network is operating normally by connecting the wired network cable, which has been connected to the AP, to your computer.
Page 141 disable the [View Available Wireless Networks] window supported by WZC service. Exit the wireless LAN related program then check whether the window is enabled. Initialize the device driver. Click Start > Control Panel > Performance and Maintenance > System > Hardware tab >...
Page 142 Q7 When using a computer-to-computer (Ad Hoc) network, sometimes I cannot search the access point. It may happen occasionally when you are using a computer-to-computer (Ad Hoc) network connection. Even if you cannot find some access points, the computer-to-computer (Ad Hoc) network is operating properly. Click Refresh to view the latest search result.
Page 143 Check the properties of the AP in the wireless network settings. If the ’Use IEEE 802.1x authentication in this network’ option is selected, deselect the option on the Authentication tab. For more detailed information about authentication server, ask your network administrator.
Page 144: Games And Programs Related
Games and Programs Related Q1 3D game is not executed, or some functions are not working. Change the graphic setting of the game to '2D' or 'Software Renderer', then execute the program again. Q2 I launched a game right after installing it, and the game is not executed. This problem may occur when the game is not compatible with Windows XP.
Page 145 Q5 <Fn+F4/ > Key combination does not work. While displaying video of VCD or MPEG, or the display setting is Dual View, you cannot toggle display devices. Also the installation of NetWare Client 32 program disables the function of <Fn+F4/ >.
Page 146 Click the PowerPlay Settings button, and set the Plug-In, High Battery and Low Battery sliders to ‘Optimal Performance’ and then click Apply. (Intel chipset models) This may happen when using the DFGT function. Right-click over the Desktop and select Graphics Option > Graphics Properties >...
Page 147: Security Center
Security Center Q1 To change the popup window display settings when connected to the Internet. In the Windows XP SP2 environment, you can decide whether to display a popup window when connected to the Internet, for user convenience and security. To display most of the popup windows when connected to the Internet: Click on Internet Options in Start >...
Page 148 Q3 When you see a Windows Security Alert icon ( ) appear on the right part of the task bar. With the Security Center feature added, Windows XP SP2 checks the Firewall, the automatic updates configuration and installation of virus-checking programs to display a Windows Security Alert icon on the right part of the task bar when it judges that the computer is vulnerable to attacks from the Internet.
Page 149 If Windows does not recognize the existence of an anti-virus program even when it has been installed, your computer could be vulnerable to attacks from the Internet. You should install an anti-virus program that your computer is able to identify. Check the following programs which Windows can detect and select one from the list.
Page 150 Component TV Related Q1 On a component TV, the Full Screen DOS Mode screen does not display. A component TV does not support the Full Screen DOS Mode screen due to an output power problem of the TV. Please use DOS mode in a window when using a component TV.
Page 151 This happens when the TV does not support the component TV mode configured in the video driver. 1. Click Display Properties > Settings > Advanced > Display tab > YPbPr button. 2. Select the relevant modes (480i, 480p, 540p, 720p,1080i,16:9) and click the Apply button.
Page 152: Restoring The System
Restoring the System This description is only for models running Window XP. The System Restore function allows you to restore your computer to an earlier copy (called restore point), and restores the settings if a problem occurs.The System Restore function is provided by Windows XP to enable the resolution of various problems without reinstalling Windows XP completely.
Page 153: Returning Your Computer To An Earlier Restore Point
2. Select "Create a restore point", and click Next. Since changes made after the Recovery Point may not be maintained, please back-up all necessary files to another location before performing system recovery. 3. In the Restore point description box, type a name to identify the restore point, and than click Create.
Page 154 2. Select "Restore my computer to an earlier time", and then click Next. 3. Select the desired restore date from the calendar restoration and select the desired restore point from the list, and then click Next. The date of the restore point is displayed in bold font. 4.
Page 155: Undoing The Last Restoration
5. After the restoration is complete, Windows restarts. In the [System Restore completed] dialog, click OK.Your computer has been restored to the selected restore point. Undoing the last restoration The procedures to undo a restoration are described below. 1. Click Start > All Programs > Accessories > System Tools > System Restore. 2.
Page 156: Reinstalling Software
Reinstalling Software If you have reinstalled the Windows operating system, or the system and program do not operate properly, you can re-install the driver and program using the system software CD. This computer is optimized for Microsoft Windows XP, therefore driver other than the ones included in the System Software CD are not provided.
Page 157: Installing Drivers And Programs
Installing drivers and programs 1. Click Standard Installation in the main window of the System Software CD. (Standard Installation is recommended) 2. The system is scanned to display the drivers and programs that need to be installed. 3. Click OK. The drivers and programs are automatically installed as factory defaults.
Page 158: Reinstalling Windows Xp
Reinstalling Window may delete the data on the hard disk drive such as files, programs, etc. In order to minimize damage from data loss, please remember to always back up data. Samsung Electronics is not liable in the case of data loss, please consult your warranty statement for clarification.
Page 159 • Standard installation: You can change the settings for partitioning, the installation folder, etc. during the Windows installation. However, reinstalling Windows may delete the data on the hard disk drive such as files, programs, etc. In order to minimize damage from data loss, please remember to always back up data.
Page 160 8. When a window that requires your name and organization pops up, enter your name and the organization and click Next. In the Windows XP Professional edition, an additional window that requires the computer name and the administrator password appears. Enter the computer name and the administrator password and click Next.
Page 161 If You Cannot Run Windows If you cannot run Windows, you have to boot the system with the system recovery CD, and reinstall Windows. If you boot the system from the system recovery CD, you can install Windows only with the user installation option. You cannot install with the standard installation option.
Page 162: System Specification
Specifications System Specification The system specifications will be described below. The system specifications may differ depending on the derived models. X20 Model (with an Intel Graphics Chipset) Item Specification Remarks Intel Pentium M 1.6~2.13GHz / Dothan (FSB533) Optional Cache memory 2MB (Dothan) Main memory 256/512/1024 MB DDR2 SDRM, 2 DDR socket...
Page 163 The system specifications are subject to change without notice. For detailed system specifications, refer to the product catalog. *) This is a product that is currently being developed and will be sold in the near future. **) Using the AC adapter (60W) in other models may cause a system malfunction. Please use only an AC adapter specified in the system specification.
Page 164 X25 Model Item Specification Remarks Intel Pentium M 1.6~2.13GHz / Dothan (FSB533) Optional Cache memory 2MB (Dothan) Main memory 256/512/1024 MB DDR2 SDRM, 2 DDR socket Max 2GB Main Chipset Intel 915GM (Alviso PM) / 82801FBM (ICH6-M) Hard disk drive (HDD) 2.5", UltraDMA100, S.M.A.R.T 9.5mmH CD drive CD-RW / DVD-Rom Combo Graphics...
Page 165 X50 Model Item Specification Remarks Intel Pentium M 1.6~2.13GHz / Dothan (FSB533) Optional Cache memory 2MB (Dothan) Main memory 256/512/1024 MB DDR2 SDRM, 2 DDR socket Max 2GB Main Chipset Intel 915GM (Alviso PM) / 82801FBM (ICH6-M) Hard disk drive (HDD) 2.5", UltraDMA100, S.M.A.R.T 9.5mmH CD drive CD-RW / DVD-Rom Combo Graphics...
Page 166: Product Specification
Wireless LAN Specification (Optional) Intel(R) PRO/Wireless 2200BG Network Connection Product Specification Item Detailed Specifications Physical Dimensions (Width X Height) 59.75 X 44.45 mm Specifications operation temperature and Same as system operation humidity Temperature: 0°C ~ 70°C Humidity: less than 85% Power Specification Power Saving Mode 135 mW...
Page 167 PROSet may be required depending on the network settings. For driver update, visit www.samsung.com and for information on the PROSet installation, refer to ”Wireless Network Setup Using the Wireless LAN Setup Program” (p79). For more information, ask your network administrator.
Page 168 Radio Specifications RF Band 2.4GHz, 5.725~5.825GHz Support Channels 1~13 channel, 149~161 channel (See "Regulatory Notice for Channel Use in France".) Device Transceiver Standard Output Power 5 mW Transmission Method 11a mode: OFDM 11b mode: DSSS 11g mode: OFDM Transmission Rate (Mbps) * 11a mode** 11b mode: 11, 5.5, 2, and 1 11g mode*** : 54, 48, 36, 24, 18, 12, 9, and 6...
Page 169 Abbreviations A ..Amperes AC ..Alternating current ACPI ..Advanced Configuration and Power management Interface APM ..Advanced Power Management ATA.
Page 170 ISA ..Industry Standard Architecture KB ..Kilobytes kg ..Kilograms LAN..Local-area network lb..
Page 171 Glossary AC adapter The AC (or alternating current) adapter regulates current coming into your computer from the wall outlet. The current at the wall outlet is alternating current and needs to be changed by the adapter to DC (direct current) before your computer can use it for power.
Page 172 CardBus CardBus technology enables the computer to use 32-bit PC Cards. Hardware in the computer and the Windows operating system provide support for the 32-bit cards. The voltage of 32-bit cards (3.3 volts) is lower than that of 16-bit cards (5 volts).
Page 173 Hard drive Also called fixed disk. A hard drive is connected to the computer and can be installed or removed. Data written to a hard drive remains until it is overwritten or corrupted. The 2.5-inch hard drive in your computer was designed for use in a notebook computer.
Page 174 PC Card PC Card stands for personal computer card. The Personal Computer Memory Card International Association (PCMCIA) defines the standards used to develop all PC Cards. PC Card types include: modems, Ethernet adapters, SCSI adapters, ATA cards, and memory cards. PC slot The PC slot is the hardware slot in the computer where the PC Card is placed.
Page 175 Shadow RAM A write-protected area of RAM that contains a copy of the BIOS. As the computer boots, the BIOS is copied from its permanent location in ROM to RAM. The BIOS can be executed much faster in RAM than in ROM. The BIOS remains in shadow RAM until you turn off the computer.
Page 176: Getting Started
SAMSUNG X20/X25/X50 BA68-02805A10 041210 Chapter 1 Chapter 1 Getting Started This chapter provides basic information for using this computer. System overview and methods for general use are provided.
Page 177: Introducing The Computer
Introducing The Computer Front View LCD Latch LCD Panel Hot Keys Status Indicators Power Button Keyboard Touchpad The Touchpad On/Off Touchpad Button Button (P. 1-7) or Fingerprint Identification System (Optional) Microphone Status 3D Speaker (R) Indicators Jack 3D Speaker (L) Headphone Jack Memory Card Slot This User Manual is common to the X20, X25 and X50 models.
Page 178: Right View
Right View S/PDIF Jack CD Drive (Optional) USB 2.0 Port The S/PDIF jack of the X50 model is at the rear of the system. Left View Fan Vents 1394 Port (6Pin) Modem Port LAN Port Monitor Port PCMCIA Card Slot Chapter 1.
Page 179: Rear View
The S/PDIF jack of the X50 model is to the right of the Power-In port. Bottom View Battery Latches Docking Connector Memory Compartment HDD Compartment Removing or disassembling the hard disk drive will void your warranty. To replace the hard disk drive, please contact your nearest Samsung Service Centre. Manual...
Page 180 Turning the Computer On and Off Turning On 1. Insert the battery and connect the power according to the supplied Installation Guide. 2. Lift up the LCD panel and open it to a comfortable angle. 3. Press and then release the power button to turn the system on. Power Button Turning Off 1.
Page 181: Changing Users
Creating and Changing User Accounts Multiple users can be registered in a single system so that each user may use their own customized working environment. Procedures to register and change user accounts are provided below. ■ Registering a new user 1.
Page 182 Touchpad Movement of the pointer (arrow) on the screen will correspond to movement made with a finger on the touchpad. Touchpad Touchpad buttons The Touchpad On/Off Button the two buttons below the touchpad A touchpad On/Off button is not provided for provide identical functions to buttons systems with the fingerprint identification system.
Page 183: Using The Touchpad Scroll Function
■ Drag (Move / Select) Drag and drop a part to the required place. This button is held down Place the touchpad pointer on the title bar of the window. ■ Using the Touchpad Scroll Function The touchpad has a scroll function, which can be used like the wheel dial of a wheel mouse.
Page 184: Special Function Keys
Using the Keyboard Function Keys <Fn> Key <Fn> Key Numeric Keypad Screen Brightness and Volume Adjustment / Direction Keys ■ Special Function Keys: The <Fn> key activates special functions when pressed in combination with other keys. Key Com- Function binations Name REST Puts the computer into suspended mode.To use the...
Page 185 Key Com- Function binations Name Turns the touchpad function on and off. Touchpad Low-Noise You can select Low-Noise Mode when you need a tranquil work envi- ronment. Mode Num Lock Puts the computer into suspended mode. To use the computer again, press the power button.
Page 186 Hot Keys AVStation now / AVStation now DVD’ buttons are provided for some models. ➊ ❷ ❸ ❹ ➊ AVStation Now / Internet Button : Pressing this button launches AVStation Now when the computer is turned off or is in Power Saving Mode (S4). (See ‘Chapter 3, Using AVStation Now’.).
Page 187: Status Indicators
Status Indicators Shows the operating status of the computer. Icon Name Description Num Lock Turns on when the numeric keypad is activated. Caps Lock Turns on when all alphabet characters you type will be in upper case. Scroll Lock Turns on when it is set to scroll the screen up and down while the cursor position does not change in some applications.
Page 188 Maintaining your LCD brightness settings after turning the system off and on 1. Turn the system on. When the Samsung Logo appears, press the <F2> key to enter Setup. 2. In the Boot menu, change the Brightness Control Mode option to User Control.
Page 189: Adjusting The Volume
Adjusting the Volume ■ To adjust using keyboard Press <Fn>+< > or <Fn>+< > from the keyboard. ■ Using the Volume Control Program On the taskbar, click the Volume ( ) icon, and adjust the slide bars. For advanced volume control options, double-click the Volume ( ) icon, and adjust the settings in the [Master Volume] dialog.
Page 190: Proper Seating Posture During Computer Use
Proper Seating Posture During Computer Use The proper seating posture during computer use is provided here. Maintaining proper posture during computer use enhances performance and prevents physical bodily harm. If necessary, use a footrest to raise the level of your knees and ease the pressure on the thighs.
Page 191 1-16 Manual...
Page 192 Chapter 2 Chapter 2 Introducing Windows This chapter provides basic information on using the computer’s main operating system Windows.
Page 193: Windows Xp Basics
SAMSUNG P10 Windows XP Basics Windows is the computer’s main operating system, which needs to be familiarized with in order for efficiently computer use. Windows XP Tour A tour of the elementary functions provided by Windows XP. Click Start > Tour Windows XP.
Page 194 Understanding the Desktop The Desktop is the working area on the computer. It consists of the large workspace, which is more or less the entire the screen and a Taskbar at the bottom. Desktop Icons You can directly launch a program. Start Menu Recycle Bin Language Bar...
Page 195 Understanding the Start Menu The Start Menu includes everything that is required to start Windows. From the Start Menu it is possible to run a program, open a file, assign system users with the Control Panel, receive support by clicking Help and Support, and search desired items from computer or Internet by clicking Search.
Page 196 Understanding a Window A window is the basic component in working with the computer. The My Computer window, which is a window for the computer’s hard drive, will be used as an exam- ple here to show the basic composition of a window. Click Start >...
Page 197 Help and Support Center Help and Support Center provides references and troubleshooting information regarding computer use. Click Start > Help and Support. Displays Help Index Related help information appears when a search keyword is entered. Connect to Support Center. The computer has to be connected to the Internet Help Topics Computer information...
Page 198: Document Operations
Document Operations To create documents, WordPad or NotePad, which is included in Windows, or a separate specialized word processor program can be used, such as MS Word. Instructions for creating documents using WordPad is provided here. ■ Creating a New Document 1.
Page 199: Opening A Document
■ Opening a Document 1. Click Start > All programs > Accessories > WordPad. 2. Select File From the Menu, and click Open. 3. Click on the Look in field and specify the folder in which the file is saved. 4.
Page 200: Using The Computer
Chapter 3 Chapter 3 Using The Computer This chapter investigates various different functions of the computer and provides information on using the related application programs for them.
Page 201: Using The Cd-Rom Drive
Using the CD-ROM Drive This computer has one of the following CD drives. - DVD-ROM Drive Reads a CD/DVD. - CD-RW/DVD-ROM Read a CD/DVD, and writes data onto a CD. Combo Drive - DVD-Multi Drive Reads CD/DVD, and writes data to CD/DVD. Supports DVD-R, DVD-RW only for the DVD recording format.
Page 202: Using The Windows Media Player
Using the Windows Media Player The Windows Media Player enables the user to configure and play video and audio files from the computer or the Internet. Click Start > Windows Media Player. Or click Start > All Programs > Accessories > Entertainment > Windows Media Player.
Page 203: To Play An Audio Cd
To Play an Audio CD 1. Insert an audio CD into the CD drive, and a list of all available players is displayed automatically. 2. Select Windows Media Player, and click OK to play the audio CD. To Play a Video CD 1.
Page 204: To Write Data In Cd
To Write Data in CD If your computer has CD-RW functionality, you can copy data to a blank CD or cre- ate an audio CD. An additional CD writing program is supplied in an additional CD. 1. Insert a blank CD into the CD-RW drive. 2.
Page 205 4. Select, drag and drop folders or files to copy onto the CD-ROM drive window. Click Write Files to CD in the CD-ROM drive window. CD-ROM drive window 1. Drag and drop folders or files to copy 2. Click Write Files to CD My Computer window 5.
Page 206: Enjoying Home Theater
Enjoying Home Theater This product supports 5.1 channel output, which is a basic function for home theater systems, and DVD drives. It provides 3D surround- ing sound and vivid screen. Home theater system usually consists of a TV, DVD, 5.1 channel speaker, and digital amp and provides a high-resolution screen (MPEG2) and 3D sur- rounding sound (Dolby 5.1 or DTS).
Page 207 ■ Step 2. Configure digital sound output on the computer 1. Click Start > Control Panel > Sounds, Speech and Audio Devices > Sounds and Audio Devices. 2. In the Device volume field on the Volume tab, click Advanced. 3. In the [Master Volume] dialog, click Option > Advanced Controls. Then Advanced button is displayed on the bottom of the dialog.
Page 208 Using Memory Card Slot You can use a Memory Stick (or Memory Stick Pro) and a SD (Secure Digital) card using the memory card slot. You can use the Memory Stick and the SD card as removable disks and can use them to trans- fer data between your computer and any digital equipment such as a digital camera.
Page 209 3. You can write data to the memory card. If the memory card is not formatted yet, format the memory card before use. Since the memory card may be easily mislaid when moving your computer, keep the memory card separately. To remove a memory card 1.
Page 210: Working With Pcmcia Cards
Working with PCMCIA Cards Various different functions can be added by inserting PCMCIA cards into the system. This system supports 16 / 32 bit, type I or II PCMCIA card types. Before using the PCMCIA slot, remove the slot protector. Push the eject button of the PCMCIA card slot once to pop it out.
Page 211: Using Easybox
Learn about EasyBox Double-click the EasyBox( ) icon on the desktop. (Or select Start > All Programs > Samsung > EasyBox > EasyBox.) System : System management features are available, including disk defrag- menter, removing unnecessary files/folders, computer scheduling and system recovery.
Page 212 The Windows Firewall prevents unauthorized users from gaining access to your system via the network or the Internet. 1. Click Start > All Programs > Samsung > EasyBox > EasyBox. 2. Click Security from the top menu bar. 3. Select Windows Firewall Settings from the Security menu on the left.
Page 213 1. Click Start > All Programs > Samsung > Samsung Smart Screen. When you launch Samsung Smart Screen for the first time, a dialog box asking whether to register the program as a start program or not appears. If you select OK, the program is automatically launched when you start your computer.
Page 214 Using Samsung Theme Samsung Theme is a program that enables a user to easily switch a theme (desktop, logon screen and sound effect). Double-click the Samsung Theme ( ) icon on the desktop. (Or select Start > All Programs > Samsung > Samsung Theme >...
Page 215 AVStation premium is an integrated multimedia program that allows you to watch video (pictures, video and movies) and listen to music. Select Start > All Programs > Samsung > AVStation premium > AVStation premium. (Alternatively, double-click the AVStation premium ( ) icon on the Desktop or in the Notification Area.)
Page 216 ■ AVStation Premium Screen Layout and Menus The AVStation Premium Standard mode screen has the following layout. Menu Selection Bar Menu Bar Category Window Library Window AVStation Premium Standard mode consists of the following 4 menus. MUSIC : Using this menu, you can play music files or audio CDs, copy audio CDs to the computer as well as burn audio CDs.
Page 217 1. Insert an audio CD into the CD-ROM drive. 2. When the Audio CD window appears, select using Samsung AVStation premium and click OK. Then the audio CD is played. - To play an audio CD in the CD-ROM drive,...
Page 218 Copying an audio CD to the Computer 1. Insert an audio CD into the CD-ROM drive. 2. When the Audio CD window appears, select using Samsung AVStation premium and click OK. 3. Select a track to be copied to the library and then select Tools > Copy from CD.
Page 219 ■ Creating a Playlist A Playlist is a list of selected music files that has been created by a user so that the selected files can be played later. 1. Select the music files to be included in the Playlist from the music category and click on Add.
Page 220 PHOTO This section describes the procedures to view pictures (images), to view pictures through a Slide Show, to edit a picture, to create an album, and to burn an album onto a CD. Click on PHOTO in the Menu Selection Bar. ■...
Page 221 ■ Creating an Album 1. Select the Create Album tab. 2. Select an album cover style and click Apply to apply the selected style to the album cover. 3. Enter the title and contents of the album, insert an image and then click (Move to next page).
Page 222 Samsung DVD(Power DVD). 1. Insert a DVD title into the DVD drive. 2. When the Select Work window appears, select using Samsung AVStation premium and click OK to play the DVD title. If the DVD does not automatically play or the DVD title is in the DVD drive, double-click the Title of the DVD in the DVD / VCD category.
Page 223 Movie Editor (Editing a Movie) This section describes the procedures for editing a movie. Click on MOVIE EDITOR in the Menu Selection Bar. ■ Editing a Movie The procedures for merging two movie files and for inserting transition effects between movies are described below. 1.
Page 224 Screen Effect : Select an effect from the Effect tab and drag and drop the selected effect onto the movie in the Storyboard to apply the effect. : Select a Transition effect from the Transition tab and Transition drag and drop the selected effect onto the movie in the Storyboard to apply the transition effect.
Page 225 Using Play Mode This section describes how to use the Play Mode of AVStation Premium. To use Play Mode, select Mode > Play Mode in the Standard Mode Menu Bar. ■ Play Mode Screen Layout The initial screen of AVStation premium Play Mode has the following layout. Move Bar Exit Program This appears only when the...
Page 226 Playing a Music File 1. Double-click a category from the left category window 2. Double-click a music file in the right library window. The music will be played. Playing an Audio CD 1. Insert an audio CD into the CD-ROM drive. Audio CD will be displayed in the library window.
Page 227 Playing a DVD Title 1. Insert a DVD title into the DVD drive. 2. When the Select Work window appears, select using Samsung AVStation premium and click OK to play the DVD title. If the DVD is not automatically played or the DVD title was in the DVD drive, double-click the Title of the DVD in the DVD / VCD category.
Page 228: Using Avstation Now
Using AVStation now AVStation now is provided for some models. AVStation now is an integrated multimedia program that allows you to watch video (pictures, video and movies) and listen to music without turn- ing the computer on. Using AVStation now How to launch AVStation now and the AVStation features will be described below.
Page 229 ■ AVStation now Menus AVStation now consists of the following 3 menus. Menu MUSIC : Using this menu, you can play a music file or an audio CD. PHOTO : Using this menu, you can view a picture (image) and view a picture through the Slide Show.
Page 230 ■ MUSIC The procedures for playing a music file or an audio CD will be described below. 1. Select the MUSIC menu and select a category. For example, you can select All Music by using the direction keys. 2. Move to a music file you wish to play in the Library pane using the right direction key and then press the <Enter>...
Page 231 All Images Image Files Category Pane Library Pane Media Play Control Button MUSIC You can listen to the music files in My Playlist or All Music while working. Viewing an Image through the Slide Show or Full Screen Select Slide Show or Full Screen from the menu at the bottom of the zoomed-in on image screen, and then press the <Enter>...
Page 232 Playing a DVD/VCD title Insert a DVD/VCD title into the DVD-ROM drive and select DVD/VCD from the Category pane. After a short while, the DVD/VCD title will be played Using the DVD/VCD Play Control Button To use the Play Control button while playing a DVD/VCD title, press the <Space Bar>...
Page 233 Using Samsung Update Plus Samsung Update Plus is software that examines and updates Samsung software and drivers installed on your Samsung computer to the latest version. To use Samsung Update Plus, your computer has to be connected to the Internet. ■...
Page 234 To change the automatic update settings, click the Custom button in Figure 2 and change the settings. : Samsung Update Plus does not provide updates for additionally installed software and device drivers. Chapter 3.Using The Computer...
Page 235 3-36 Manual...
Page 236: Connecting To The Internet
Chapter 4 Chapter 4 Connecting to the Internet This chapter provides instructions on connecting to the Internet.
Page 237 Connecting to the Internet The following options show many ways to connect to the Internet. An appropriate option should be selected depending on the user’s work- ing environment and the user’s system specifications. Option 1 Connecting using a modem and a telephone line. Service has to be applied for and received from an Internet Service Provider (ISP) through an Internet service account.
Page 238: Connecting To The Internet Using A Modem
Connecting to the Internet Using a Modem 1. Connect the telephone line to the modem port. Do not use a digital telephone line. 2. To connect the modem to the Internet, and use e-mail, you have to apply to an Internet Service Provider (ISP) for an Internet service.
Page 239: Configuring The Network Environment Settings For Wired Lan Connections
Configuring the Network Environment Settings for Wired LAN Connections A wired LAN environment is an environment where you can connect to the Internet using the company’s LAN or with a broadband modem. 1. Connect the network (LAN) cable to the LAN port of the system. 2.
Page 240 7. In the “This connection uses the following items” field, select Internet Protocol (TCP/IP), and click Properties. Check the driver Select “Internet Protocol (TCP/IP)” Click Properties In the above screen, necessary network components can be added by clicking the Install button. 8.
Page 241 1. Connect LAN cable to the computer’s LAN port. 2. Double-click Samsung Network Manager icon on the desktop. Or click Start > All Programs > Samsung Network Manager > Samsung Network Manager. 3. When you are using DHCP, available IP’s are displayed in the status dialog box.
Page 242 To change network places You can change network places as below. 1. Connect LAN cable to the computer’s LAN port, and double-click Samsung Network Manager icon on the desktop. If you used static IP in previous place, previous static IP is displayed in the status dialog box.
Page 243 Internet Connection Share service. To configure the server, 1. Connect the network (LAN) cable and double-click the Samsung Network Manager icon on the Desktop. 2. Click Click here to setup Internet Connection Share.
Page 244 8. The current location is represented as a server. The server configu- ration is complete. To configure the client, 1. Connect the network (LAN) cable and double-click the Samsung Network Manager icon on the Desktop. 2. Click Click here to setup Internet Connection Share.
Page 245: Using Both Dhcp And Static Ip Simultaneously
Using Both DHCP and Static IP Simultaneously When you are alternatively using networks with either DHCP or static IP address- ing, you can use alternative settings that enable simultaneous configurations of DHCP and static IP to use both of the network connections without reconfiguring. This function is provided only when your operating system is Windows XP.
Page 246 Configuring the Network Environment Settings for Wireless LAN Network (WLAN) A wireless network (Wireless LAN) environment is a network environment that enables communication between multiple computers at home or a small-size office through wireless LAN devices. When a computer-to-computer network has been constructed, a computer that is not connected to the Internet can share the Internet by accessing another computer connected to the Internet.
Page 247: Connecting To An Access Point
Connecting to an Access Point (AP) This section describes how to connect to an AP. You can use the network when you are connected to an AP. For more detailed information such as the network key (encryption key), ask your network administrator.
Page 248 Connecting to computer-to-computer networks (peer-to-peer or ad hoc) In computer-to-computer wireless networks, you can wirelessly connect 2 or more computers that have wireless LAN modules. Using this method, a computer that is not connected to the Internet can share the Internet by accessing another computer connected to the Internet.
Page 249 Select ‘Computer-to-computer (ad hoc) networks only’, and click Close. 5. In the Wireless Networks tab, click Add. 6. Enter the network name (e.g. samsung), and unselect ‘The key is provided for me automatically’. Enter the encryption key in the Network key field, and click OK.
Page 250 7. Check that the configured network name (e.g. samsung) is in the ‘Preferred networks item’, and click OK. Now your wireless network setup has been completed. 4-15 Chapter 4. Connecting to the Internet...
Page 251 ) icon on the taskbar, and select View Available Wireless Networks. 2. Select the wireless network name (e.g. samsung) specified in “Connecting to computer-to-computer networks (peer-to-peer or ad hoc)”, and click Connect. 3. Enter a cryptographic key in the network key box and click Connect.
Page 252 Wireless Network Setup Using the Wireless LAN Setup Program. You can use a wireless LAN by using a wireless LAN configuration program (PROSet) provided separately. To use wireless network connection, complete the following procedures. Step1. Install the wireless LAN configuration program (PROSet). Step2.
Page 253 In Available Networks, click on Refresh. 2. Select the name of desired access point or computer-to-computer network to connect from the searched available networks list, and click Configure. If your desired network does not appear, click Refresh. An access point is represented by the ( ) icon, and a computer-to-computer network is represented by the ( ) icon.
Page 254 Network name (SSID) is a name that a wireless adapter uses for identifying connection. Enter the name of computer-to-computer network to create (e.g., samsung) or the name of access point to connect. The network name identifies cases. (capital and lowercase) For the name of access point, check the settings of the access point, or ask your wireless network administrator.
Page 255 Using Network Services While the computer is connected to the network, you can use network services to share files, folders, and printers. Network services are provided for the computers that are connected to the net- work through wired or wireless network connections. (See Pages 4-4, 4-11, Configuring Network Environment Settings) Sharing files or folders This section describes how to share files and folders between computers connected to...
Page 256 ■ Step 1. Configuring Sharing 1. Right-click the target file or folder to share in My Computer, and select Sharing and Security. 2. Click ‘IF you understand the security risks but want to share files without running the wizard, click here’. It has the same security effect as that of the ‘Network Setup Wizard’.
Page 257 ■ Step 2. Using Shared Files or Folders This section describes how to access shared files or folders if your computer is a member of the same workgroup. 1. Click Start > My Computer. Under Other Places, click My Network Places in your computer.
Page 258 Sharing Printers This section describes how to share a printer between computers connected to a net- work. To share a printer, complete the following procedures: Step 1. Configure printer sharing in the computer connected to the printer. Step 2. Add and use the shared printer in other computers on the network. ■...
Page 259 4. In the Printers and Faxes window, you will find the printer icon has been changed to another icon on a hand. ■ Step 2. Adding and Using a Shared Printer 1. From a different computer that wants to use the shared printer, click Start > Printers and Faxes.
Page 260 7. Read the warning about a shared printer, and click Yes to install the shared printer. 8. Select Yes for ‘Do you want to use this printer as a default printer?’, and click Next. 9. Click Finish. 10. When the printer sharing configuration has been completed, the shared printer appears in the Printers and Faxes window.
Page 261: Using Bluetooth Devices
Using Bluetooth Devices (Optional) You can transfer files between Bluetooth devices, use the Internet, and construct a Personal Area Network. In addition, you can use a wireless keyboard, wireless mouse, and a wireless printer that have the Bluetooth function. You can only use the Bluetooth communication function between devices (comput- ers, mobile phones, PDAs, printers, etc.) which support Bluetooth.
Page 262 Using a Personal Area Network You can exchange files between computers by connecting to the shared folder of another computer via a Personal Area Network. For more detailed procedures on using the Personal Area Network, refer to Join a personal area network , Provide a name for your computer on a personal area network and Bluetooth person- al area networking overview of the Bluetooth On-line help.
Page 263 4-28 Manual...
Page 264: System Management
Chapter 5 Chapter 5 System Management This chapter provides information on efficient computer management.
Page 265: Managing Power
Power Options > Power Schemes tab. Then specify time in each item and click OK. By default, the power scheme is configured to SAMSUNG mode. SAMSUNG mode extends the battery life and optimizes the Intel Speedstep function. Since the CPU power consumption is automatically optimized to conserve power when the computer is operating on battery power, an application may be executed slower than when it is operating on AC power.
Page 266: Using The Power Button
Using the Power button You can configure the function of the power button. Click Start > Control Panel > Performance and Maintenance > Power Options and select the Advanced tab. Configure the Power button function. Configuring the function of the < >+<...
Page 267 Using the Battery Please refer to the following instructions when running the computer on battery power without connecting the AC power. This computer uses smart rechargeable Lithium-Ion (Li-Ion) battery. Please read the instructions on the battery before use. Please refer to the system operation environment (Page A-2) of this manual and operate and store the battery at room temperature.
Page 268: Monitoring The Battery Charge
Monitoring the Battery Charge You can view the battery charge status by completing the following procedures. ■ Using the shortcut key to view Press the <fn> + < > key combination on the keyboard and then the current power source and the current remaining battery charge are displayed at the top left of the screen.
Page 269: Increasing Battery Life
LCD brightness, the sleep timer and system devices, and can extend the battery usage time to maximum. Click on Start > All Programs > Samsung > Samsung Battery Manager > Samsung Battery Manager Maximum Battery Saving Mode : This mode extends the battery usage time to maximum. This may degrade the performance of the system.
Page 270 Controlling the LCD Brightness If you restart the system after changing the LCD Brightness in Custom Mode, the LCD brightness is changed to its default value. To keep the brightness value configured in Custom Mode, configure the [Brightness Control Mode] item to 'User Control' in the [Boot] menu of the System Setup.
Page 271: Upgrading Memory
Upgrading Memory This computer has one or more 128 MB or 256 MB memory module(s). Two memory module sockets are provided so that you can replace mem- ory or install an additional memory module. Before replacing the memory module, turn the system off completely. Do not replace the memory module when the system is in Rest Mode.
Page 272 3. Align the new memory module connectors accordingly and slide it into the slot at a 30˚ angle. 4. Push the memory module in until the module clicks into place. If the memory module is not fixed completely, push the module while pressing the memory mod- ule tabs outward.
Page 273: Using The Security Lock
Using the Security Lock The security lock is a device used to physically ‘fix’ the system when using it in a pub- lic place. The locking device needs to be purchased separately. The shape and meth- ods of use may differ depending on the manufacturer. Please refer to the manual provided with the security lock for proper use.
Page 274: Traveling With The Computer
Traveling with the Computer When traveling, keep the system and the AC adapter disconnected. Otherwise, it may affect the functions of the system. Make sure that the system is not pressed by a book or heavy objects. The LCD may get damaged. When traveling by plane, use a bag designed for notebook PCs and hand-carry the computer.
Page 275 5-12 Manual...
Page 276: Customizing Your Computer
Chapter 6 Chapter 6 Customizing your computer This chapter provides information how to use the system setup, customizinig screen settings.
Page 277: To Enter System Setup
Using System Setup System Setup is a utility that enables the computer environment to be changed to suit the user. System Setup is used when changing the system password, booting priority, or when adding new devices. Please use extra care when configuring System Setup, as it may cause serious system error.
Page 278: System Setup Menus
System Setup Menus Menu Items Description Main Configures the basic system environment Advanced Configures OS and major chipset options of the system Security Configures system security options Boot Configures booting options Exit Exits System Setup For more information on System Setup menus or options, please refer to Help on the right side of the screen.
Page 279 By configuring a supervisor password, you can restrict system access to autho- rized users only. Do not lose or forget your password. If you have forgotten your password, contact the Samsung service center. 1. Select the Security menu in the System Setup. (To enter into System Setup, see Page 6-2.) 2.
Page 280 ■ Setting the User Password You can configure user passwords so that other users can use the system. Before configuring a user password, a supervisor password must have been con- figured. Users can start the system with their user password, but cannot enter into the System Setup.
Page 281 Changing Booting Priority You can select the booting priority among the devices such as the hard drive, CD-ROM drive, etc. The following example describes how to con- figure the hard drive as the first booting device when the CD-ROM drive is configured as the first booting device by default.
Page 282 Configuring Resolution and Color Depth Screen resolution is the number of pixels displayed on the screen. High resolution makes the overall screen area large, although individual items appear small. Color quality is determined by the number of bits used to represent a pixel on the screen.
Page 283: Using External Display Devices
Using External Display Devices (ATI Chipset model, refer to P.6-7) Using external display devices such as a monitor, projector, TV, etc allows you to view screen images alternatively or simultaneously on each device. Additionally, you can extend the screen onto two display devices to use a larger workspace.Using external display devices is especially useful when you are giving a presentation or watching a movie through your TV.
Page 284 2. Press the <Fn> + < > key. Provided that an external display device is con- nected, the display option changes in LCD > CRT > LCD+CRT order whenever the key is pressed. Provided that multiple external display devices are connected, the display order is LCD>CRT>TV>LCD+CRT>LCD+TV>LCD whenever the <Fn>+<...
Page 285 4. When you have completed this, click OK on the left of the Troubleshoot button. The primary display device (the LCD) is indicated as ‘1’, and the secondary dis- play device is indicated as ‘2’. Now you can use each of the two display devices as independent display devices.<Enter>...
Page 286 Using External Display Devices (Intel Chipset model, refer to P.6-7) Using external display devices such as monitor or projector, you can view the screen images alternatively or simultaneously. You can extend the screen into two display devices to use larger workspace. Using external display devices would be especially useful when you are giving presentations or watching a video file.
Page 287 Monitor Displays on an external device such as monitor or a projector. You can only view the screen on the TV. Displays on the notebook LCD only. Notebook Intel(R) Dual Displays the same screen on the notebook LCD, and an Display Clone external device such as monitor or projector.
Page 288: Checking For Viruses
Checking for Viruses The Norton AntiVirus software is provided as the virus inspection program. When you first run Norton AntiVirus, the Norton AntiVirus Configuration window pops up. If you complete the configuration and your computer connect to network, you can download and install the latest updates via the network. When the live update is done, virus scanning starts automatically.
Page 289 6-14 Manual...
Page 290: Recovering The Computer
Chapter 7 Chapter 7 Recovering the Computer This chapter provides recovery procedures using the System Recovery CD when the computer is not operating properly.
Page 291 Restoring the System This description is only for models running Window XP. The System Restore function allows you to restore your computer to an earli- er copy (called restore point), and restores the settings if a problem occurs. The System Restore function is provided by Windows XP to enable the reso- lution of various problems without reinstalling Windows XP completely.
Page 292 ■ Returning your computer to an earlier restore point The procedures to return your computer to an earlier restore point when a problem has occurred are described below. 1. Start > All Programs > Accessories > System Tools > System Restore. 2.
Page 293 Reinstalling Software If you have reinstalled the Windows operating system, or the system and program do not operate properly, you can re-install the driver and pro- gram using the system software CD. This computer is optimized for Microsoft Windows XP. Therefore, Windows drivers other than the ones included in the System Software CD are not provided.
Page 294 ■ Installing drivers and programs 1. Click Standard Installation in the main window of the System Software CD. (Standard Installation is recommended) 2. The system is scanned to display the drivers and programs that need to be installed. 3. Click OK. The drivers and programs are automatically installed as factory defaults.
Page 295 Reinstalling Window may delete the data on the hard disk drive such as files, programs, etc. In order to minimize damage from data loss, please remember to always back up data. Samsung Electronics is not liable in the case of data loss, please consult your warranty statement for clarification.
Page 296 Quick Installation : This re-installs Windows with the user data and the system configuration intact. The user data in the already existing Windows folders may be preserved as the existing Windows folders are overwritten. 3. The description for the standard installation appears. Click Yes. The installation starts, and the system will be restarted after a while.
Page 297 ■ If You Cannot Run Windows If you cannot run Windows, you have to boot the system with the system recovery CD, and reinstall Windows. If you boot the system from the system recovery CD, you can install Windows only with the user installation option. You cannot install with the standard installation option.
Page 298: Windows Related
Q&A This section provides information on possible problems, solutions and other references for system use. Windows Related Q1The system does not shutdown properly. A When the system does not shutdown normally, press and hold the Power button until the system manually shuts off. If the Power-Saving Mode is configured into the Power button, press and hold for more than 4 seconds to shut the system off.
Page 299 Display Related Q1 The LCD screen is too dark or too bright. A Adjust the LCD screen brightness. Use the <Fn> + < >, <Fn> + < > keys. Q2 The screen saver disturbs screen viewing during Media Player or video file operation.
Page 300 Q7 A DVD or an MPEG file is only played on the LCD (ATI chipset model) A When both the LCD and the CRT are being used simultaneously, video plays on one of them by default. 1. Right-click over the Desktop and select Properties. 2.
Page 301 Modem Related Q1 I cannot hear the modem sound. A1 Check that the telephone line is properly connected to the modem. A2 Check that the modem driver is installed properly. 1. Click Start > Control Panel > Performance and Maintenance > System.
Page 302 Using an AT command As an initialization command, use the command, ATX3. Otherwise, enter the ATX3 command manually before making a call. It can correct this problem by skipping the dial tone check step. Configuring the Modem through the Control Panel 1.
Page 303 Wired LAN Related Q1 <Wake On LAN> Function. A <Wake On LAN> is a function that activates the system in rest mode when a sig- nal (such as ping or magic packet commands) arrives from network(wired LAN). To use <Wake On LAN> function 1.
Page 304 Wireless LAN Related Refer to (P.4-11) “Configuring the Network Environment Settings for Wireless LAN Network (WLAN)” for the basic uses of a wireless LAN. Q1 The Wireless LAN device is operating properly, but I cannot connect to the Internet or to another computer. This is due to an inappropriate configuration.
Page 305 Q3 I cannot share an Internet connection. A1 It may require some time to synchronize the computers to share an Internet connection after the Internet connection sharing configuration is completed. If you cannot share Internet connection even after a longer period, restart the computer. A2 Check if the connection between the network adapters is configured to bridge.
Page 306 A5 Verify whether the AP has been properly connected to the network. Verify whether the network is operating normally by connecting the wired network cable, which has been connected to the AP, to your computer. A6 Check the network key settings (encryption key). When automatic code conversion (a passphrase function) has been selected and data communication is not functioning even with a normal wireless connection, it is recommended entering the network key (encryption key) manually.
Page 307 A3 Initialize the device driver. Click Start > Control Panel > Performance and Maintenance > System > Hardware tab > Device Manager > Network adapters, and select the wireless LAN adapter. Right-click the network adaptor and select 'Disable' from the popup menu. Then right-click over the network adaptor and select 'Enable' after a short wait to check that the device is operating properly.
Page 308 Q7 When using a computer-to-computer (Ad Hoc) network, sometimes I cannot search the access point. A It may happen occasionally when you are using a computer-to-computer (Ad Hoc) network connection. Even if you cannot find some access points, the computer-to-computer (Ad Hoc) network is operating properly. Click Refresh to view the latest search result.
Page 309 A3 If the AP is configured to ‘Use network authentication (Shared Key)’ If the AP is configured to authentication shared mode, all computers to be con- nected should be configured as follows: If you are using Windows XP, select network authentication(shared mode) in the wireless network settings.
Page 310: Game/Program Related
Game/Program Related Q1 3D game is not executed, or some functions are not working. A Change the graphic setting of the game to ‘2D’ or ‘Software Renderer’, then exe- cute the program again. Q2 I launched a game right after installing it, and the game is not executed.
Page 311 Q5 <Fn>+< > Key combination does not work. A While displaying video of VCD or MPEG, or the display setting is Dual View, you cannot toggle display devices. Also the installation of NetWare Client 32 program disables the function of <Fn>+< >.
Page 312 (Intel chipset models) A This may happen when using the DFGT function. 1. Right-click over the Desktop and select Graphics Option > Graphics Properties > Device tab. 2. Click Notebook and click ‘Power Schemes Settings'. 3. Unselect 'Intel¢Á Dual-Frequency Graphics Technology'. 4.
Page 313 Security Center Q1 To change the popup window display settings when connected to the Internet. In the Windows XP SP2 environment, you can decide whether to display a popup window when connected to the Internet, for user convenience and security. A1 To display most of the popup windows when connected to the Internet: 1.
Page 314 Q3 When you see a Windows Security Alert icon appear on the right part of the task bar. With the Security Center feature added, Windows XP SP2 checks the Firewall, the automatic updates configuration and installation of virus-checking programs to display a Windows Security Alert icon on the right part of the task bar when it judges that the computer is vulnerable to attacks from the Internet.
Page 315 A5 If Windows does not recognize the existence of an anti-virus program even when it has been installed, your computer could be vulnerable to attacks from the Internet. You should install an anti-virus program that your computer is able to identify. Check the following programs which Windows can detect and select one from the list.
Page 316 Component TV Related Q1 On a component TV, the Full Screen DOS Mode screen does not display. A A component TV does not support the Full Screen DOS Mode screen due to an output power problem of the TV. Please use DOS mode in a window when using a component TV.
Page 317 Q5 The screen does not display on the component TV. (ATI chipset models) A This happens when the TV does not support the component TV mode configured in the video driver. 1. Click Display Properties > Settings > Advanced > Display tab > YPbPr button. 2.
Page 318 Appendix Appendix Appendix System specifications, software types and safety instructions are provided here.
Page 319: System Specifications
System Specifications The system specifications will be described below. The system specifications may differ depending on the derived models. The X20 System (with an Intel Graphics Chipset) Item Specification Comment Intel Pentium M 1.6 ~ 2.13 GHz / Dothan (FSB533) Optional Cache memory 2 MB (Dothan)
Page 320 The X20 System (with an ATI Graphics Chipset) Item Specification Comment Intel Pentium M 1.6 ~ 2.13 GHz / Dothan (FSB533) Optional Cache memory 2 MB (Dothan) Main memory 256/512/1024 MB DDR2 SDRAM, 2 DDR socket Main Chipset Intel 915GM (Alviso PM) / 82801FBM (ICH6-M) Max 2GB Hard Disk (HDD) 2.5", UltraDMA100, S.M.A.R.T 9.5mmH...
Page 321 The X25 System Item Specification Comment Intel Pentium M 1.6 ~ 2.13 GHz / Dothan (FSB533) Optional Cache memory 2 MB (Dothan) Main memory 256/512/1024 MB DDR2 SDRAM, 2 DDR socket Main Chipset Intel 915PM (Alviso PM) / 82801FBM (ICH6-M) Max 2GB Hard Disk (HDD) 2.5", UltraDMA100, S.M.A.R.T 9.5mmH...
Page 322 The X50 System Item Specification Comment Intel Pentium M 1.6 ~ 2.13 GHz / Dothan (FSB533) Optional Cache memory 2 MB (Dothan) Main memory 256/512/1024 MB DDR2 SDRAM, 2 DDR socket Main Chipset Intel 915PM (Alviso PM) / 82801FBM (ICH6-M) Max 2GB Hard Disk (HDD) 2.5", UltraDMA100, S.M.A.R.T 9.5mmH...
Page 323: Wireless Lan Specifications
Wireless LAN Specifications (Optional) Intel(R) PRO/Wireless 2200BG Network Connection Item Specifications Physical Dimensions 59.75 X 44.45 mm (Width X Height) Specifications operation temperature Same as system operation specifications and humidity Temperature: 0 ~ 70°C, Humidity: less than 85% Power Saving Mode 135mW Power Receiving Mode...
Page 324: Network Connection
Intel(R) PRO/Wireless LAN 2915 ABG Network Connection Item Specifications Physical Dimensions 59.75 X 44.45 mm (Width X Height) Specifications operation temperature Same as system operation specifications and humidity Temperature: 0 ~ 70°C, Humidity: less than 85% Power Saving Mode 135mW Power Receiving Mode 0.85W...
Page 325: Registered Trademarks
Copyright Samsung Co., Ltd. owns the copyright to this manual. No part of this manual may be reproduced or transmitted in any form or by any means, electronically, mechanically, or through audio, without the consent of Samsung Co., Ltd. The information in this document is subject to change without prior notice.
Page 326: Safety Instructions
Safety Instructions Instructions for Setup ● Set up the system on a stable work surface. If the system is dropped it may be damaged or it may inflict injuries on the user. ● Do not use loose power outlets or damaged power cables.
Page 327 Instructions for careful handling ● Handle with care so as not to damage the data in the hard disk. - Since the hard disk is fragile and sensitive to external conditions, it may be damaged from temperature changes or impact during operation.
Page 328 ● Use only authorized parts and do not disassemble, repair or modify the computer unless at an authorized dealer. Use authorized service centers as the system may be damaged. ● Do not touch the power strip with wet hands. There is a danger of electric shock. ●...
