Gree GMV-Y72WM/C-F Owner's Manual page 8

Model
(Single)
Model
(Combined)
2.3 Combinations of Indoor and Outdoor Units
ODU Model
GMV-Y72WM/C-F(U)
GMV-Y96WM/C-F(U)
GMV-Y120WM/C-F(U)
GMV-Y144WM/C-F(U)
GMV-Y168WM/C-F(U)
GMV-Y192WM/C-F(U)
GMV-Y216WM/C-F(U)
The total capacity of indoor units should be within 50%~135% of that of outdoor units.

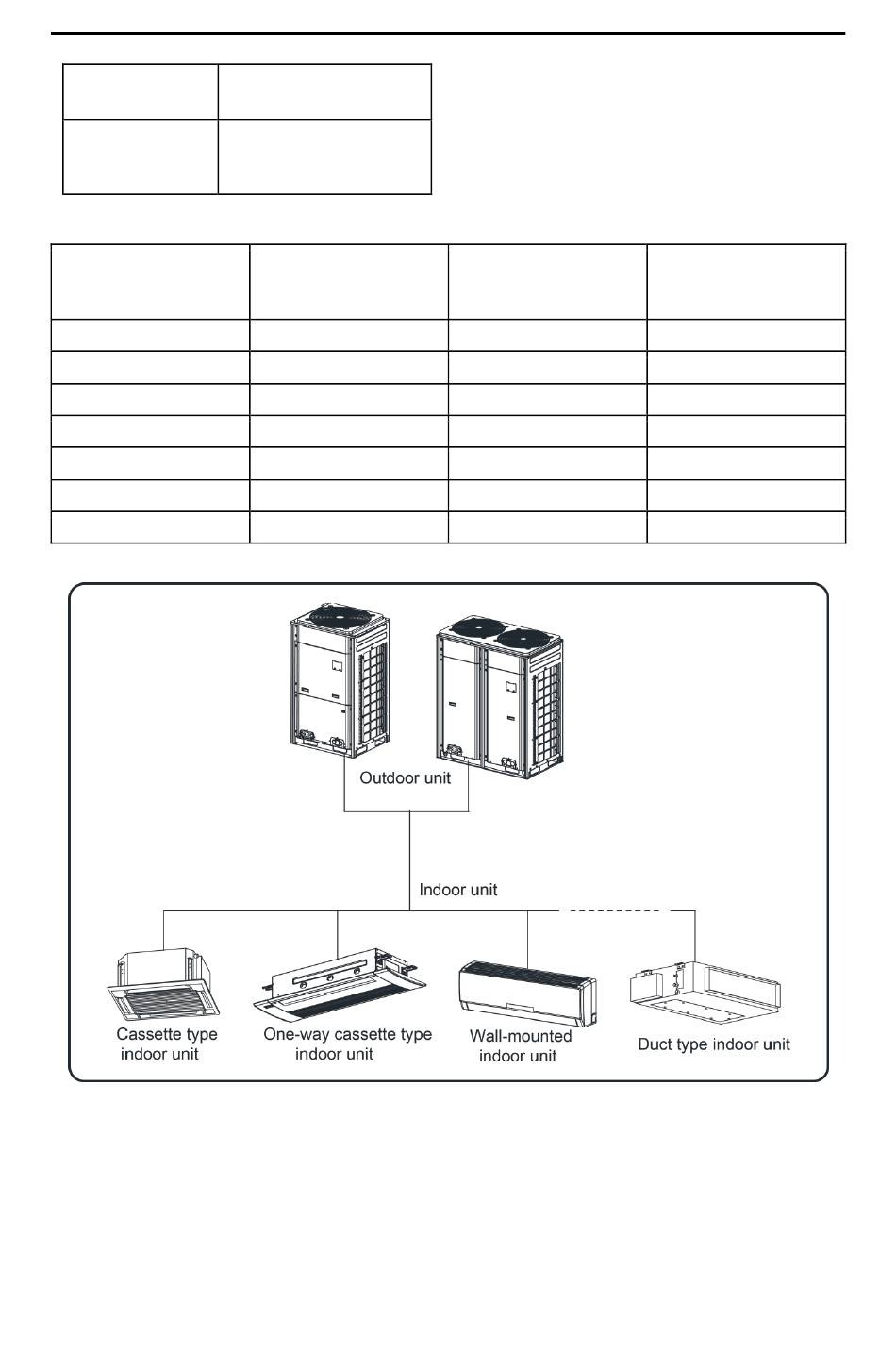

Fig.2.3.1 is the combination view of the ODU of Photovoltaic Direct-driven Inverter VRF
and the IDU of Photovoltaic Direct-driven Inverter VRF. IDU can be four-way cassette type,
one-way cassette type, wall-mounted type, duct type, etc. When any one IDU receives
operation signal, ODU will start to work according to the capacity; when all IDUs stop, ODU will
also stop.
GMV-Y360WM/C-F(U)
GMV-Y120WM/C-F(U)
+ GMV-Y120WM/C-F(U)
+ GMV-Y120WM/C-F(U)
Max number of
connectable IDU
(unit)
13
16
19
23
29
33
36
Photovoltaic Direct-driven Inverter VRF
ODU Model
GMV-Y240WM/C-F(U)
GMV-Y264WM/C-F(U)
GMV-Y288WM/C-F(U)
GMV-Y312WM/C-F(U)
GMV-Y336WM/C-F(U)
GMV-Y360WM/C-F(U)
Fig.2.3.1
4
Max number of
connectable IDU (unit)
39
46
50
53
56
59
