Gree GMV-Y72WM/C-F Owner's Manual page 10

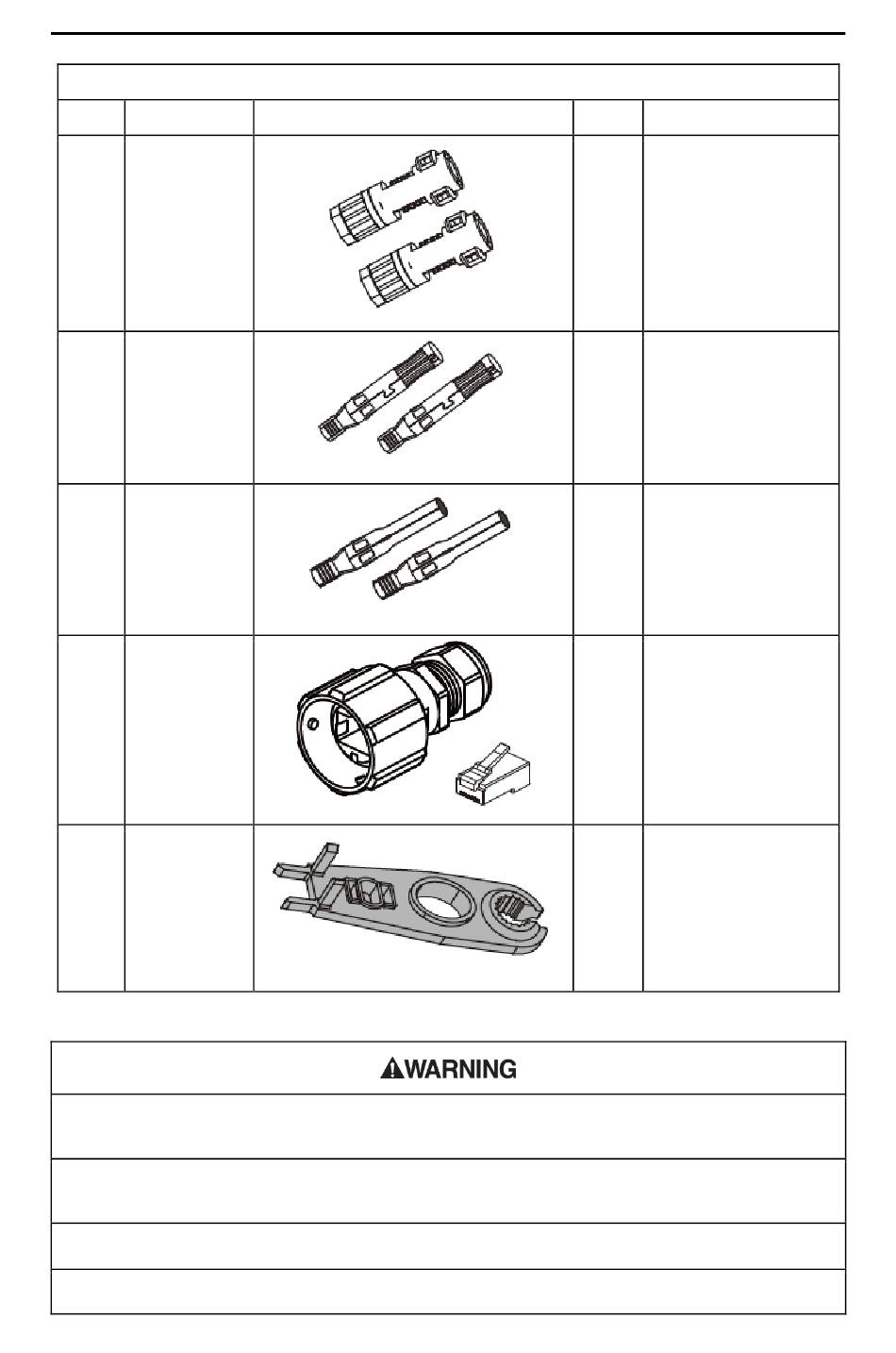

Number Name
Photovoltaic
5 connector
(negative pole)
Photovoltaic
6 positive pole
terminal
Photovoltaic
7 negative pole
terminal
Communication
8 terminal (plug is
provided)
Disassembly tool
9 of photovoltaic
connector
3.2 Installation Site
(1) Install the unit a t a place where is adequate to withstand the weight of the unit and make sure the unit
would not shake or fall off.
(2) Ne ver e xpose the unit under direct sunshine and rainfall. Install the unit at a place where is against dust,
typhoon and earthquake.
(3) Try to keep the unit away from combustible, inflammable and corrosive gas or exhaust gas.
(4) Leave some space for heat exchanging and servi cing so as to guarantee unit normal operation.
Photovoltaic Direct-driven Inverter VRF
Parts for Outdoor Unit
6
Quantity Remarks
Used with the photovoltaic
4
negative pole terminal
Used with the photovoltaic
4
connector (positive pole)
Used with the photovoltaic
4
connector (negative pole)
3
Use one end of the tool to
lock photovoltaic cable
1 and use the other end to
disassemble the
photovoltaic connector
