English
sidewalls of the box or equipment.
Each product has a unique serial number. Check
that this number corresponds with that advised
and always quote this number in correspondence
as well as when ordering spare parts or further
accessories.
2.2 Handling
2.2.1 General instructions concerning handling
Boxes, crates, pallets or cartons may be unloaded
using forklift vehicles or slings dependent on their
size and construction. See 2.3.1 for positioning of
slings.
To lift heavy pieces above 25 kg (55 lb), use a
winch adapted to the mass and in accordance with
the current local regulations.
To lift machines or pieces with one or several sus-
pension rings, only use hooks and chains in com-
pliance with the local regulations concerning
safety. Never put cables, chains or ropes directly
on or in the suspension rings. Cables, chains or lif-
ting ropes must never present excessive bending.
Never bend the lifting hooks, suspension rings,
chains, etc., which should only be made to endure
stresses within, calculated limits. Remember that
the capacity of a lifting device decreases when the
direction of the lifting force direction makes an
angle with the device axis.
To increase the safety and the efficiency of the lif-
ting device, all the lifting elements must be as
perpendicular as possible. If necessary a lifting
beam can be placed between the winch and the
load.
When heavy pieces are lifted up, never stay or
work under the load or in the area, which could be
in the path of the load if it were to swing or fall
away. Never leave a load hanging from a winch.
The acceleration or the slowing-down of lifting
equipment must stay in the safety limits for the
staff.
A winch must be positioned in such a way that the
load will be raised perpendicularly. Where possible
necessary precautions must be taken to avoid the
swing of the load, using for example two winches
making approximately the same angle, below 30°,
with the vertical.
8
2.2.2 Pump masses
Pump type
NPG 65 – 315
NPG 100 – 315
NPG 150 - 200
NPG 150 - 500
NPG 200 - 250
NPG 200 - 315
NPG 200 - 355
NPG 200 - 400
NPG 200 - 500
NPG 250 - 250
NPG 250 - 315
NPG 250 - 355
NPG 250- -400
NPG 250 - 500
NPG 300 - 300
NPG 300 - 400
NPG 300 - 450
NPG 300 - 500
NPG 350 - 350
NPG 400 - 500
NPG 400 - 650
NPG 500 - 500
All motors (for masses see the motor description
plate) must be handled with a winch.
For masses above 25 kg (55 lb), manual handling
is forbidden.
2.3 Lifting
2.3.1 Slinging of motor pumps units
Use handling means in accordance with motor
pump unit mass mentioned on the CE plate. For
the masses of the pumps bare end of shaft see
table § 2.2.2 and nameplate.

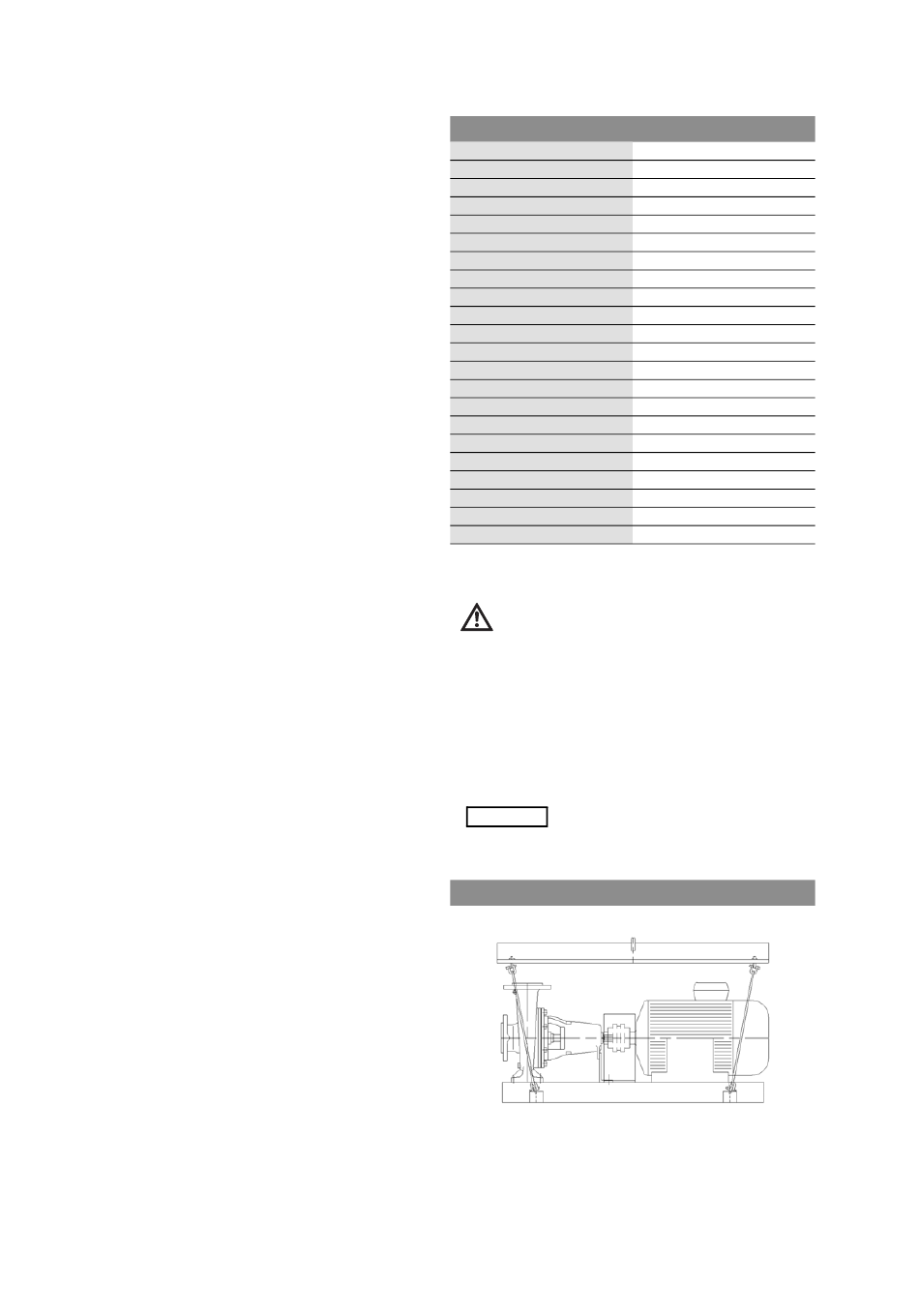

To avoid distortion, the pump unit
CAUTION!
should be lifted as shown.
Motor pump unit
Pump mass (kg)
140
160
130
475
175
260
265
370
420
290
330
370
415
500
370
480
550
710
700
1100
1250
1450
