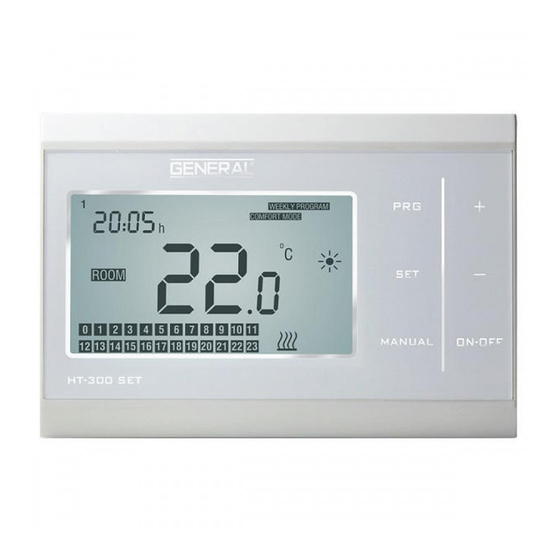

LCD Wireless Room Thermostat Controls
HT 300 SET is wireless room thermostat. The user can adjust the room thermostat in line with the requirement and get more
comfortable and economic heating.
Touch Keys, LCD Backlight Screen
Daily and Weekly Program (7x24)
Operating Moods: Comfort Mode, Economy Mode, Holiday Mode
Weekly Program and Manual use
Only heating or only cooling setting
ON/OFF Control
Battery DC 3 V (2 × 1,5V AAA Alkaline pil)
Use
HT 300 SET room thermostats are used for keeping the required room temperature in only heating or only cooling systems.
Place of use
Houses
Apartments
Trading Areas
Light Industrial Buildings
Zone Valves, Thermal Valves
Gas or Petrol Burners
Fans
Pumps
HT 300 SET
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for General HT 300 SET
Summary of Contents for General HT 300 SET

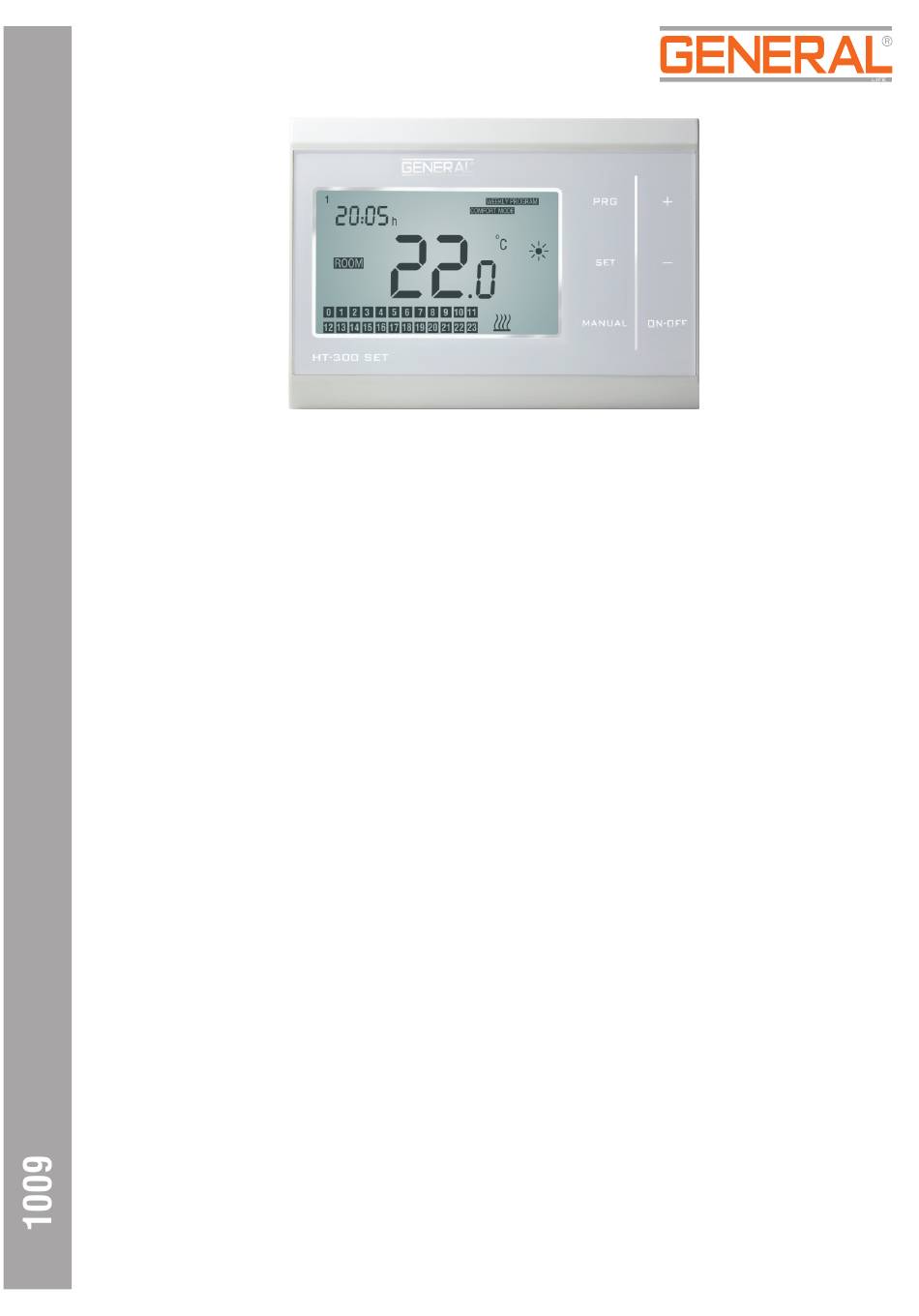

- Page 1 HT 300 SET LCD Wireless Room Thermostat Controls HT 300 SET is wireless room thermostat. The user can adjust the room thermostat in line with the requirement and get more comfortable and economic heating. Touch Keys, LCD Backlight Screen Daily and Weekly Program (7x24)
-
Page 2: Mechanical Design
Functions HT 300 SET HT 300 SET room thermostat has only heating and cooling outs. Its stabilizer gets room temperature with integrated sensor and keeps the required temperature by providing control commands . Switching difference is 0.5 C. Operating Key features of HT 300 SET room thermostat:... -
Page 3: Battery Change
In order to remove the wall hanger, loosen the screws at the bottom as can be seen in the gure. Fix the removed wall hanger 150 cm above the ground on a central place of the house. Avoid mounting HT 300 SET on the places where air circulation is too much such as door entrance or window ledge. -
Page 4: Heating Calibration
Heating Calibration Press “Manual” button while the device is off. SET the temperature difference by pressing “+” and “–” buttons in order to see required temperature. This value can be set between -8 and +8. Press “Manual” and exit the menu. Warning: Recommended tempreture calibration is “... - Page 5 HT 300 SET WIRING DIAGRAM WIRING DIAGRAM FOR HEATING UNITS THERMOSTAT OUT AC 220 V WIRING DIAGRAM FOR COOLING UNITS THERMOSTAT OUT AC 220 V Sizes Thermostat Size 134 mm×94mm×28mm 22 mm 119 mm WEEKLY PROGRAMME COMFORT MODE ECONOMY MODE...
