Summary of Contents for General HT300

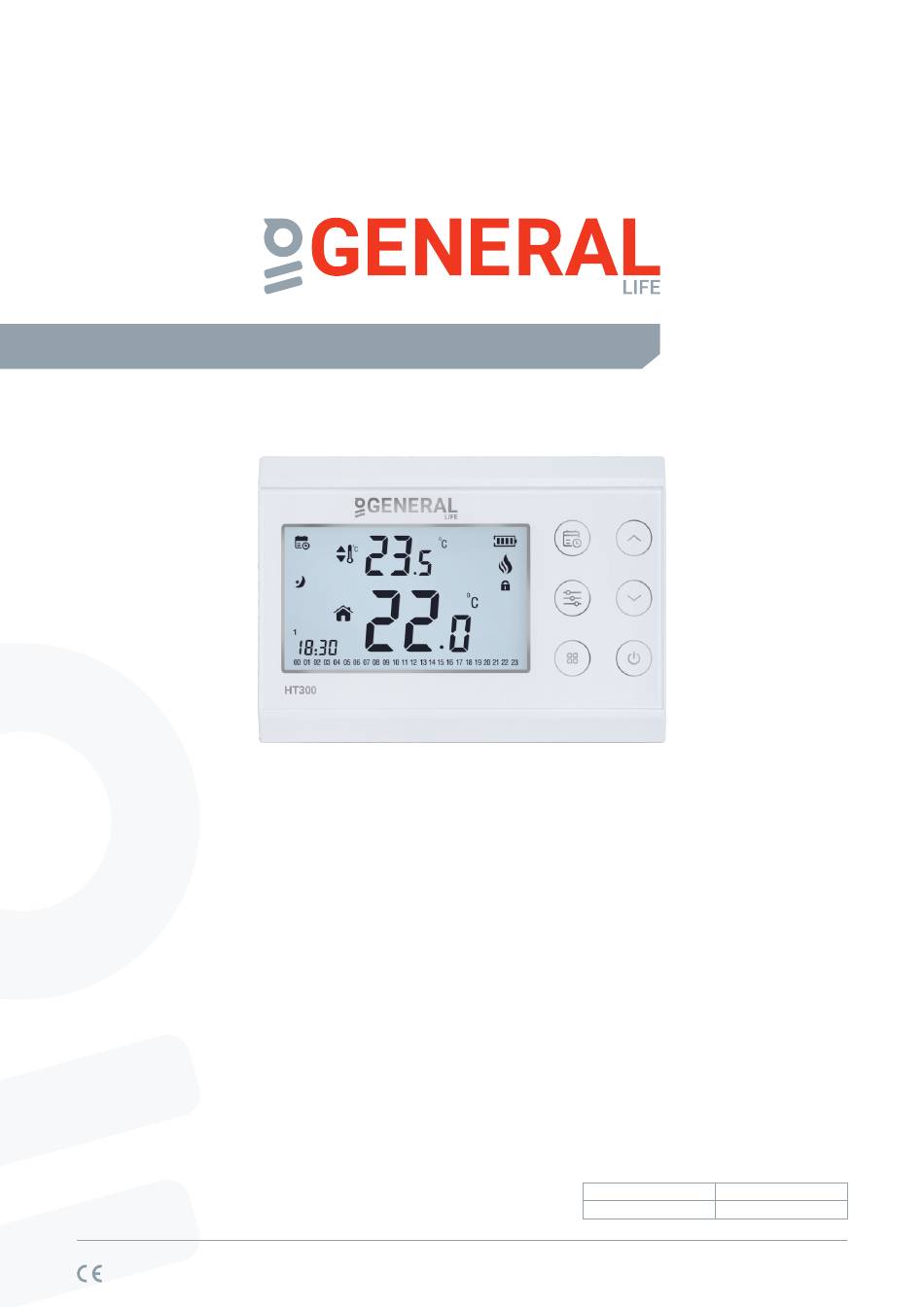

- Page 1 DIGITAL ROOM THERMOSTAT HT300 Wired Room Thermostat Large LCD Backlight Display Daily and Weekly Program Touch Keys Key Lock Battery Indicator On-Off Control Product Code HT300 Data sheet V. No v.1.0 generallife.com.tr...
-
Page 2: Mechanical Design
USAGE OF ROOM THERMOSTAT HT300 is a wired room thermostat. HT300 room thermostats are used in heating systems to keep the room temperature constant at the set temperature. Large LCD Backlight Display Touch Keys Daily and Weekly Program ... -
Page 3: Operating Principles
Screen Lock Holiday Mode Room Temperature Manual Mode Hours of Day Day Indicator OPERATING PRINCIPLES HT300 room thermostat specifications: LCD with backlight Two-position control (ON / OFF) Temperature sensor (NTC) The thermostat measures the room temperature with its temperature sensor. The desired temperature value is set by turning the button to the right or left. -
Page 4: Room Thermostat Installation
The room thermostat can be calibrated if the measuring temperature wanted to be changed. The calibration range is -8 C to + 8 C. ORDERING When ordering, specify both the product type and the product code, for example the HT300 wired room thermostat. ROOM THERMOSTAT INSTALLATION Place your room thermostat in a room where you most use it as your living area. - Page 5 ROOM THERMOSTAT HEATING CALIBRATION If you want to take the temperature on your thermometers in your living space as reference, you need to calibrate your room thermostat. For this: When the device has ''Off '' status ''On/''Off'' button needs to be pressed for 3 seconds. ...
-
Page 6: Mode Settings
MODE SETTINGS MODES READY MODES WEEKLY MANUAL MODE PROGRAM MODE Comfort Mode Economy Mode Holiday Mode Your room thermostat has got 5 different modes. 3 of them (Comfort, Economy and Holiday Mode) are prepared and constant modes.Other modes are manual mode and weekly program mode. In prepared modes, temperature degrees are based on user's choices which has been set in the beginning. -
Page 7: Technical Data
(-10 C) – (+50 C) Standards Electromagnetic Compatibility Regulatio 2014/30/EU (EMC EN 61000-6-3: 2007 + A1: 2011, EN 61000-6-1: 2007 Low Voltage Directive 2014/35/EU (LVD EN 60730-2-9:2010, EN 60730-1:2011) General Data Weight (including package) 300 g Case colour White Material ABS, PC... - Page 8 WARNING! Please do not connect with another product's supply line. Risk of fire and injury due to short circuit! Please comply with local regulations when determining power cable diameters. Please supply the power line from a fuse. WARNING! The product is subject to the European Directive 2012/19 / EU as it is included in theelectronic product category.
- Page 9 ISIPARK reserves the right to change and develop the product specifications and data sheet. For all changes please visit generallife.com.tr...
