General isipark FH160S User Manual

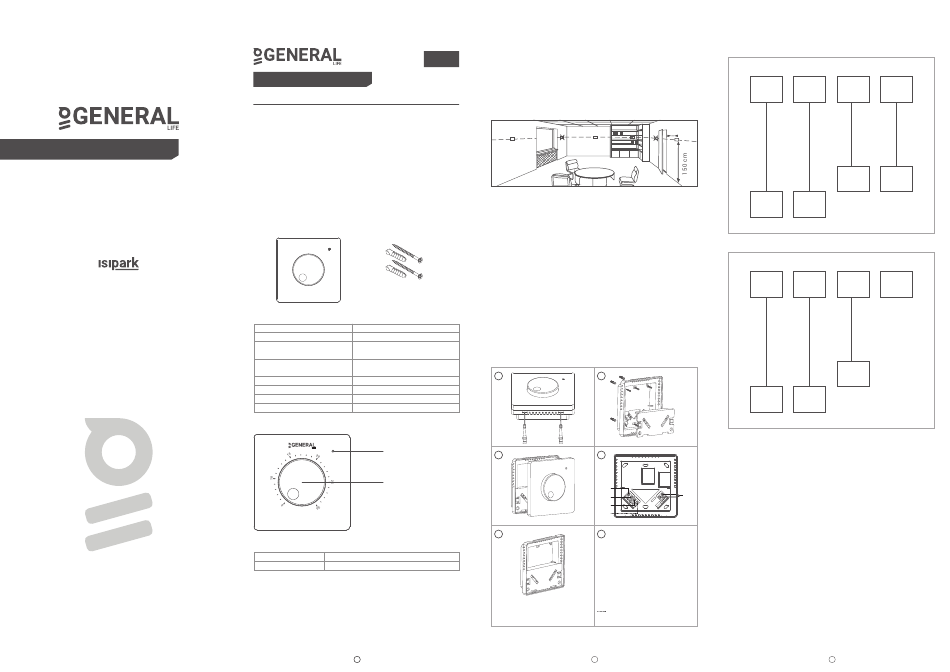

UNDERFLOOR HEATING THERMOSTAT
FH160S
USER MANUAL
generallife.com.tr
ENGLISH
UNDERFLOOR HEATING THERMOSTAT
generallife.com.tr
FH160S USER MANUAL
GENERAL SPECIFICATIONS
FH160S is a floor heating room thermostat. User provides more
comfortable and affordable heating by setting needed room
temperature.
Sensitive Temperature Measurement

Wired Connection

ON / OFF Control

FH160S AND EQUIPMENTS
FH160S Room Thermostat Dowels and
Screws
TECHNICAL DATA
Dimensions ( H / L / W ) 85.7mm / 85.7mm / 33.5mm
Operating Current 230V AC
Relay NO Switching Current 7A (240VAC – Resistive load)
10A (120VAC – Resistive load)
Temperature Measurement 0.1 C o
Accuracy
Operating Sensitivity 0.5 C o
Operating Temperature Range (5 C) – (30 C) o o
Operating Temperature (-10 C) – (+50 C)
o o
Storage Temperature (-20 C) – (+60 C) o o
ROOM THERMOSTAT
Indicator LED
Set Button
Room Thermostat Indicator LED Descriptions
LED light is on Heating unit is working
LED light is off Heating unit is not working
1 1
ROOM THERMOSTAT PLACEMENT
Place your Room Thermostat in a room you use frequently in your
living space. For example; like the hall or living room of your home.
Avoid installing the Room Thermostat in places where there is a lot of
air circulation, such as at the doorway or by the window. Also, do not
place it close to heating units (heater core, fireplace, etc.) and in direct
sunlight. We recommend that the room thermostat is placed at a
height of 150 cm from the floor.
min. 20 cm
ROOM THERMOSTAT WORKING PRINCIPLE
As soon as you energize your Room Thermostat, it will start working.
Your Room Thermostat measures the temperature of the
environment it is in every 5 seconds. If the ambient temperature rises
0.5 degrees above the temperature you set, your Room Thermostat
turns off the heating unit, and if it falls below 0.5 degrees, it turns on
the heating unit.
If the floor sensor measures temperature above 28°C, it turns off the
heating unit. The floor sensor operating sensitivity is ±1°C.*
Thus, it is ensured that the ambient temperature remains within a
certain range.
*External floor sensor is only active when it is connected.
Note: If a floor sensor is installed with Room Thermostat, only
GENERAL Life floor sensor should be installed. Otherwise, the
product will be out of warranty.
ROOM THERMOSTAT WIRING DIAGRAM
1 4
2 5
N
L
L1
N1
WARNING!
3 6
The assembly of product
should be done according to
the image above.
For electrical connection,
please see diagram 5.
Should not be used in case
the usage of a wiring center.
2
WIRING DIAGRAM FOR ACTUATOR
N L L1
ACTUATOR
230V AC
WIRING DIAGRAM FOR WIRING CENTER
N L L1
WIRING
CENTER
230V AC
WARNING!
Operations related to the control panel, heating unit or electrical
installation must be carried out by persons with professional
qualifications.
NTC
3
N1
N1
