MOUNTING THE MOWER DECK

MOWER MOUNTING

MOUNTING THE MOWER DECK
WARNING
To avoid serious injury or death:
• Park the machine on a firm and level surface.
• Apply the parking brake.
• Stop the engine and remove the key.
1. Before mounting the mower deck, raise the lift links
to the full up position.
2. Adjust the cutting height control dial to 1 in.
position.

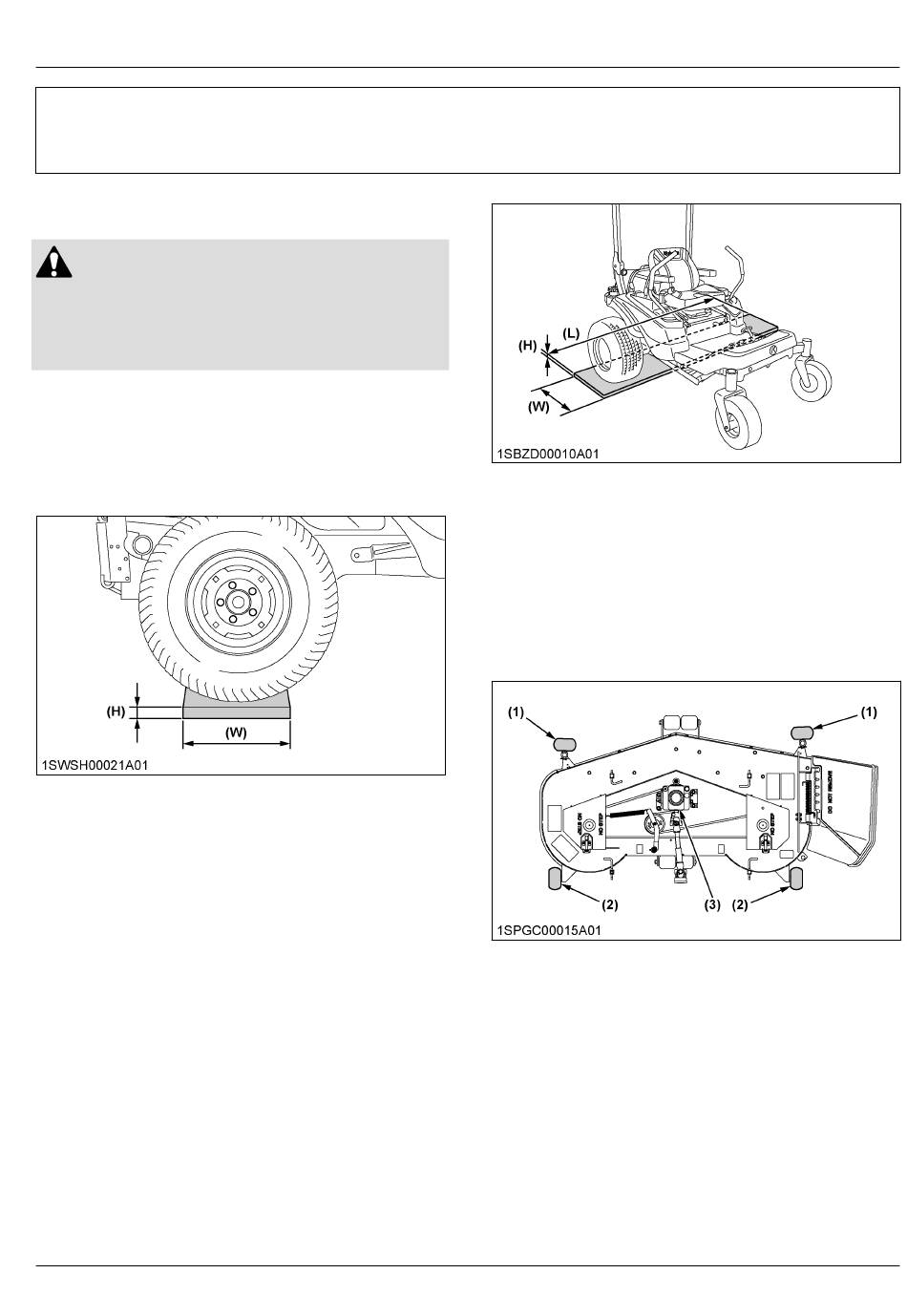

3. Go backward so that right and left rear tires would
be on the board 40 mm (1.57 in.) high.
(H) 40 mm (1.57 in.)
(W) 300 mm (11.8 in.)
IMPORTANT :
• Use a board more than 300 mm (11.8 in.)
wide and 1400 mm (55.1 in.) long.
• Make sure that right and left rear tires are
firm on the board.
4. Change the direction of the front tires as shown in
the figure.
ZG327A-AU
(H) 40 mm (1.57 in.)
(W) 300 mm (11.8 in.)
(L) 1400 mm (55.1 in.)
5. Place the mower deck at the left side of the
machine.
NOTE :
• For easy installation set the anti scalp roller
as shown below.
RCK60P: 2 places front (rear, bolt shift type)
(1) Anti scalp roller (pin shift type)
(2) Anti scalp roller (bolt shift type)
(3) Gear box
6. Slide the mower deck under the machine, and
make sure that the mower gear box is placed
properly in the center of the machine.
7. Depress the hydraulic lift control pedal (DOWN) and
pull down the lift links.
MOWER MOUNTING
21
