- Page 1 VISOR LIGHTS FOR NEPTUNE SPACE, PREDATOR AND RAPTOR MASKS...
- Page 3 For nearly 70 years, OCEAN REEF has been involved in the underwater diving industry. We have contributed much to this industry, from fins and snorkels to the most modern systems of underwater communication. Through the spirit of intrepid pioneers, brilliant inventors, passionate divers, and dynamic entrepreneurs, OCEAN REEF has been able to turn dreams into reality in the underwater world.
-
Page 4: Table Of Contents
NEPTUNE SPACE OWNER’S MANUAL TABLE OF CONTENTS INTRODUCTION FEATURES COMPONENTS PROCEDURE FOR ASSEMBLING THE VISOR LIGHTS HOW IT WORKS WARRANTY Visor Lights Manual rel 2.3... -
Page 5: Introduction

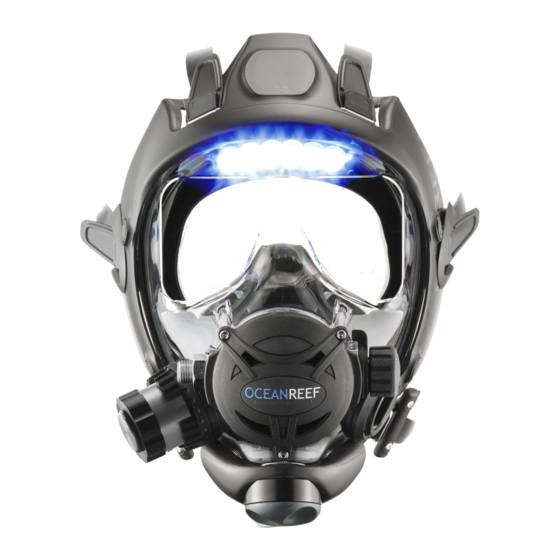

Illuminate the undersea world with this row of 6 powerful LEDs, assembled in a removable system placed inside the mask visor. Visor Lights is a system for the illuminating of the underwater environment, it is made not to feel it being completely integrated into the mask. -
Page 6: Features
• Rechargeable CR 123 lithium battery included • Battery charger with vehicle lighter connector cable included • Anodized anticorodal alloy body • Integrated surface air valve • Two different ways for attaching it to the mask: double sided tape or screws. Visor Lights Manual rel 2.3... -
Page 7: Components
COMPONENTS Visor Lights Manual rel 2.3... -
Page 8: Procedure For Assembling The Visor Lights
PROCEDURE FOR ASSEMBLING THE VISOR LIGHTS (ONLY BY AN AUTHORIZED SERVICE CENTER) For both versions, tape and screws a) Remove the surface air valve from the visor b) Insert the Visor Light LED through the visor. Make sure to have the NG 12 O-ring Di. 47x1.5 on the visor seat before inserting the visor light switch base into the visor. - Page 9 Clean the inside of the visor where h) bring the Lights body near the the Visor Light must be fixed from visor in the upper part and line the oil, grease or dust. screw seat with the visor hole Visor Lights Manual rel 2.3...
- Page 10 2010 is in its f) Remove the sticker covers position g) Fix the Visor Light inside the top part of the visor l) do not over tighten the screws not to damage the o-rings Visor Lights Manual rel 2.3...
- Page 11 The wire from the LED to the battery compartment goes under the face seal not interfering with the face. i) Insert the battery into the battery compartment and screw on the switch. Turn the black bezel to firmly close it. Visor Lights Manual rel 2.3...
-
Page 12: How It Works
HOW IT WORKS To switch on the light simply turn the black bezel clockwise; to turn off the unit bring the bezel back. Visor Lights Manual rel 2.3... - Page 13 To charge the battery remove it from the battery compartment by unscrewing the switch. A 220/110 v charger and a vehicle power adapter are included with the visor lights. Insert the battery into the charger, the red light indicate that the battery is charging, wait until the green light turn on indicating that the battery has been fully charged.
-
Page 14: Warranty
• Rechargeable CR 123 lithium battery is included WARRANTY 1. OCEAN REEF electronic devices are guaranteed to be free of material or manufacturing defects for a period of 24 months from the time the unit is purchased. For the duration of the guarantee, the Company’s responsibility is limited to replacement of any parts that are... - Page 15 NOTE: Visor Lights Manual rel 2.3...
- Page 16 A C C E S S O R Y I N T E G R AT I O N • E x tender K it Inlcuded.. • S urface air valve integrated. • C ustomiz e y our mas k to y our profes s ional needs . OCEAN REEF Inc MESTEL Safety s.r.l 2510 Island View Way Via Arvigo 2, 16010 Genova (Italia)
