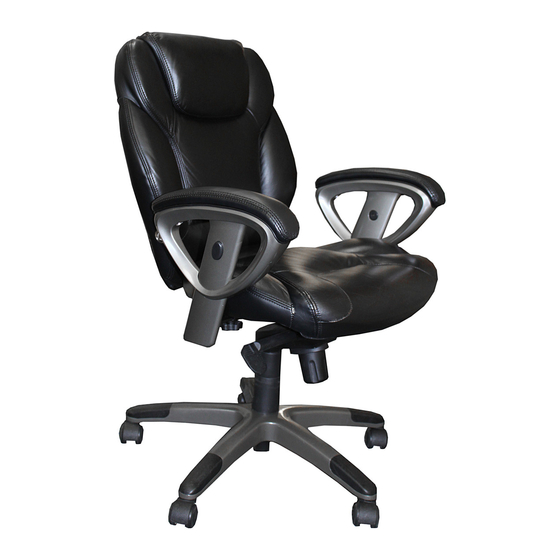

Managerial mid-back chair

Advertisement

M A N A G E R I A L M I D - B A C K C H A I R
OPERATING INSTRUCTIONS

1. To Adjust Seat Height:

While seated, lean forward and reach under right side
of the chair to find the lever. Push lever upward and
raise your body up slightly to allow the chair to rise to
the desired height. To lower the seat, push lever
upward and apply weight downward on the seat. The
chair will descend until the lever is released or the
chair reaches the lowest position available.

2. To Operate Synchro Lockout:

Reach under left side of the chair to find the lever. Push
lever upward to allow the chair to tilt backwards. To lock
the back and seat in the positions you desire, turn lever
downward. Once you want to release the synchro
mechanism from the lock position, push the lever upward
(when pushing the lever upward, apply more weight
backward onto the back rest cushion and then release,
the back rest cushion will return back to normal position.).

3. To Adjust Tension on The Tilt:

Reach under the front center of the chair, grasp the round
knob and turn it counter - clockwise to stiffen the tilt
mechanism. Turn the knob clockwise to loosen the tilt
mechanism. Rotate the knob until the desired resistance
is reached.

4. To Adjust Arm Height:

Press the buttons on the chair arms. Press the buttons
to allow the arms to move up or down freely then
release the buttons once the desired height is reached.

5. To Adjust Arm Width:

While seated, reach for the knobs underneath the
arms located on bottom of seat cushion. Turn the
knobs clockwise to loosen the width adjustment feature
then turn the knobs counter - clockwise to tighten
when you have reached your desired width.
Item number: UL330MBLK/UL330MBUR
CP-240 arm U.S. Patent D494,791S
CP-465 arm pad U.S. Patent D538,560S
619 N. Commerce St, PO Box 728, Sheboygan, WI 53082-0728
www.mayline.com
800-822-8037 Fax 920-457-7388
