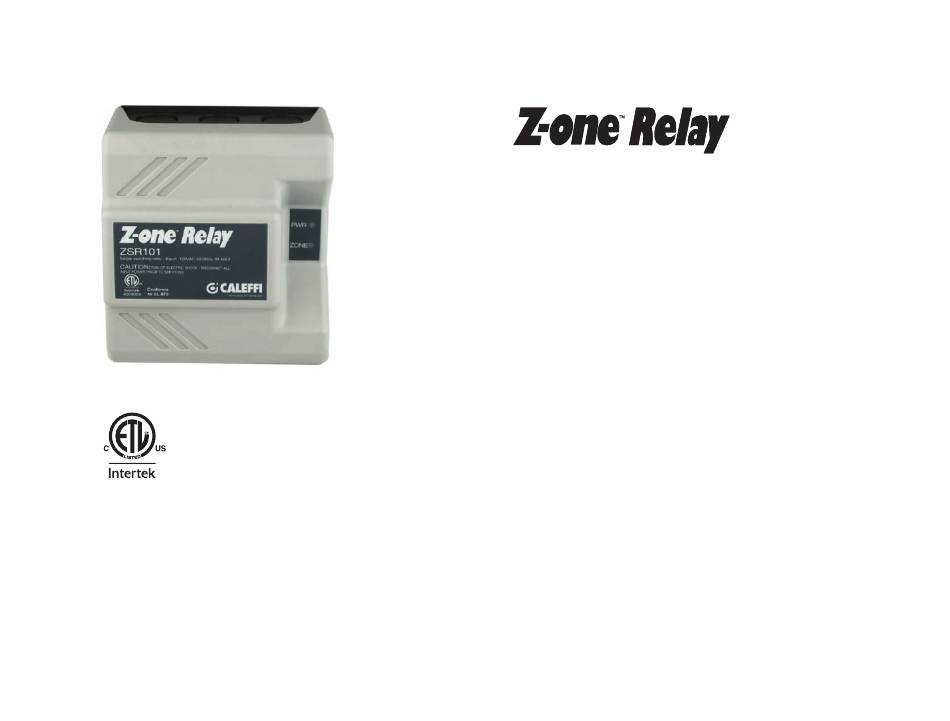

Single Zone Switching Relay
-
Overview
• Compatible with 2, 3 and 4-wire thermostats or other
low voltage controllers with switching action
• 120 VAC input
• Heavy duty, sealed, DPDT, fuse protected relay
(with spare fuse)
• Two dry contact outputs (Relay 1 and Relay 2) for
operating 120 VAC pump with boiler enable or two
devices without boiler enable
• 5 A capacity each relay - 10 A total
• Rear knock-outs for mounting onto 4"x4" junction box
• High capacity 6VA transformer
• Simplifi ed wiring with pre-installed jumper
• 100% factory tested with 3 year warranty
• ETL certifi ed
See technical brochure 01284-14 NA for more product
information.
