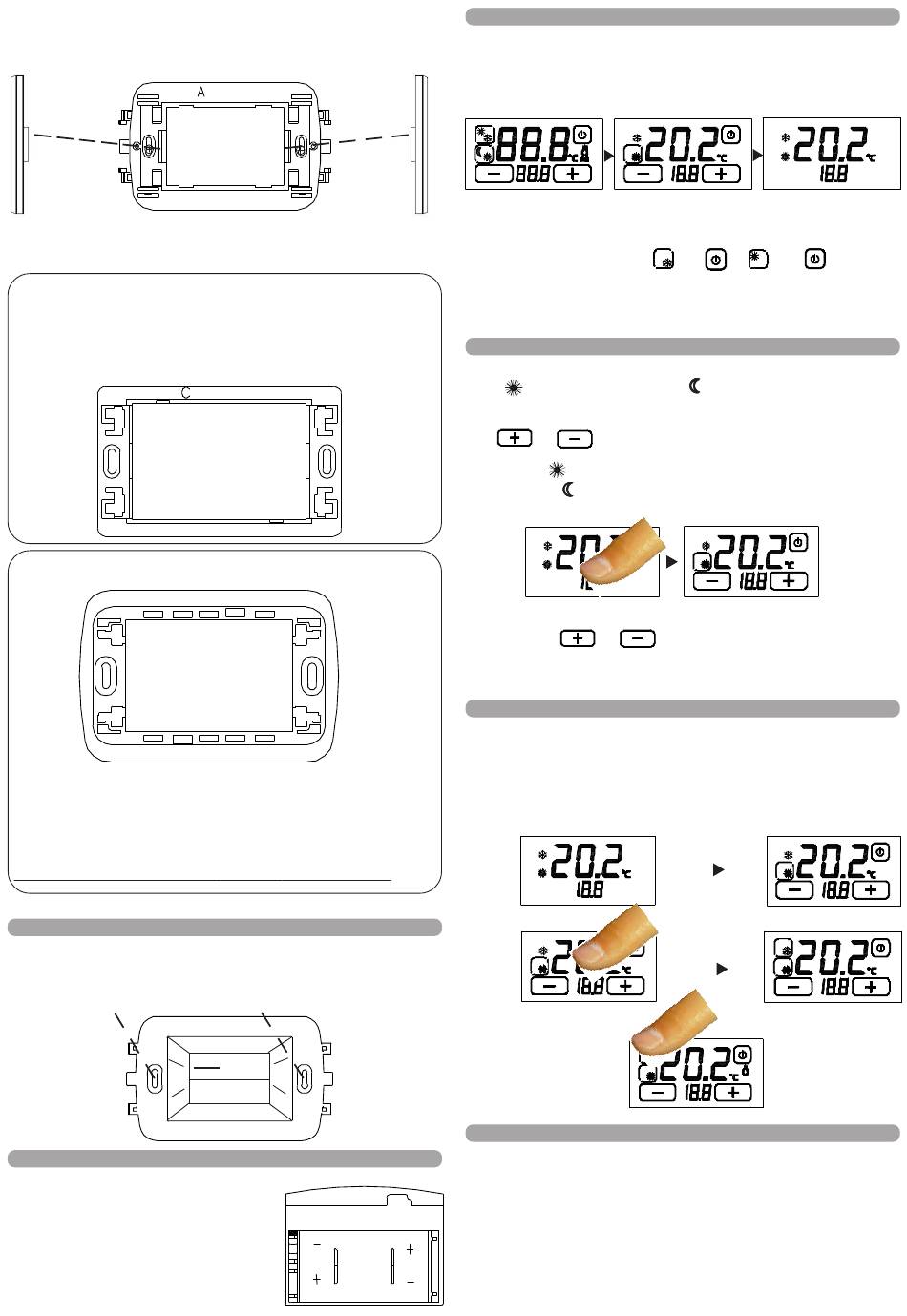

Geca Tecno Control T-Touch TE401 Manual page 2

N.B. If the thermostat must receive AVE Banquise or Noir, VIMAR Idea or
Rondò or BTICINO Matix switch plates, insert adequate slot fillerstrips
supplied (Pic. 7) in the appropriate side slots.
Pic.7
To complete the assembly of the thermostat, mount the desired switch plate.
BACKPLATE C BACKPLATE C BACKPLATE C
BACKPLATE C BACKPLATE C
*OPTIONAL
On request, the T-Touch thermostat can be fittedinto a three-module
backplate (Pic. 8) that permits mounting the GEWISS "Playbus" and
"Playbus young" domestic switch series.
BACKPLATE D BACKPLATE D
BACKPLATE D BACKPLATE D BACKPLATE D
D
Using this backplate the following domestic switch series can be mounted
(Pic. 9):
1• GEWISS Chorus One, Chorus Lux, Chorus Art, Chorus Flat and
Chorus Geo series
2• BTICINO Axolute series.
No modification is necessary to the backplate for their assembly.
INSTALLATION OF THE THERMOSTAT'S HOUSING INSTALLATION OF THE THERMOSTAT'S HOUSING INSTALLATION OF THE THERMOSTAT'S HOUSING INSTALLATION OF THE THERMOSTAT'S HOUSING INSTALLATION OF THE THERMOSTAT'S HOUSING
After choosing an adequate backplate fixit into the base of the thermostat's
housing. Fix the thermostat's housing into the three-module pattress box
utilizing the supplied screws. The thermostat's housing is now ready to receive
the thermostat module and then the required switch plate (Pic. 10).
Pic.10
POWER SOURCE POWER SOURCE POWER SOURCE POWER SOURCE POWER SOURCE
The thermostat is powered by two ordinary 1.5V
AA alkaline batteries that ensure its functioning
for at least two years (in STAND-BY mode). Insert
the batteries into the appropriate compartment
situated in the lower part of the module ensuring
that the polarity indicated on the plastic is
followed (Pic. 11).
Pic. 8
Pic. 9
Pic.11
SWITCHING ON/RESET SWITCHING ON/RESET SWITCHING ON/RESET
SWITCHING ON/RESET SWITCHING ON/RESET
After inserting the batteries and initiating the RESET function, the thermostat
carries out a control cycle switching on all segments of the display and
activating the charge for a few seconds (Pic. 12A). The PROGRAMMING
interface appears (Pic. 12B) and after a few seconds the thermostat positions
itself in STAND-BY ON (Pic. 12C).
Pic.12 Pic.12
A
The RESET function is necessary to activated the SUMMER / WINTER key
and then simultaneously press
To activate SUMMER / WINTER key press the display on TEMPERATURE
DETECTED for around 2 seconds. (Pic.14).
DAY & NIGHT MODE DAY & NIGHT MODE DAY & NIGHT MODE DAY & NIGHT MODE DAY & NIGHT MODE
The function DAY & NIGHT (Pic. 13B) allows to change with facility the
DAY " " temperature with NIGHT "
The degrees set are kept in memory up to following changes.
To increase or to decrease the degrees both in DAY and in NIGHT form press
keys or .
DAY MODE ( ) It is used during the day.
NIGHT MODE (
) it is used at night.
Pic. 13A
To increase or decrease the temperature DAY or NIGHT in the set mode
press the keys or
To change the operating mode, press the enabled key DAY or NIGHT.
During the STAND-BY ON phase the display will show the symbol of the set
mode with its memorized temperature.
SUMMER WINTER PROGRAMMING SUMMER WINTER PROGRAMMING SUMMER WINTER PROGRAMMING SUMMER WINTER PROGRAMMING SUMMER WINTER PROGRAMMING
If the thermostat is in STAND-BY ON (Pic.14A) touch the display to enter into
the PROGRAMMING interface (Pic.14B).
Press the display on TEMPERATURE DETECTED (Pic.14C) for 2 seconds,
to enable editing of the program SUMMER/WINTER.
Press the button that appears on the display high up and on the left (SUMMER/
WINTER PROGRAMME in Pic. 21) to modify the programme (Pic.14D).
Pic.14A
Pic.14C
ON/OFF FUNCTION ON/OFF FUNCTION ON/OFF FUNCTION ON/OFF FUNCTION ON/OFF FUNCTION
If the thermostat is in STAND-BY ON (Pic.15A) touch the display to enter into
the PROGRAMMING interface (Pic.15B).To switch off the thermostat keep
the ON/OFF button pressed that is high up and to the right on the display
(Pic. 21) for approximately two seconds. The thermostat goes into shutdown
phase (Pic. 15C) disenabling the operattion of the system and going into
STAND-BY OFF mode (Pic. 15D).To switch on the thermostat it is
firstnecessary to enable the ON/OFF button (Pic. 21) by touching the display
(Pic. 15C). Keeping the button pressed for approximately two seconds, the
thermostat switches on (Pic. 15E) and goes into PROGRAMMING mode
(Pic. 15B).
Pic.12
B C
.
and or and
" temperature.
.
Pic.14B
PROGRAMMING interface
SUMMER/WINTER
PROGRAMMING
Pic.14D
Pic. 13B
