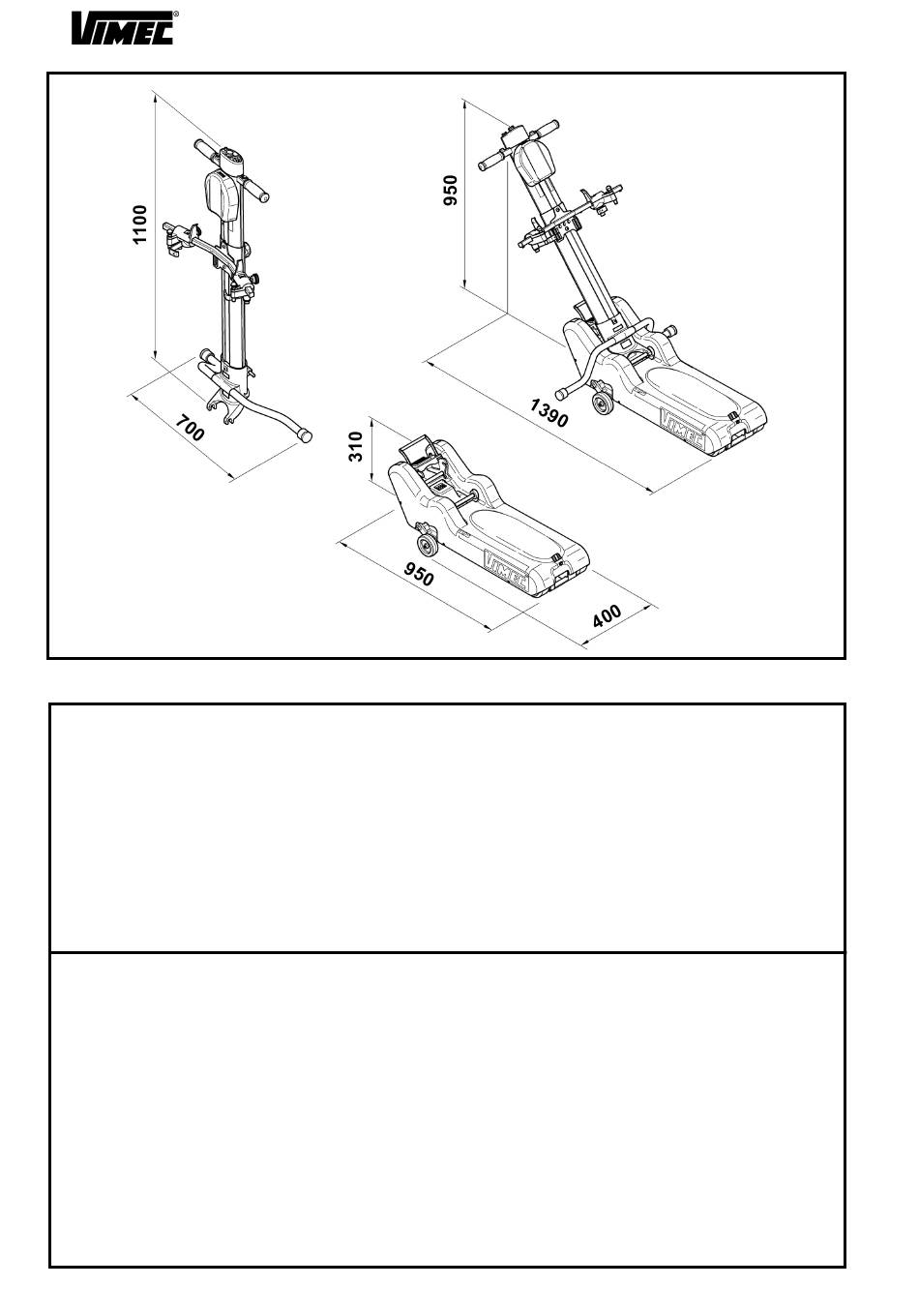

FIG. 7
5) PROVIDED AND NOT PROVIDED USE OF THE UNIT
5.1) Provided use
Track mobile stairclimber Mod. T09, has been designed for the transport of disabled persons on manual
wheelchair with big back wheels on staircases with the following features:
- Environment:
- Steps:
- Gradient:
- Step-riser height:
- Step nose radius:
- Attendant:
5.2) Not provided uses
Not provided uses
Use on staircases with gradient over 35°:
Use on steps with riser height over 180 mm:
Use on steps with riser less than 100 mm:
Utilization on steps with a fillet radius of stair edge higher than 20 mm:
Guide by a not suitable operator:
Transport of wheelchairs EN12184 not suitable A ÷ B
Transport of people or things not seated on the wheelchair
Utilization on the stair in presence of water, snow or ice:
Utilization on wet surfaces or in case of rain:
Use on staircases with not parallel steps:
WARNING: DO NOT CARRY OUT MODIFICATIONS FOR EVERY TYPE OF USE
Indoor/outdoor
Parallel, without coatings
Maximum 35° (Fig. 8/a)
Maximum 180 mm, min. 100 mm (Fig. 8/A)
From 0 to 20 mm (Fig. 8/R)
Always present and with the following characteri-
stics: a physically and mentally suitable grown-up
who knows he operating of the equipment and the
use a maintenance instructions.
Malfunctions
Instability, tracks skidding
Instability, tracks skidding
Tracks skidding
Tracks skidding
Instability
Instability, tracks skidding
Electric installation failure
Instability, lateral tilting
