Description Of Unit - vimec ROBY T09 Use And Maintenance

3) DESCRIPTION OF UNIT

3.1) Description

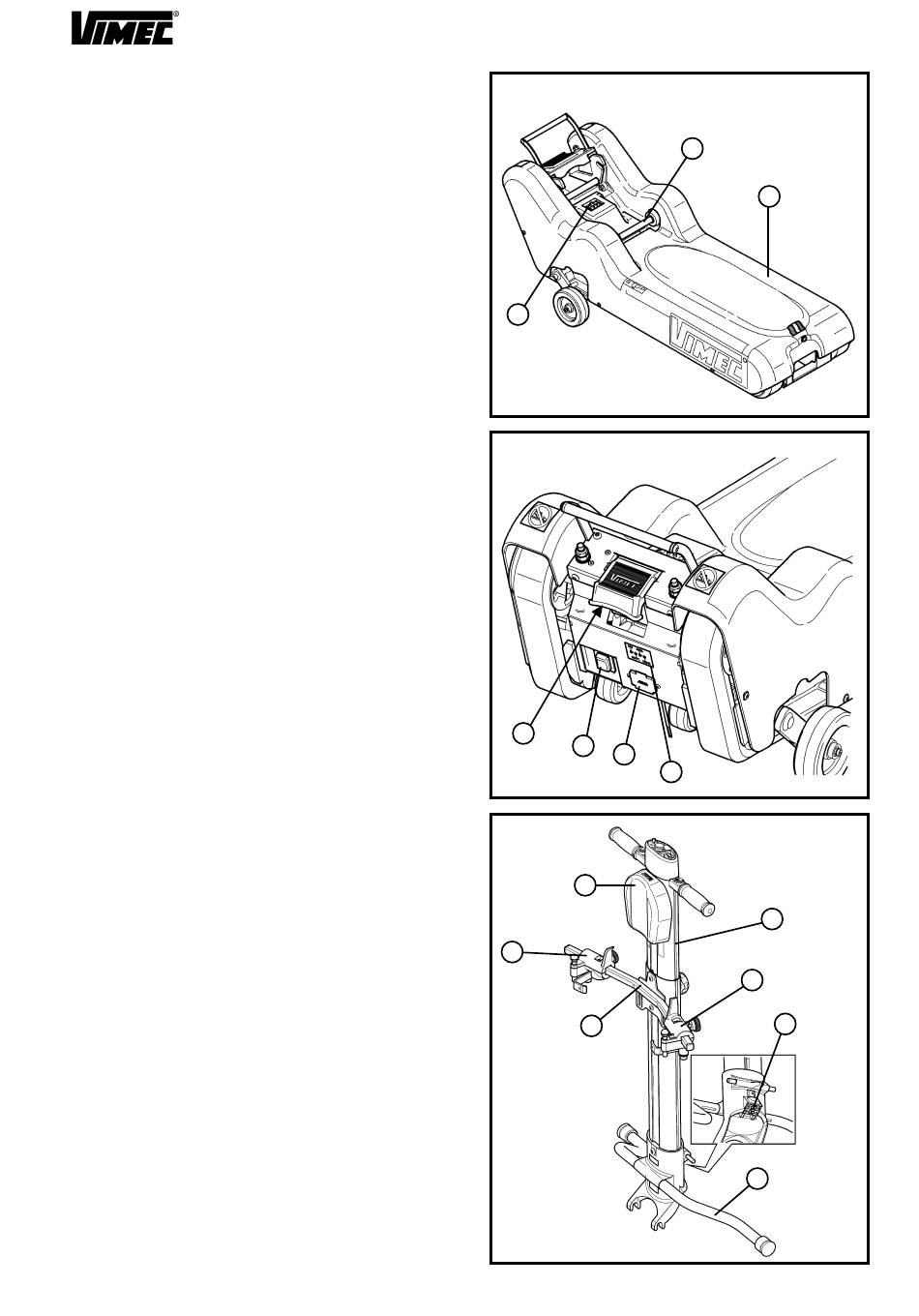

Chassis - Fig. 1/a
It is composed of:
- light alloy skeleton;
- plastic protections.
It contains:
· motor;
· transmission gears;
· tracks;
· wheels for the fast transfer on floor;
· electrical installation;
· battery;
· battery charger on machine.
On chassis control panel you can find the following:
- steering bar release lever (Fig. 2\a);
- plug for battery charger (Fig. 2\b);
- bipolar electrical connector for the steering bar (Fig.
1/c);
- pushbutton for base forward/backward control (Fig.
2/d);
- battery charge condition indicator led (Fig. 2/c).
Steering bar - Fig. 3/a
The steering bar has clamping and control functions of
the wheelchair either on stairs or on landings.
On the steering bar there are the main controls for the
track mobile stairclimber rail.
It contains:
- mechanical safety system of wheelchair hooking
(Fig. 3/c);
- clamping cross member of the wheelchair with adju-
stable lock in height (Fig. 3/d);
- bearing wheels cross member of the track mobile
stairclimber (Fig. 3/e);
- adjustable headrest (Fig. 3/b);
- bipolar electrical connector for the chassis (Fig. 3/f).
The control panel put between the two handles (Fig.
4/f) includes:
- forward/backward pushbuttons (Fig. 4\a);
- emergency stop (red head) (Fig. 4\b);
- gradient indicator (Fig. 4\c);
- battery discharge indicator (Fig. 4\d):
· Exausted battery
· Motor high temperature
· Motor jammed
- "ON/OFF" key (Fig. 4/e).
Battery charger on machine
Recharges the battery after track mobile stairclimber
use and it maintains the battery charge condition when
the unit is not used.
Technical data and the use and maintenance instruc-
tions are listed in the manual enclosed to the battery
it blinks;
it blinks with rapid
frequency;
i t b l i n k s w i t h a
double frequency
compared to motor
high temperature
one.

FIG. 1
c
FIG. 2
a
d
b
c
FIG. 3
b
c
d
7502048
b
a
a
c
f
e
