charger.
3.2) Main precautionary measures against mecha-
nical damages
Wheelchair clamping to the steering-bar
- Lock knobs clamping levers with return spring (Fig.
6\a).
- Handwheel of the wheelchair clamping cross member
with return spring (Fig. 6\c).
- Clamping handwheel (Fig. 6/b).
3.3) Main precautionary measures against electrical
damages
- Optical indicator of maximum overcoming gradient
(Fig. 4\c).
3.4) Warning and obligation plates
The unit has warning and obligation adhesive
plates:
- Fasten safety belts.
- Obligation of grasping the steering bar using both
hands during machine functioning.
- Do not leave the unit loaded.
- Details for the wheelchair loading.
3.5) Work position
In every operative phases the driver should be behind
the steering-bar holding firmly the handles (Fig. 4/f).
3.6) Components
- Chassis (Fig. 1\a).
- Steering-bar (Fig. 3\a).
- Charge cable (Fig. 5/a).
3.7) Technical standards
The unit complies with the following standards:
STANDARD 93/42/CEE
Concerning medical devices.
STANDARD 89/336
Electromagnetic compatibility as modified by Standard
CE 92/31.

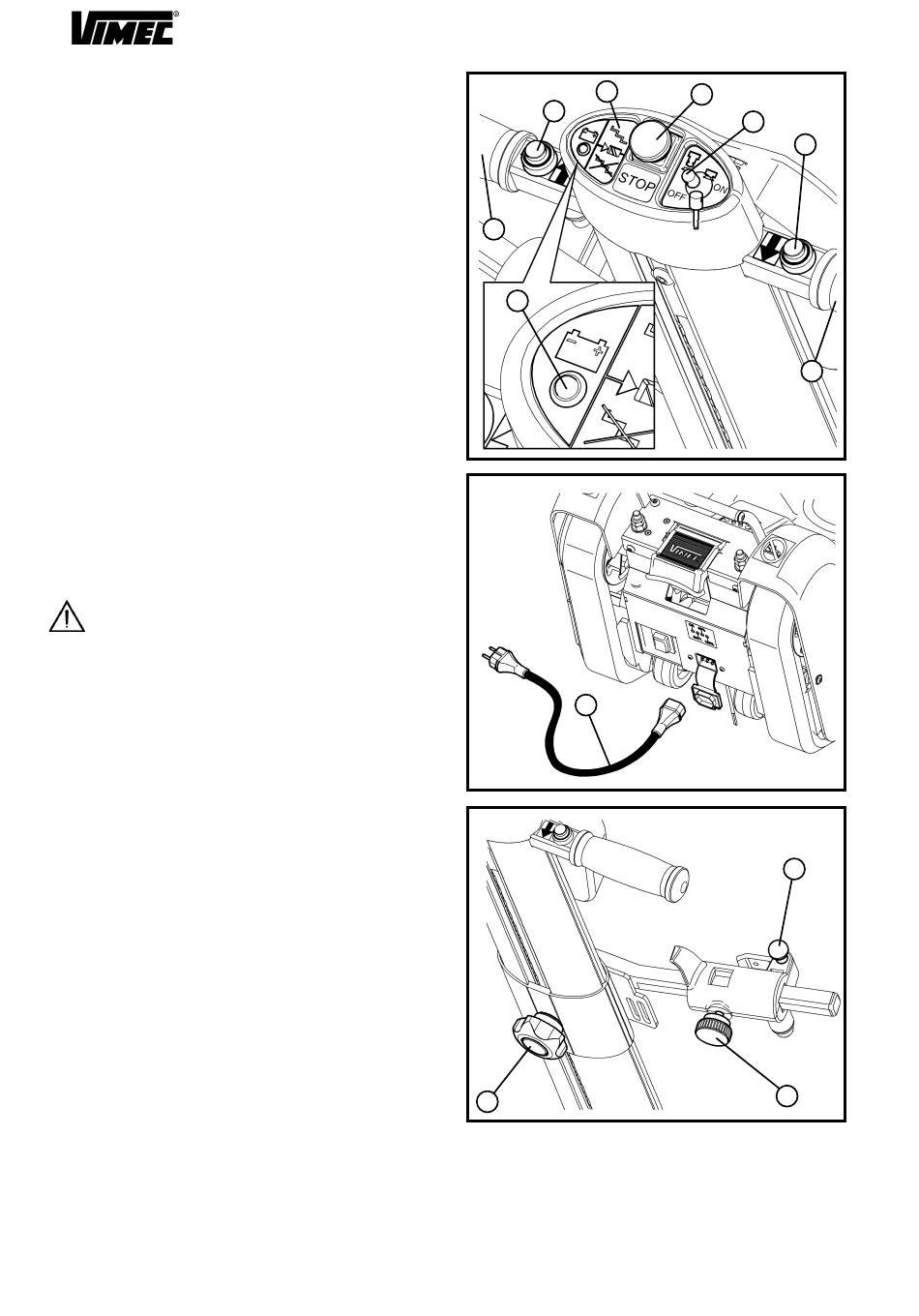

FIG. 4
