vimec ROBY T09 Use And Maintenance

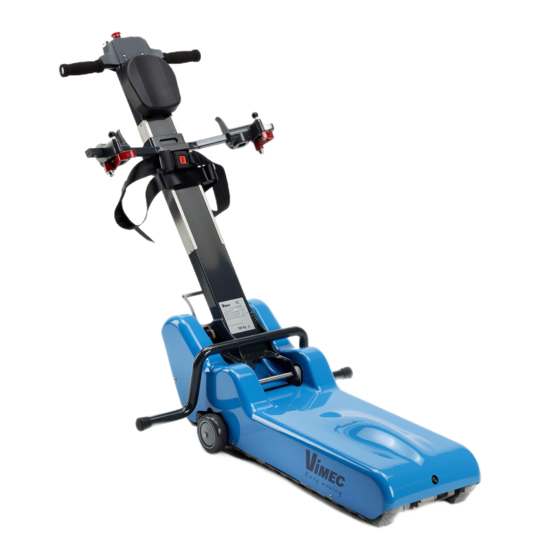

Track mobile stairclimber
Hide thumbs Also See for ROBY T09:

Advertisement

Table of Contents

Via Parri, 7 (I) - 42045 Luzzara (RE)
Tel.0522/970666 r.a.- Fax.0522/970919
Web site: www.vimec.biz
TRACK MOBILE
STAIRCLIMBER T09 "ROBY"
USE AND MAINTENANCE
Page 03 - 20
MANUAL CODE
7 5 1 2 1 0 7
DATE ____________ APPROVED ____________
10 - 10 - 2006
VIMEC reserves the right to make changes to its products at any time in response to technical evolution.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ROBY T09 and is the answer not in the manual?

Questions and answers

Related Manuals for vimec ROBY T09

Summary of Contents for vimec ROBY T09

  • Page 1 Page 03 - 20 MANUAL CODE 7 5 1 2 1 0 7 DATE ____________ APPROVED ____________ 10 - 10 - 2006 VIMEC reserves the right to make changes to its products at any time in response to technical evolution.
  • Page 2 VIMEC S.r.l. CE DECLARATION OF CONFORMITY The Manufacturer: Via Parri n. 7, 42045 Luzzara (R.E.) ITALY Tel. 0522/970666 r.a. Fax 0522/970919 declares on its own responsibility that the mobile Stairclimbers for the transport of person on wheelchair model: comply with the following European Directives: •...

  • Page 3: Table Of Contents

    7502048 USE AND MAINTENANCE GENERAL CONTENTS 1. Unit and manufacturer identification Page 4 2. Service Page 4 3. Description of unit Page 5 4. Technical data Page 7 5. Provided an not provided use Page 8 6. Transport Page 9 7.

  • Page 4: Unit And Manufacturer Identification

    7502048 1) UNIT AND MANUFACTURER IDENTIFICATION servoscale I - 42045 LUZZARA (RE) Via Parri, 7 - Tel. 0522/970666 - Fax. 0522/970918 Tipo/Type/Type/Typ/Tipo Matr./Num./Serial Nr/Fabrik. Nr/Matr N° _ _ _ Anno Fabbr./Produit en/Years/Bajahr/Año _ _ _ _ Port./Capac./Load/Tragfah./Carga util Kg 130 Alim./Alim./Power/Spe./Alim.

  • Page 5: Description Of Unit

    7502048 3) DESCRIPTION OF UNIT FIG. 1 3.1) Description Chassis - Fig. 1/a It is composed of: - light alloy skeleton; - plastic protections. It contains: · motor; · transmission gears; · tracks; · wheels for the fast transfer on floor; ·...
  • Page 6 7502048 charger. FIG. 4 3.2) Main precautionary measures against mecha- nical damages Wheelchair clamping to the steering-bar - Lock knobs clamping levers with return spring (Fig. 6\a). - Handwheel of the wheelchair clamping cross member with return spring (Fig. 6\c). - Clamping handwheel (Fig.

  • Page 7: Technical Data

    7502048 4) TECHNICAL DATA - Traction gear Irreversible Worm Screw reduction gear Ratio 1/50 Toothed belt with rubber tracks HTD-8M Driving pulley z=40 Backstand mechanical system Idle wheels for the transfer on floor n° 4 wheels on ball bearings - Performances Running direction Forward/Backward Speed (upwards/downwards)

  • Page 8: Provided An Not Provided Use

    7502048 FIG. 7 5) PROVIDED AND NOT PROVIDED USE OF THE UNIT 5.1) Provided use Track mobile stairclimber Mod. T09, has been designed for the transport of disabled persons on manual wheelchair with big back wheels on staircases with the following features: - Environment: Indoor/outdoor - Steps:...

  • Page 9: Transport

    7502048 FIG. 8 R Max 20 mm Max 35° 6) TRANSPORT FIG. 9 6.1) Handling The transport of the dismantled unit can be manual for short passages or for load/unload operations. The chassis shall be transported by using the handles on the extremities (Fig.

  • Page 10: Setting At Work And Daily Use

    7502048 FIG. 11 7.3) Preliminary checks Checks to carry out before the setting at work. Competence: OS - specialized operator charged by the manufacturer. CHECKED MACHINE MEMBER: RESULT OF THE CHECK Steering-bar: - Safety clamping of the steering-bar (Fig. 11): - Knobs (Fig.
  • Page 11 7502048 8.2) Steering-bar release c) Holding the steering bar (Fig. 13/a), exert a light pressure upwards by using the foot (Fig. 13/c) on To release the steering bar (Fig. 13/a) it’s required to the shell (Fig. 13/b) in order to lift it. lift the red-coloured safety shell (Fig.
  • Page 12 Red indicator: excessive gradient - Press the push-button: the motion controls should be off-line. - Reset the push-button pulling it upwards. If the emergengy STOP does not work, DO NOT USE the track mobile stairclimber! Call Vimec skilled staff immediately.
  • Page 13 7502048 8.7) Headrest adjustment FIG. 20 To adjust the headrest (Fig. 20/a): it’s required to remo- ve the headrest and adjust it using two Velcro stripes (Fig. 20/b). WARNING: THE PERSON THAT USES THE TRACK MOBILE STAIRCLIMBER DETERMINES THE STABILITY OF THE UNIT. TO AVOID UNSTA- BLE CONDITIONS PLEASE FOLLOW THE POINTS BELOW.
  • Page 14 7502048 - Stair with one flight: FIG. 23 Locate at the center of the staircase, with the ma- chine placed in axis to the staircase. - Stair with more flights: place the unit towards the stair well edge, taking care of being in axis with the staircase (see 8.8.1a).

  • Page 15: Maintenance

    Reset the push button pulling it upwards. FIG. 27 If the result of every check is not positive, apply to VIMEC skilled staff. See chapter 2. 9.1) Periodic cleaning of the unit Competence: O - Trained operator Frequency: Quarterly...

  • Page 16: Vibrations - Aerial Noise Of Unit

    Discharged battery Safety block at a charge percentage of 10% If the malfunction persists, apply to VIMEC skilled staff. 11) IN FORMATION ABOUT UNIT PARTS AND MA- 10) VIBRATIONS AND AERIAL NOISE OF THE TE RIALS ELIMINATION...

  • Page 17: Short Instructions To Correctly Carry Out The Rise And Descent

    7502048 12) SHORT INSTRUCTIONS TO CORRECTLY CAR- FIG. 29 RY OUT THE RISE AND DESCENT OPERATIONS WITH THE MOBILE TRACK STAIR CLIMBER 12.1) Descent phase: Once the wheelchair is properly hooked (the green lighted must be lighted up on the panel), by a soft pressure downwards (Fig.
  • Page 18 7502048 12.2) Rise FIG. 32 phase: Remember that moving the machine on the plane it’s required to exert a soft pressure downwards on the steering bar (Fig. 31/b), approach the machine to the first stair of the flight (Fig. 31/a) taking care of keeping the machine in axis to the staircase.

  • Page 19: Reversibility Of Safety Couplings

    7502048 13) REVERSIBILITY OF SAFETY COUPLINGS NOTE: ensure that the piston (Fig. 38/c) is placed under the red hook (Fig. 38/e) so that it can’t be In business there are not only wheelchairs equipped released from the wheelchair (Fig. 38/d); with thrust handles (Fig.
  • Page 20 7502048...
  • Page 21 7201109 CATALOGO RICAMBI - PARTS CATALOGUE ERSATZTEILKATALOG - CATáLOGO DE REPUESTOS CATALOGUE DES PIECES DE RECHANGE - CATáLOGO DE PEÇAS SOBRASSA- LENTES - KATALOG CZĘŚCI ZAMIENNYCH - КАТАЛОГ ЗАПЧАСТЕЙ INDICE DEL CATALOGO - CATALOGUE INDEX - INHALTSVERZEICHNIS - íNDICE DEL CATáLOGO 1.
