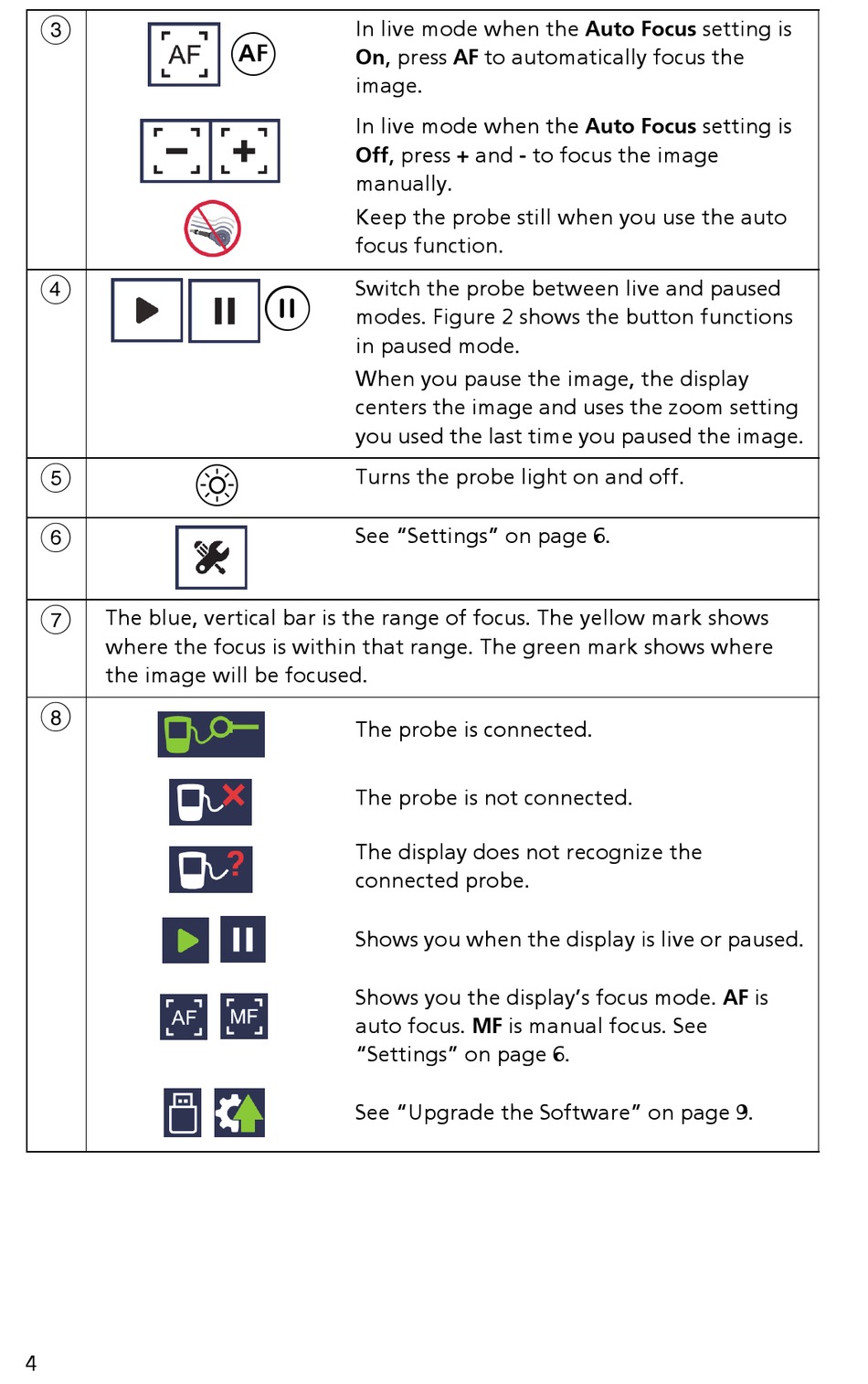

The blue, vertical bar is the range of focus. The yellow mark shows
where the focus is within that range. The green mark shows where
the image will be focused.

4
In live mode when the Auto Focus setting is

On, press AF to automatically focus the
image.
In live mode when the Auto Focus setting is
Off, press + and - to focus the image
manually.
Keep the probe still when you use the auto
focus function.
Switch the probe between live and paused

modes. Figure 2 shows the button functions
in paused mode.
When you pause the image, the display
centers the image and uses the zoom setting
you used the last time you paused the image.
 Turns the probe light on and off.
See "Settings" on page 6.
The probe is connected.
The probe is not connected.
The display does not recognize the
connected probe.
Shows you when the display is live or paused.
Shows you the display's focus mode. AF is
auto focus. MF is manual focus. See
"Settings" on page 6.
See "Upgrade the Software" on page 9.
