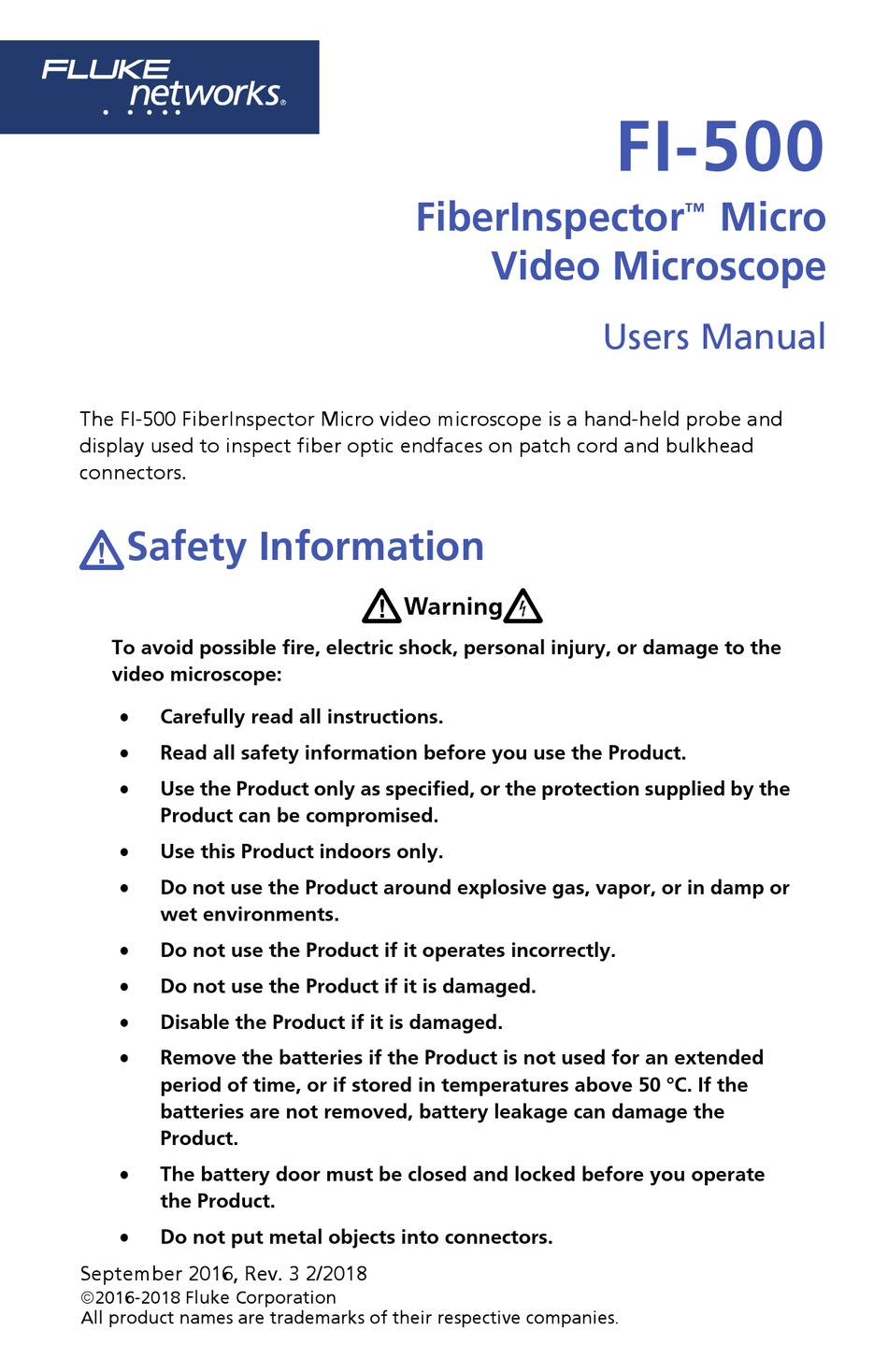

The FI-500 FiberInspector Micro video microscope is a hand-held probe and
display used to inspect fiber optic endfaces on patch cord and bulkhead
connectors.
WSafety Information
To avoid possible fire, electric shock, personal injury, or damage to the
video microscope:
Carefully read all instructions.
Read all safety information before you use the Product.
Use the Product only as specified, or the protection supplied by the
Product can be compromised.
Use this Product indoors only.
Do not use the Product around explosive gas, vapor, or in damp or
wet environments.
Do not use the Product if it operates incorrectly.
Do not use the Product if it is damaged.
Disable the Product if it is damaged.
Remove the batteries if the Product is not used for an extended
period of time, or if stored in temperatures above 50 °C. If the
batteries are not removed, battery leakage can damage the
Product.
The battery door must be closed and locked before you operate
the Product.
Do not put metal objects into connectors.
September 2016, Rev. 3 2/2018
2016-2018 Fluke Corporation
All product names are trademarks of their respective companies.
FiberInspector
Video Microscope
W
X
Warning
FI-500
Micro
™
Users Manual
Advertisement
Table of Contents
Related Manuals for Fluke FiberInspector Micro
Summary of Contents for Fluke FiberInspector Micro
- Page 1 FiberInspector Micro ™ Video Microscope Users Manual The FI-500 FiberInspector Micro video microscope is a hand-held probe and display used to inspect fiber optic endfaces on patch cord and bulkhead connectors. WSafety Information Warning To avoid possible fire, electric shock, personal injury, or damage to the video microscope: ...
-
Page 2: Features And Use
Safety and Compliance Symbols Warning or Caution: Risk of damage to or destruction of equipment or software. See the user documentation. Warning: Risk of electrical shock. Conforms to relevant European Union directives Conforms to relevant Australian standards 40 year Environment Friendly Use Period (EFUP) under China Regulation - ... - Page 3 SC (U25) LC (U125) Cap holder AM00.EPS Figure 1. Features and Use Screw an adapter tip onto the fiber probe to match the connection you will inspect. Tips with blue rings are for PC and UPC connectors. Tips with green rings are for APC connectors. Caution To avoid damage to the probe, use only tips specified for the FI-500.
- Page 4 In live mode when the Auto Focus setting is On, press AF to automatically focus the image. In live mode when the Auto Focus setting is Off, press + and - to focus the image manually. Keep the probe still when you use the auto focus function.
- Page 5 Live image Focus automatically or manually. See Auto Focus under "Settings". Zoom Paused image Magnify and move the image. Horizontal Vertical AM04.EPS Figure 2. Image Controls View APC Endfaces Probe tips for APC (angled physical contact) connectors have a green ring (Figure 3).
- Page 6 Refer to Figure 4. Display and probe software versions: If a software update is available, you can download it from the Fluke Networks website. See "Upgrade the Software". Power Down: The display turns off after the selected period of inactivity.
-
Page 7: Charge The Batteries
Charge the Batteries Warning To avoid possible fire, electric shock, personal injury, damage to the video microscope, or incorrect operation: Use only the ac adapter/charger provided to power the display and charge the batteries. Disconnect the battery charger and move the Product or batteries to a cool, non-flammable location if the rechargeable batteries become hot (>50 °C, >122 °F) during the charge period. -
Page 8: Maintenance
Magnetic Strap AM03.EPS Figure 5. Magnetic Strap Maintenance Warning To prevent possible electrical shock, fire, or personal injury: Do not operate the Product with covers removed or the case open. Hazardous voltage exposure is possible. Use only specified replacement parts. ... - Page 9 AM01.EPS Figure 6. Replace the Batteries Upgrade the Software If new software is available, you can download it from the Fluke Networks website at no charge. Figure 7 shows how to install new software in the display and probe. ...
- Page 10 When the upgrade is completed, press Exit to restart the display. AM06.EPS Figure 7. Upgrade the Software AM07.EPS Figure 8. Software Update Screen with the USB Drive Connected Get Service Contact Fluke Networks for information on authorized Fluke Networks service centers.
-
Page 11: Register Your Product
Register Your Product Registering your product with Fluke Networks gives you access to valuable information on product updates, troubleshooting tips, and other support services. To register, fill out the online registration form on the Fluke Networks website. Accessories For a complete list of fiber test equipment and accessories, visit the Fluke Networks website at www.flukenetworks.com... -
Page 12: Specifications
(2) this device must accept any interference received, including interference that may cause undesired operation. (15.19). Changes or modifications not expressly approved by Fluke could void the user's authority to operate the equipment. (15.21) Emissions which exceed the levels required by CISPR 11 can occur when the Product is connected to a test object. - Page 13 Display 12 Frames per second Rechargeable NiMH, 2 x 1.2 V, 2200 mAh Battery type* 3 hours of continuous probe use Battery life* 6 hours of typical probe use 4 hours minimum Charging time and 50 °F to 113 °F (10 °C to 45 °C) temperature Input: 100 to 240 VAC ±10%, 50/60Hz Power adapter...
- Page 14 The warranty extends only to the original buyer or end user customer of a Fluke Networks authorized reseller, and does not apply to any product which, in Fluke Networks’ opinion, has been misused, abused, altered, neglected, contaminated, or damaged by accident or abnormal conditions of operation or handling.
