Fluke FI-500 FiberInspector Micro User Manual

Video microscope
Hide thumbs Also See for FI-500 FiberInspector Micro:
Table of Contents

Advertisement

Quick Links

1.800.561.8187

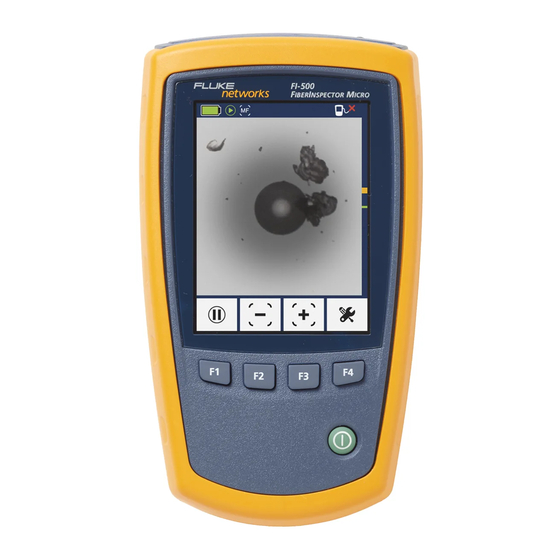

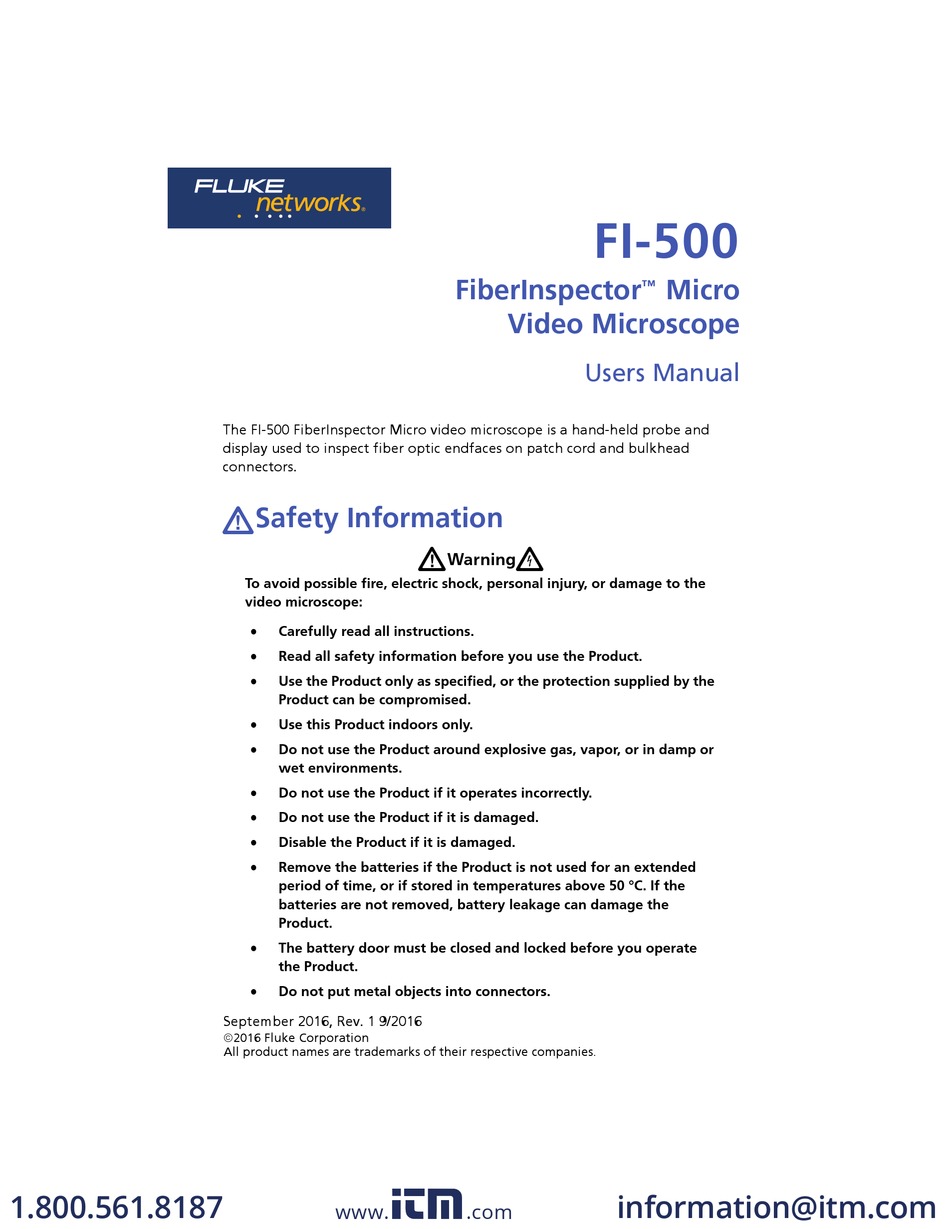

The FI-500 FiberInspector Micro video microscope is a hand-held probe and
display used to inspect fiber optic endfaces on patch cord and bulkhead
connectors.
WSafety Information
To avoid possible fire, electric shock, personal injury, or damage to the
video microscope:
Carefully read all instructions.
Read all safety information before you use the Product.
Use the Product only as specified, or the protection supplied by the
Product can be compromised.
Use this Product indoors only.
Do not use the Product around explosive gas, vapor, or in damp or
wet environments.
Do not use the Product if it operates incorrectly.
Do not use the Product if it is damaged.
Disable the Product if it is damaged.
Remove the batteries if the Product is not used for an extended
period of time, or if stored in temperatures above 50 °C. If the
batteries are not removed, battery leakage can damage the
Product.
The battery door must be closed and locked before you operate
the Product.
Do not put metal objects into connectors.
September 2016, Rev. 1 9/2016
2016 Fluke Corporation
All product names are trademarks of their respective companies.
www.
FI-500
FiberInspector
Video Microscope
Users Manual
W
X
Warning
.com
Micro
™
information@itm.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FI-500 FiberInspector Micro and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fluke FI-500 FiberInspector Micro

Summary of Contents for Fluke FI-500 FiberInspector Micro

  • Page 1 FiberInspector Micro ™ Video Microscope Users Manual The FI-500 FiberInspector Micro video microscope is a hand-held probe and display used to inspect fiber optic endfaces on patch cord and bulkhead connectors. WSafety Information Warning To avoid possible fire, electric shock, personal injury, or damage to the video microscope: ...

  • Page 2: Features And Use

    Safety and Compliance Symbols Warning or Caution: Risk of damage to or destruction of equipment or software.  See the user documentation. Warning: Risk of electrical shock. P Conforms to relevant European Union directives  Conforms to relevant Australian standards ...
  • Page 3 SC (U25) LC (U125) Cap holder AM00.EPS Figure 1. Features and Use  Screw an adapter tip onto the fiber probe to match the connection you will inspect. Tips with blue rings are for PC and UPC connectors. Tips with green rings are for APC connectors. Caution To avoid damage to the probe, use only tips specified for the FI-500.
  • Page 4 In live mode when the Auto Focus setting is   On, press AF to automatically focus the image. In live mode when the Auto Focus setting is Off, press + and - to focus the image manually.  Keep the probe still when you use the auto focus function.
  • Page 5 Live image Focus automatically or manually. See Auto Focus under "Settings". Zoom Paused image Magnify and move the image. Horizontal Vertical AM04.EPS Figure 2. Image Controls View APC Endfaces Probe tips for APC (angled physical contact) connectors have a green ring (Figure 3).
  • Page 6 Refer to Figure 4.  Display and probe software versions: If a software update is available, you can download it from the Fluke Networks website. See "Upgrade the Software".  Power Down: The display turns off after the selected period of inactivity.

  • Page 7: Charge The Batteries

    Charge the Batteries Warning To avoid possible fire, electric shock, personal injury, damage to the video microscope, or incorrect operation:  Use only the ac adapter/charger provided to power the display and charge the batteries.  Disconnect the battery charger and move the Product or batteries to a cool, non-flammable location if the rechargeable batteries become hot (>50 °C, >122 °F) during the charge period.

  • Page 8: Maintenance

    7. Figure 5 shows how to remove and install the batteries. Rechargeable NiMH, 1.2 V, 2200 mAh* * Fluke Networks recommends Gold Peak GH230AAHC batteries. Use only NiMH batteries. Do not use other types of batteries. AM01.EPS Figure 5. Replace the Batteries 1.800.561.8187...

  • Page 9: Upgrade The Software

    Upgrade the Software If new software is available, you can download it from the Fluke Networks website at no charge. Figure 6 shows how to install new software in the display and probe. Refer to Figure 6.  Download the upgrade file from the Fluke Networks website to the root folder of a USB drive.

  • Page 10: Register Your Product

    Figure 7. Software Update Screen with the USB Drive Connected Register Your Product Registering your product with Fluke Networks gives you access to valuable information on product updates, troubleshooting tips, and other support services. To register, fill out the online registration form on the Fluke Networks website. 1.800.561.8187 information@itm.com www.

  • Page 11: Open Source Software

    This product uses freeRTOS and FatFS software. The software license statements and files that contain the binary and source code for the open source software are on the CD supplied with the product and on the Fluke Networks website. For more Specifications General Specifications Operating: 32 °F to 122 °F (0 °C to +50 °C)
  • Page 12 Display 12 Frames per second Rechargeable NiMH, 2 x 1.2 V, 2200 mAh Battery type* 3 hours of continuous probe use Battery life* 6 hours of typical probe use 4 hours minimum Charging time and temperature 50 °F to 113 °F (10 °C to 45 °C) Input: 100 to 240 VAC ±10%, 50/60Hz Power adapter Output: 6 VDC, 3 A maximum...
