Summary of Contents for Digitus DA-70857

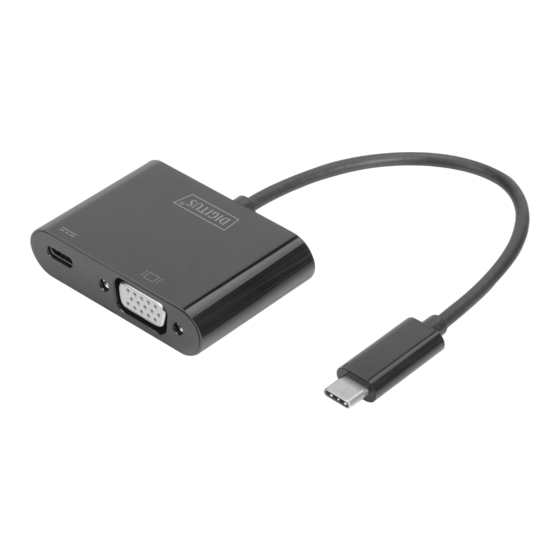

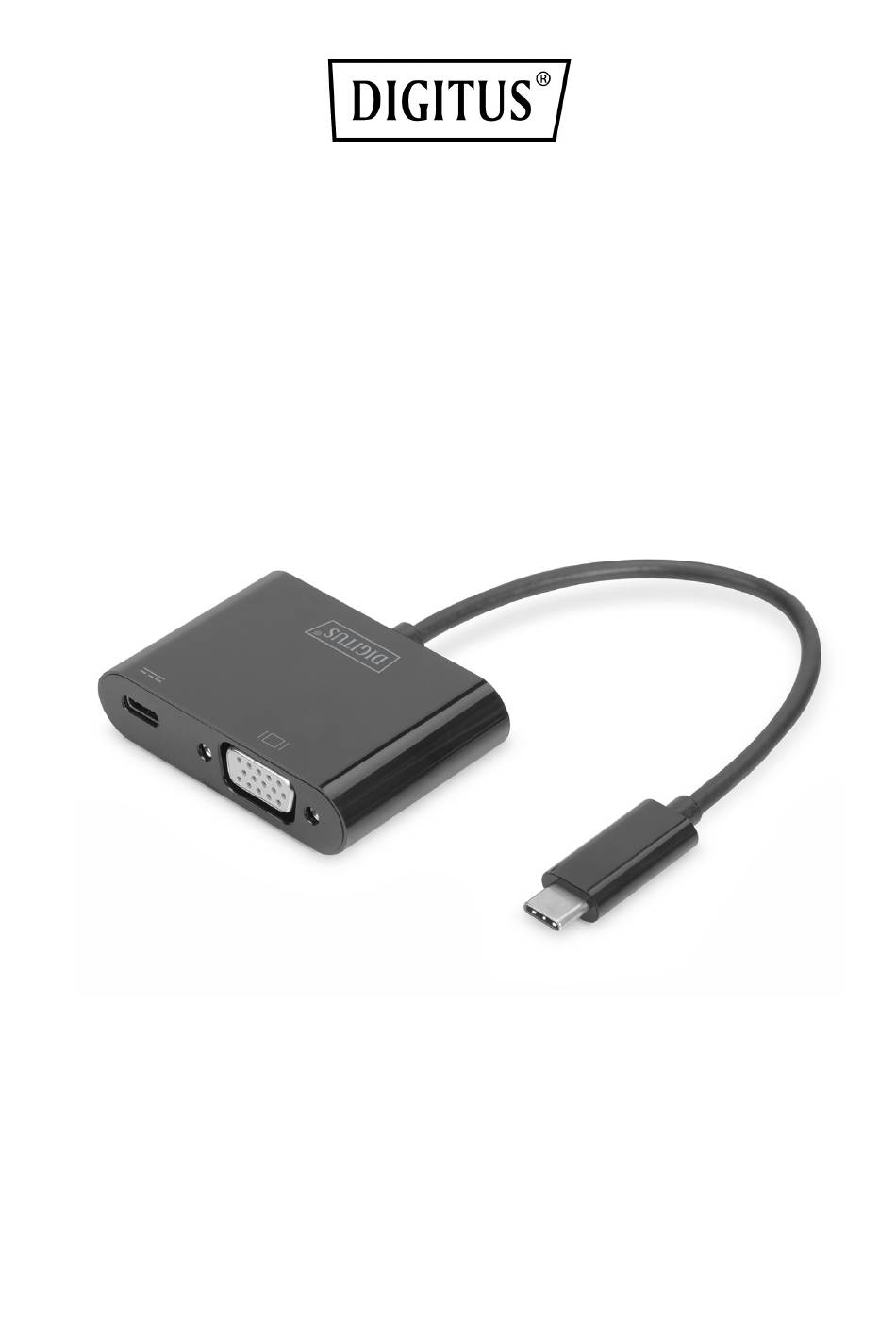

- Page 1 USB Type-C™ VGA graphics adapter + USB-C™ (PD) User Manual DA-70857...
- Page 2 1.0 INTRODUCTION The USB Type-C™ VGA graphics adapter allows you to connect a TV set, monitor or projector to a USB-C™ device. The highest possible resolution is Full HD (1080p). In addition, it has another USB-C™ port with Power Delivery (PD) 2.0 functionality to power your mobile device while using ®...
- Page 3 3.0 SPECIFICATIONS Input/Output Connector Input 1x USB-C™ plug 1x USB-C™ socket for charging (PD) Output 1x VGA socket Resolutions Resolutions up to 1920x1200p/60Hz, FullHD Physical Weight 29.2g Size(L-W-H) 58 x 40 x 15 (mm) Environmental Operating Temperature 0°C to +45°C Operating Humidity 10% to 85 % RH (no condensation) Storage Temperature...
- Page 4 Note: When connecting this product to Chromebook, the VGA video signal may not appear on the screen of the VGA monitor under certain resolutions. This problem is caused by the incompatibility of the Chromebook system, not by the product itself. 6.0 CONNECTION DIAGRAM Type-C™...
